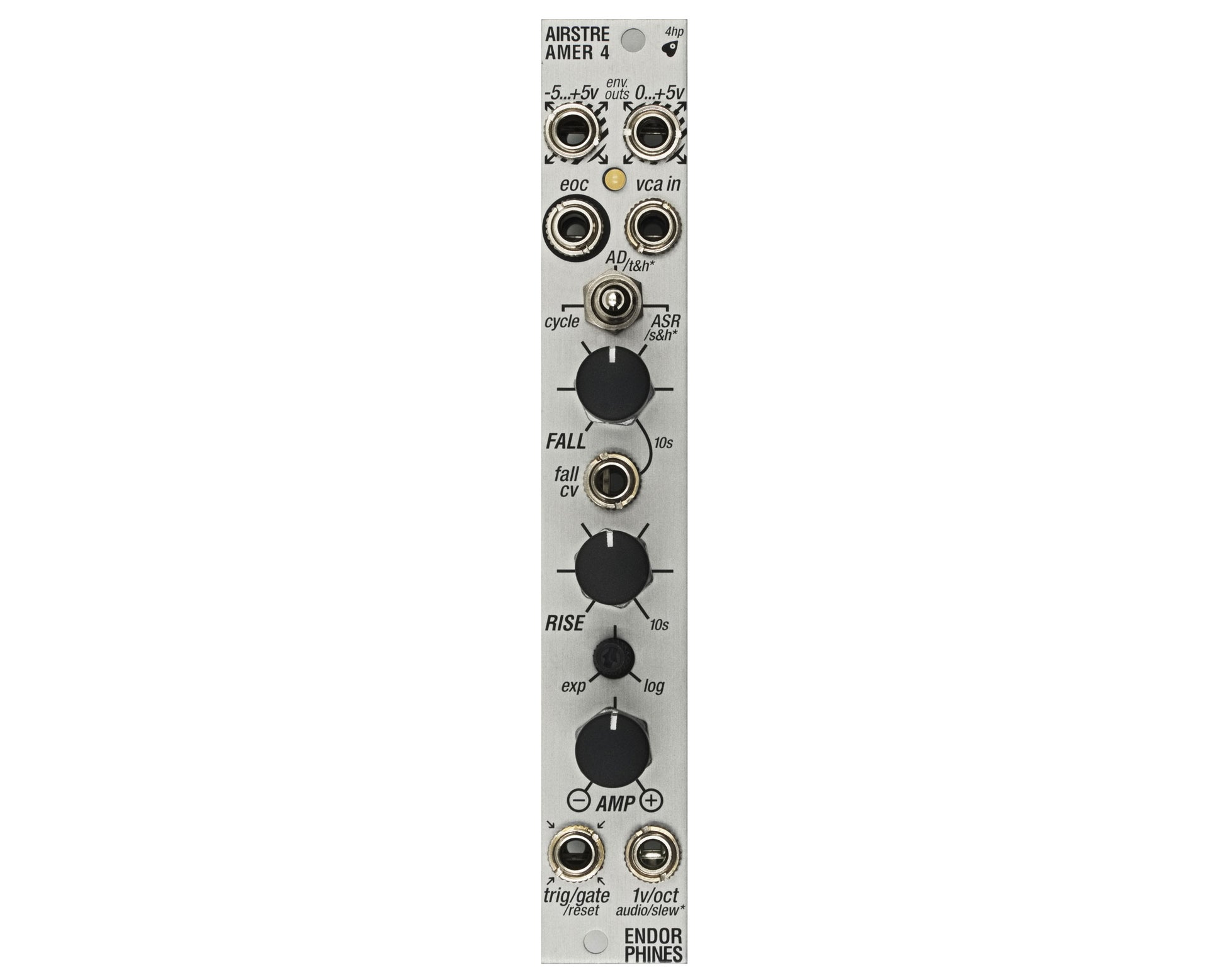

Endorphin.es Airstreamer 4 - Silver

Ultra Slim Envelope Generator with Looping, ASR and AD Modes.

• CV control over fall (decay / release)

• Continuously variable shape over both slopes without stretching the slope’s duration in time.

• Low aliasing CV generation, 224 kHz sample rate.

• 1 v/oct input, bipolar and unipolar outputs, end of cycle output.

• Audio rate oscillation in cycle mode allows you to utilize it as an oscillator.

• Polarizer knob with additional VCA input scales the envelope and inverts it when CV goes to negative voltages, allowing for compact sidechain envelope solution without the need for external mixers / inverts / offset generators.

• Slew limiter, S&H, T&H processing for external CV sources

Power consumption:

• 60 mA +12V

• 15 mA -12V

• 0 mA 5V

Dimensions:

• 4 HP

• 26 mm deep with power ribbon cable connected

Product Specs

• Item Number: 23384
• Make: Endorphin.es
• Model: Airstreamer 4 - Silver
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Attenuator Envelope Generator Function Generator Polarizer Ring Modulator Sample and Hold VCA
• Made In: Spain
• MPN: 23384
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 4 HP 26 mm deep
• Power: 60 mA +12V 14 mA -12V ? mA 5V
