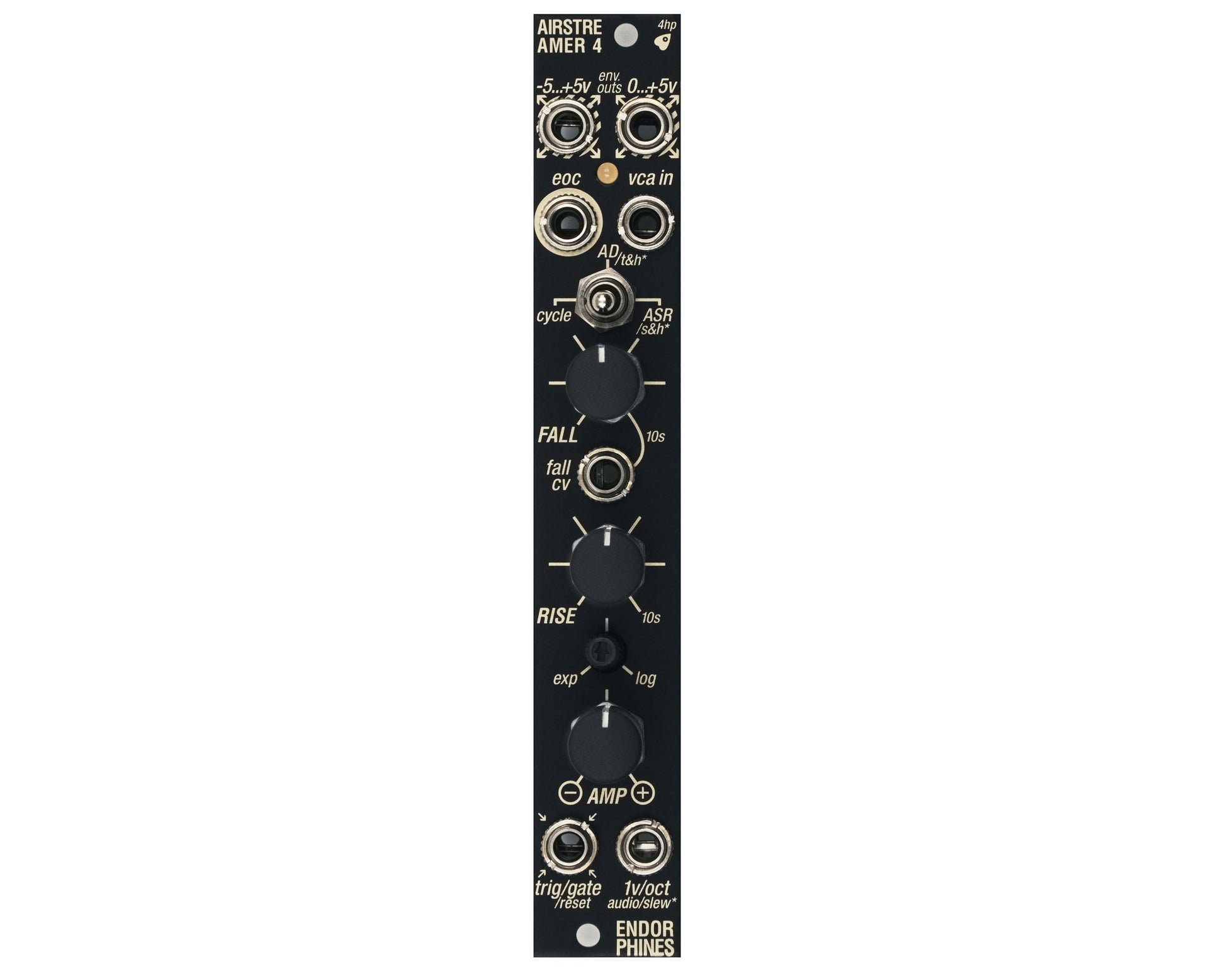

Endorphin.es Airstreamer 4 - Black

Ultra Slim Envelope Generator with Looping, ASR and AD Modes.

• CV control over fall (decay / release)
• Continuously variable shape over both slopes without stretching the slope’s duration in time.
• Low aliasing CV generation, 224 kHz sample rate.
• 1 v/oct input, bipolar and unipolar outputs, end of cycle output.
• Audio rate oscillation in cycle mode allows you to utilize it as an oscillator.
• Polarizer knob with additional VCA input scales the envelope and inverts it when CV goes to negative voltages, allowing for compact sidechain envelope solution without the need for external mixers / inverts / offset generators.
• Slew limiter, S&H, T&H processing for external CV sources

Video: https://youtu.be/MvkTR5zRXJ0

Product Specs

• Item Number: 23383
• Make: Endorphin.es
• Model: Airstreamer 4 - Black
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Attenuator Envelope Generator Function Generator Polarizer Sample and Hold Slew Limiter VCA
• Made In: Spain
• MPN: E-AS4-B
• UPC: 780627162922
• EAN: 0780627162922
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 4 HP 26 mm deep
• Power: 60 mA +12V 14 mA -12V ? mA 5V
