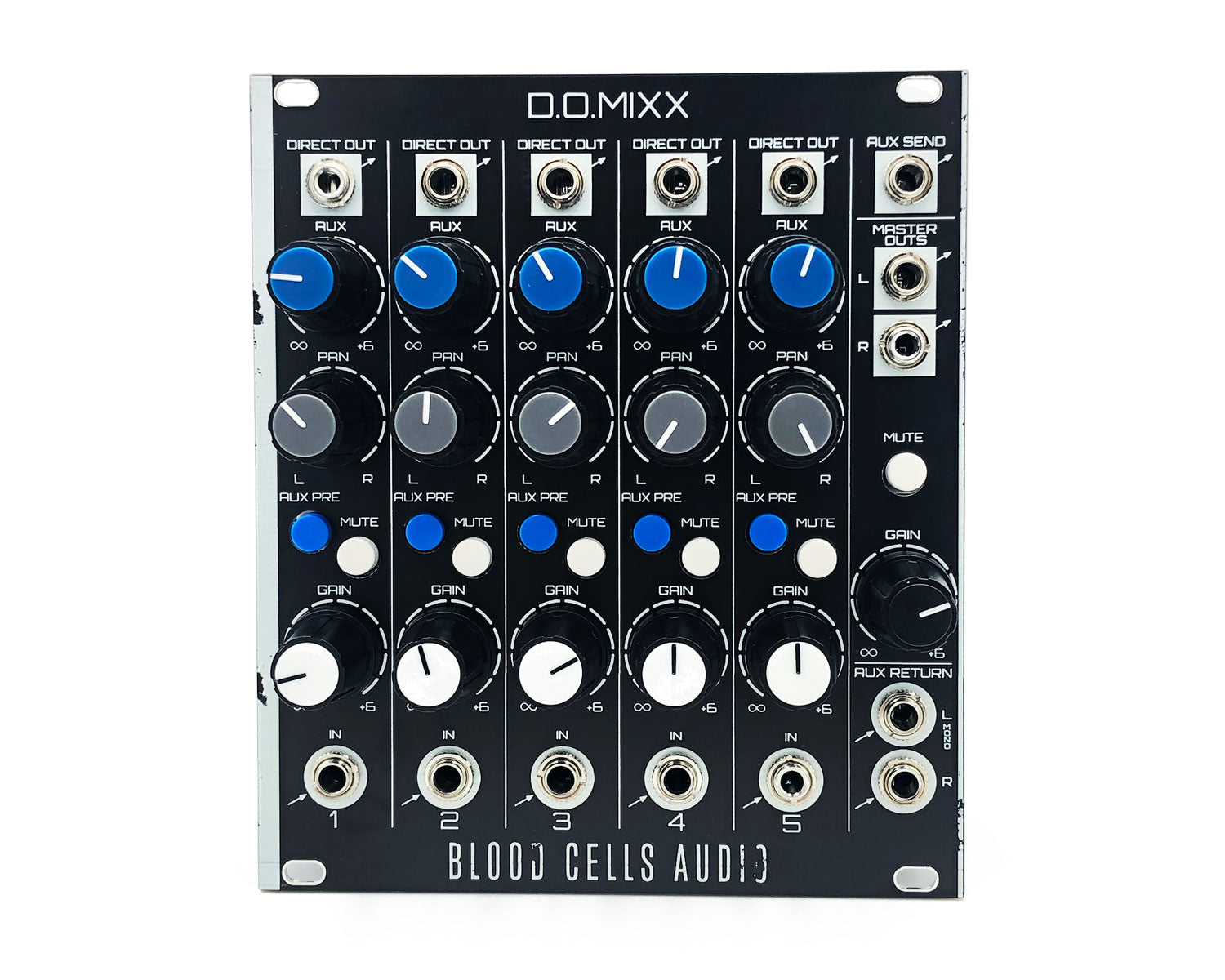

The Blood Cells Audio D.O.MIXX is a 22HP 5 channel mixer module that offers fantastic quality control at the end of your system, ready to print or further process your music.
Each channel has a gain knob with loads of headroom, up to +6dB, as well as click-less mute buttons, perfect for performing and balancing your mix.
The D.O.MIXX offers a panning control on each channel for optimising the stereo field before hitting the output section, and for further processing in your DAW or other recording means, each channel supplies a direct output.
On top of this, the D.O.MIXX provides per-channel aux send knobs with control over whether a channel is pre or post gain, sending a mono output and accepting either a mono or stereo return signal. The master section offers a stereo pair of output jacks with the same gain and click-less muting found throughout the unit, giving it a uniform and intelligent design throughout.
The D.O.MIXX delivers an abundance of channels and features to take care of all your modular mixing needs.
Features:
- Five-Channel Stereo Mixer
- Low-noise analog signal path
- Click-less muting
- 5 inputs
- 5 direct outputs
- Channel gain, pan, and aux send knobs
- Channel mute and aux pre buttons
- Stereo master output
- Master gain knob and mute button
- Aux mono send and mono/stereo return
- AC-coupled
Video: https://youtu.be/_4qx_2QUa3Q
Product Specs
- Item Number: 23378
- Make: Blood Cells Audio
- Model: D.O.MIXX
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Mixer Multiple
- Made In: United States
- MPN: D.O.MIXX
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 22 HP 33 mm deep
- Power: 170 mA +12V 170 mA -12V 0 mA 5V
