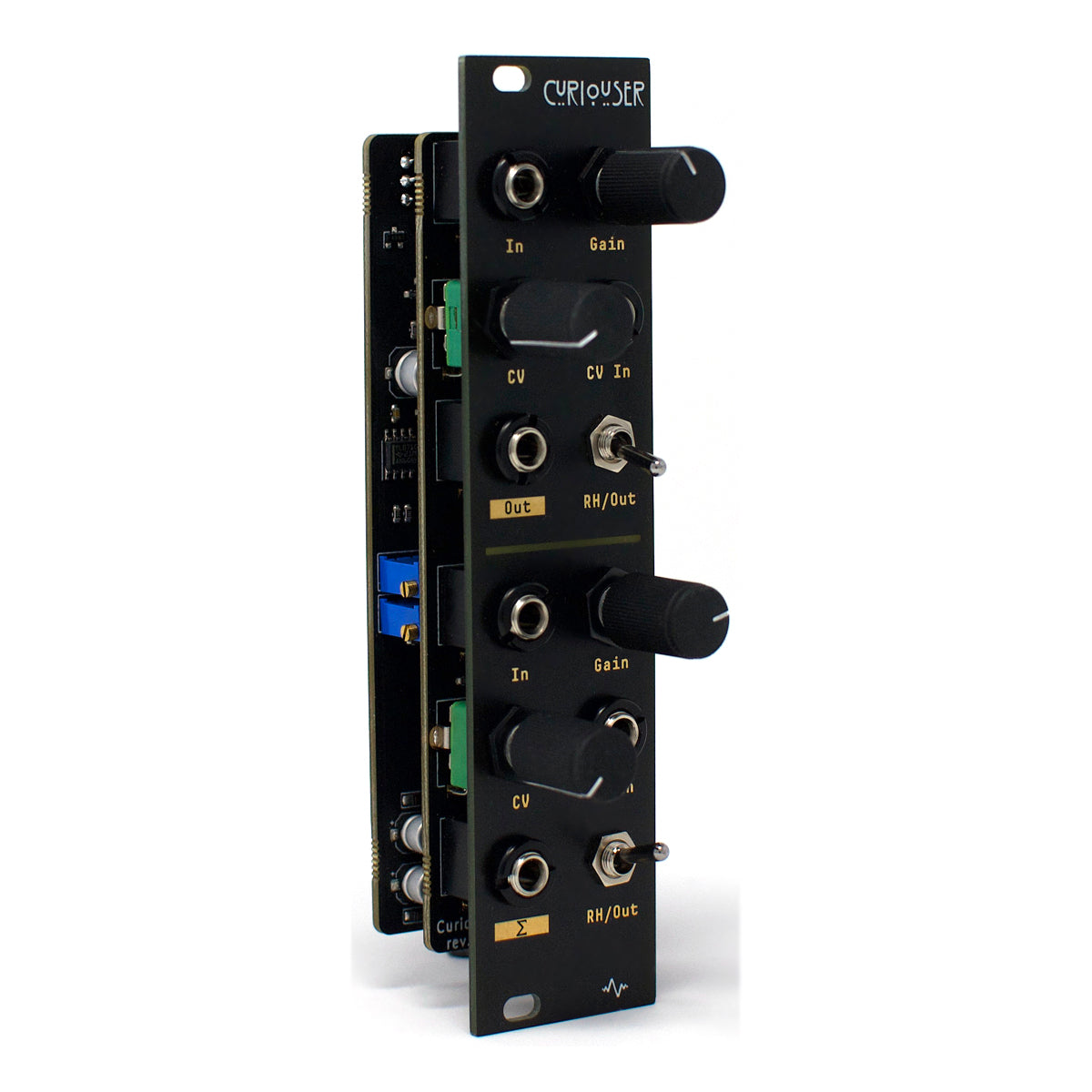

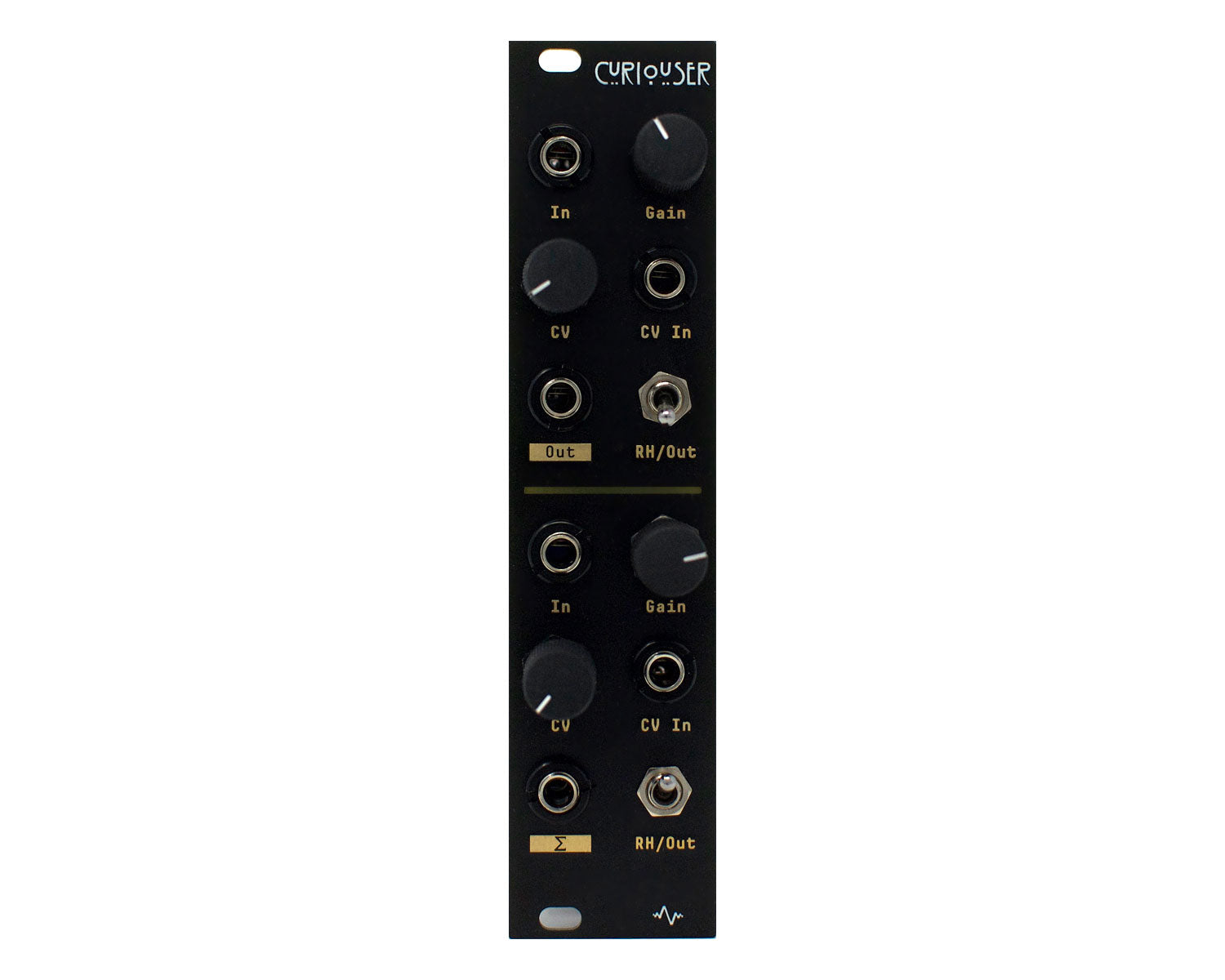

6HP expander for Rabbit Hole. Provides 2 additional input channels. Each channel can either be sent to Rabbit Hole or used as a standalone VCA. When used standalone, the two channels are normalled to sum at the bottom output. Gain CV is normalled from Rabbit Hole.
Features:
- Expander for Rabbit Hole
- 2 inputs with vintage character OTA VCA
- Each channel can be used as a standalone VCA
- Attenuverters for CV inputs
- All analogue signal path
- 6HP
- 40mm depth
- Reverse polarity protected
- +12V 60mA
- -12V 12mA
Video: https://youtu.be/odgjnRGYYyk
Product Specs
- Item Number: 23240
- Make: Apollo View
- Model: Curiouser
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Distortion Expander VCA
- Made In: United Kingdom
- MPN: APLL02
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 6 HP 40 mm deep
- Power: 60 mA +12V 12 mA -12V 0 mA 5V
