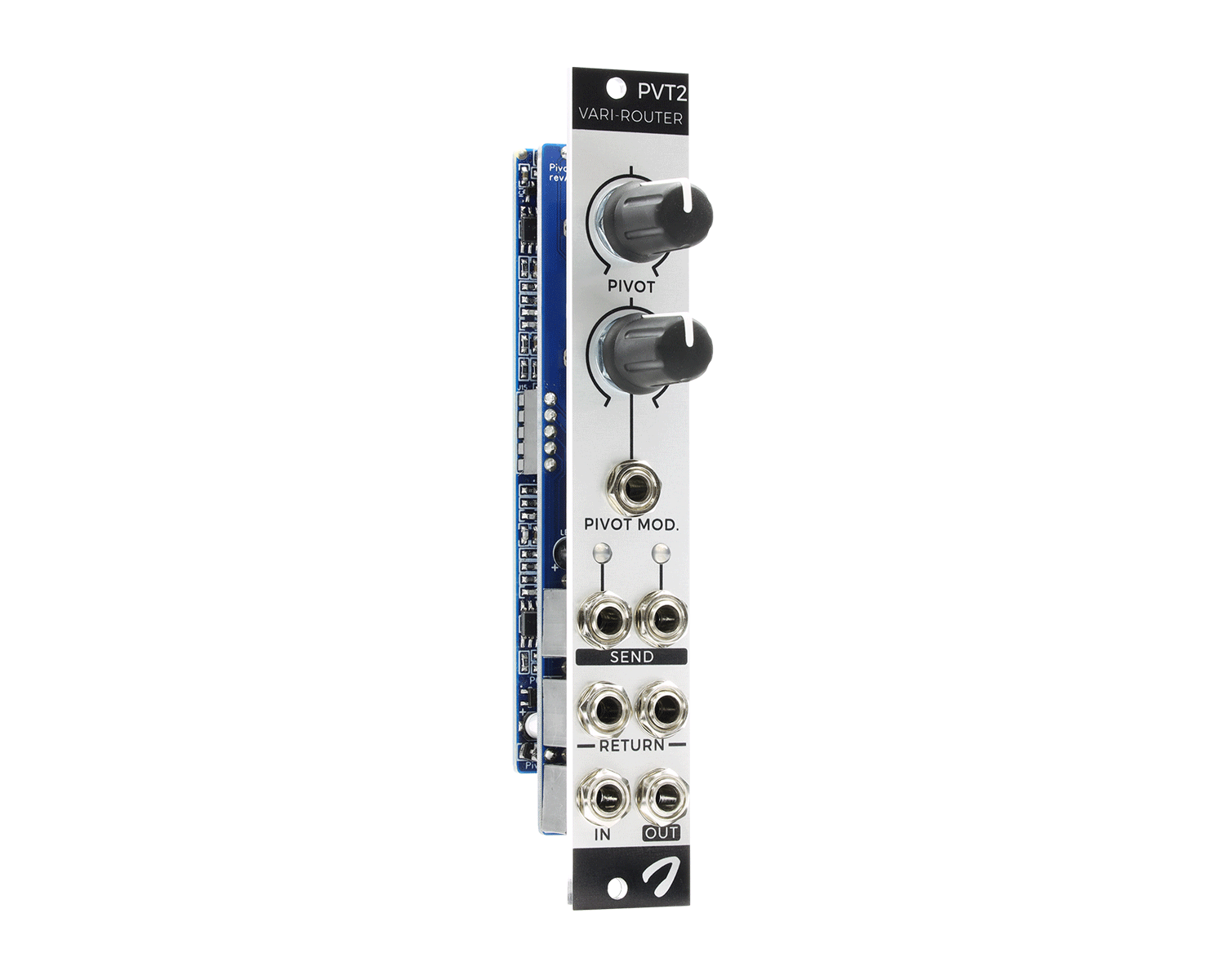

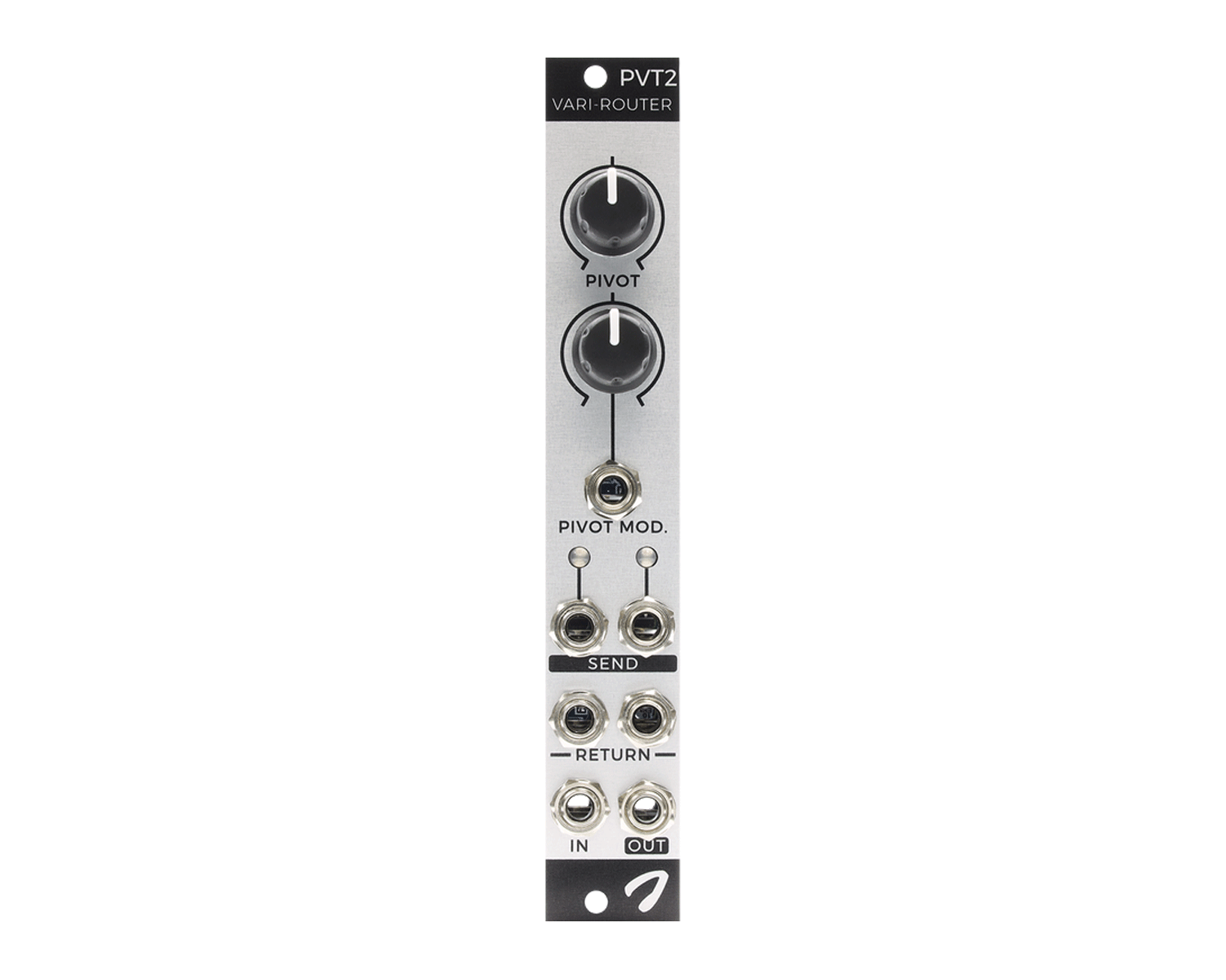

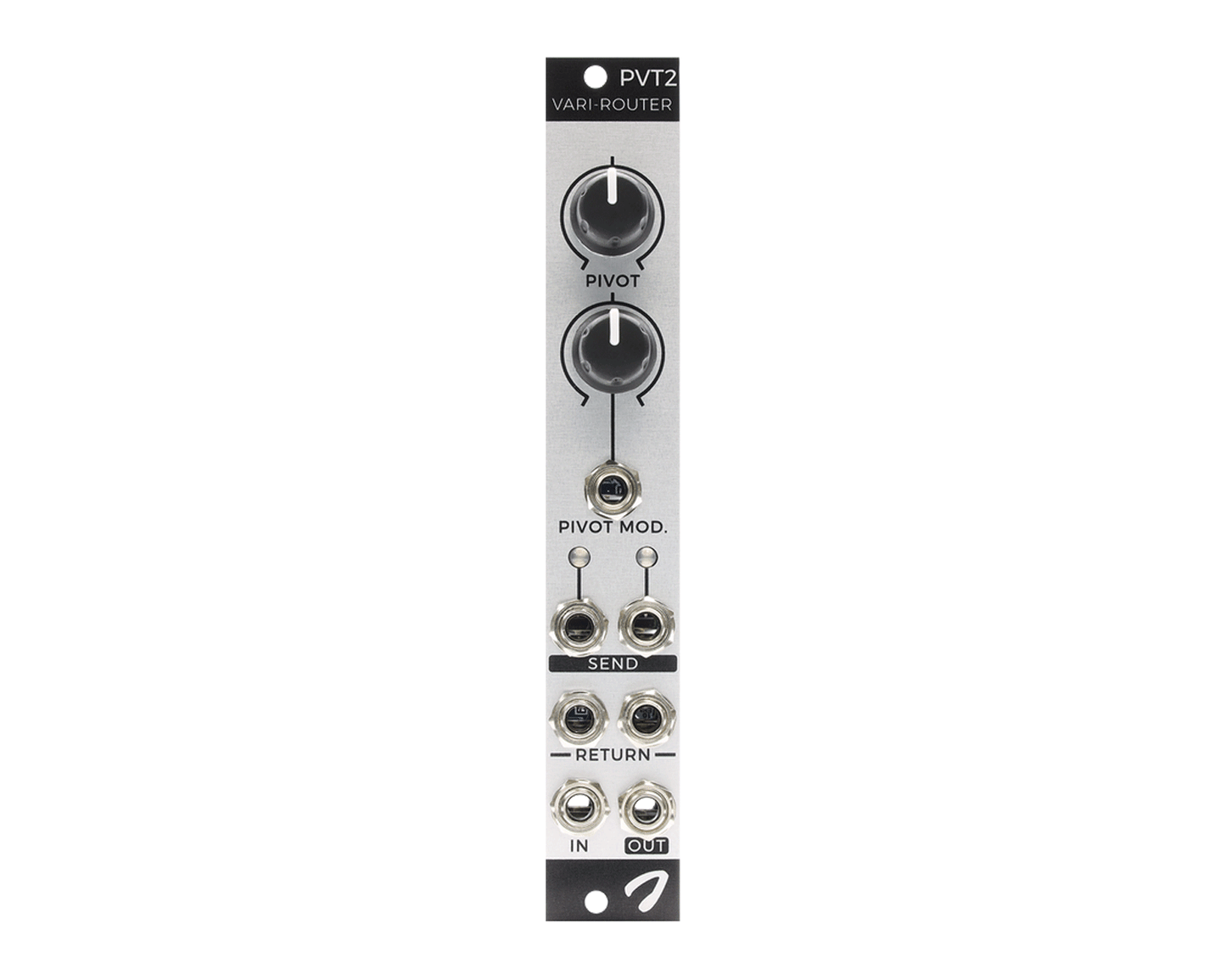

The Joranalogue Pivot 2 is a 4HP fully voltage controlled variable signal router.
At the turn of a knob, any signal can be routed through two external modules in series, parallel or reverse series, and any combination in between.
Experiment with patching wavefolders before, after or alongside filters, shuffle multiple delay lines, precisely dial in two-stage audio compression or easily control intricate feedback patches.
Beyond the basic signal routing application, Pivot 2 also functions as a complementary pair of counter-acting linear voltage controlled amplifiers (VCAs), a voltage controlled crossfader or a voltage controlled panner.
Features:
- Analogue voltage controlled send/return router
- Seamless transitions from series, through parallel on to reverse series effect routing
- Impedance-compensated outputs with dual-colour LEDs
- Premium mounting hardware: black screws, black nylon washers and matching hex key
- High-quality components and assembly; designed and made in Belgium
Video: https://youtu.be/d7HWFxhxTLQ
Product Specs
- Item Number: 23201
- Make: Joranalogue
- Model: Pivot 2
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ā eurorack
- Function: VCA Mixer Switch Utility
- Made In: Belgium
- MPN: JORP2
- Modular Grid: Eurorack ā ļ¼
- Dimensions: 4 HP 35 mm deep
- Power: 60 mA +12V 60 mA -12V 0 mA 5V
