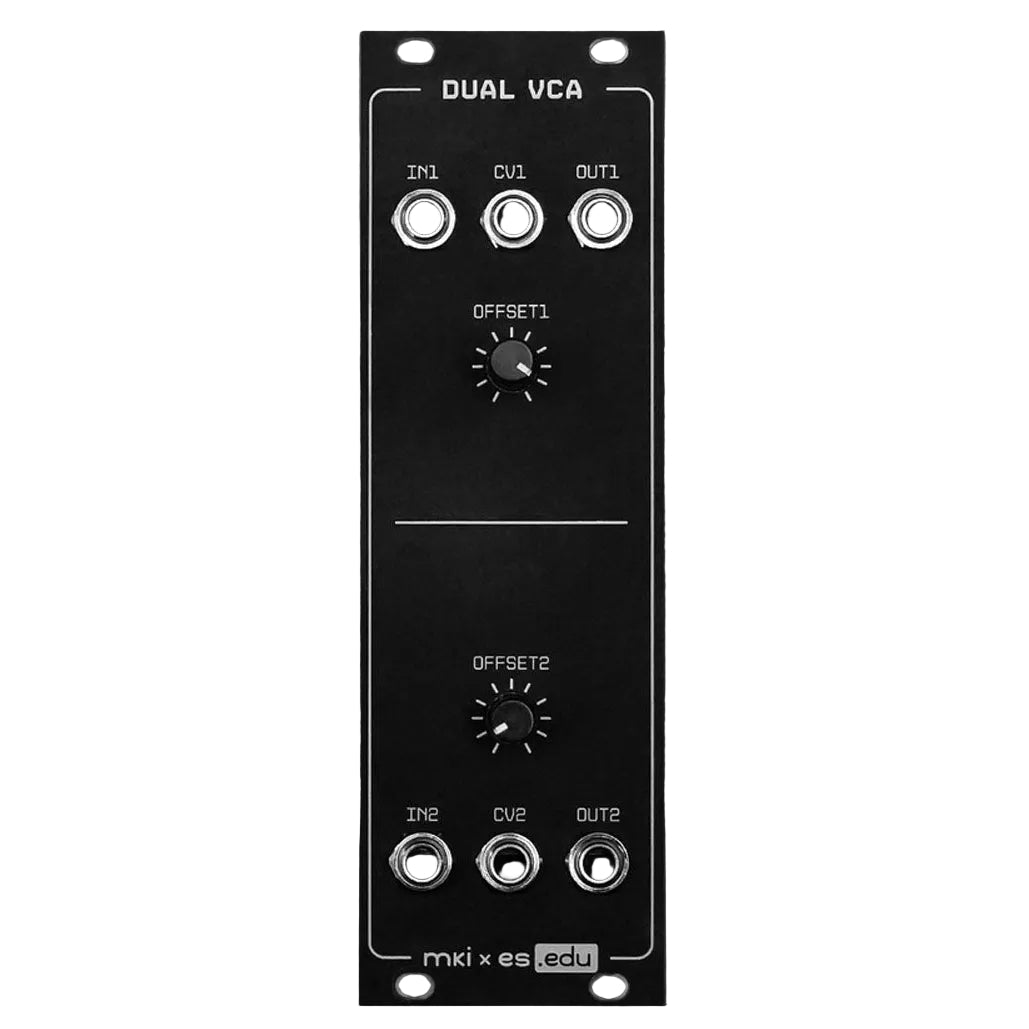

• A black Erica Synths mki x es.EDU EDU DIY VCA Kit, featuring knobs and switches on the front panel, designed for use in an eurorack system.
1 1

Erica Synths

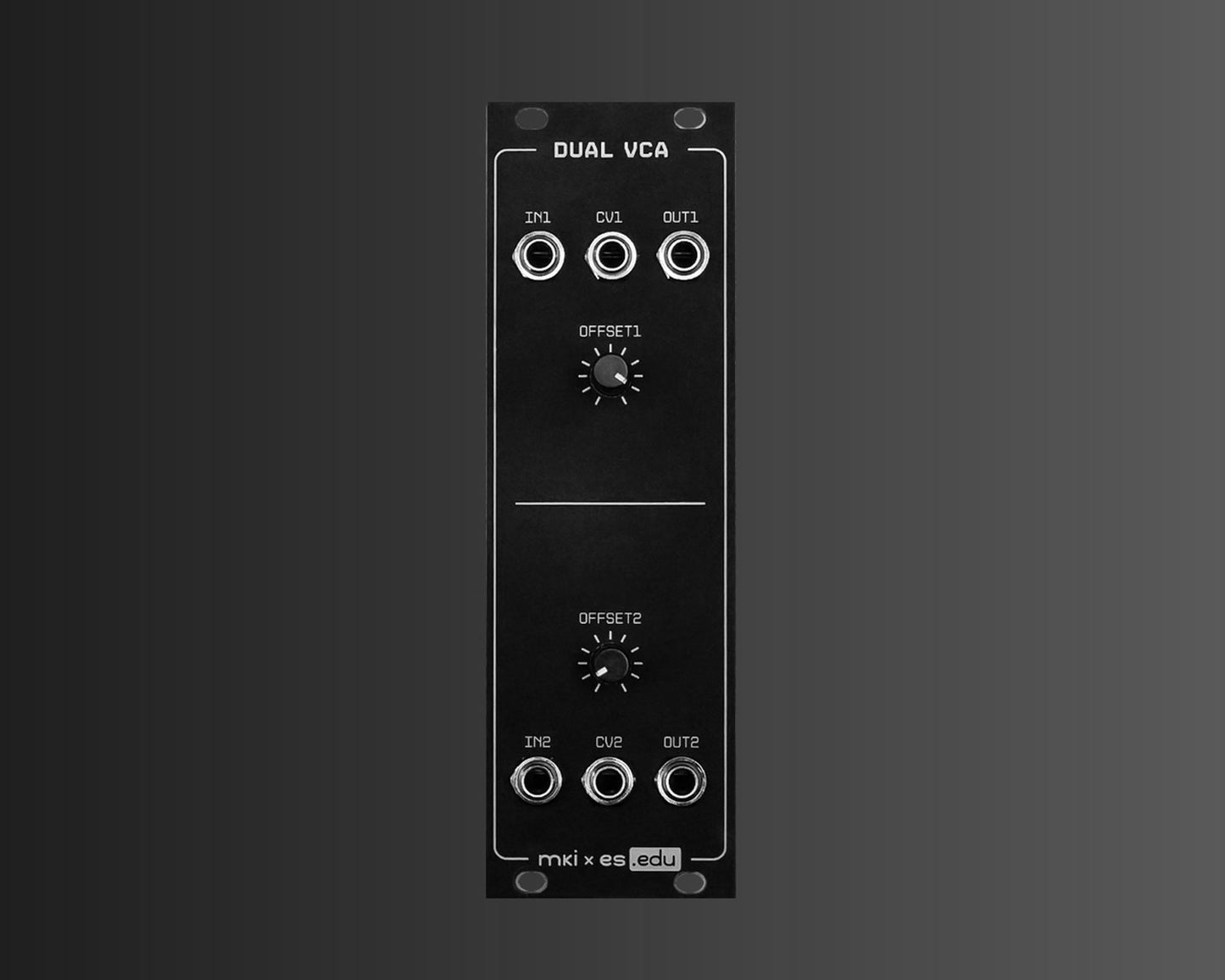

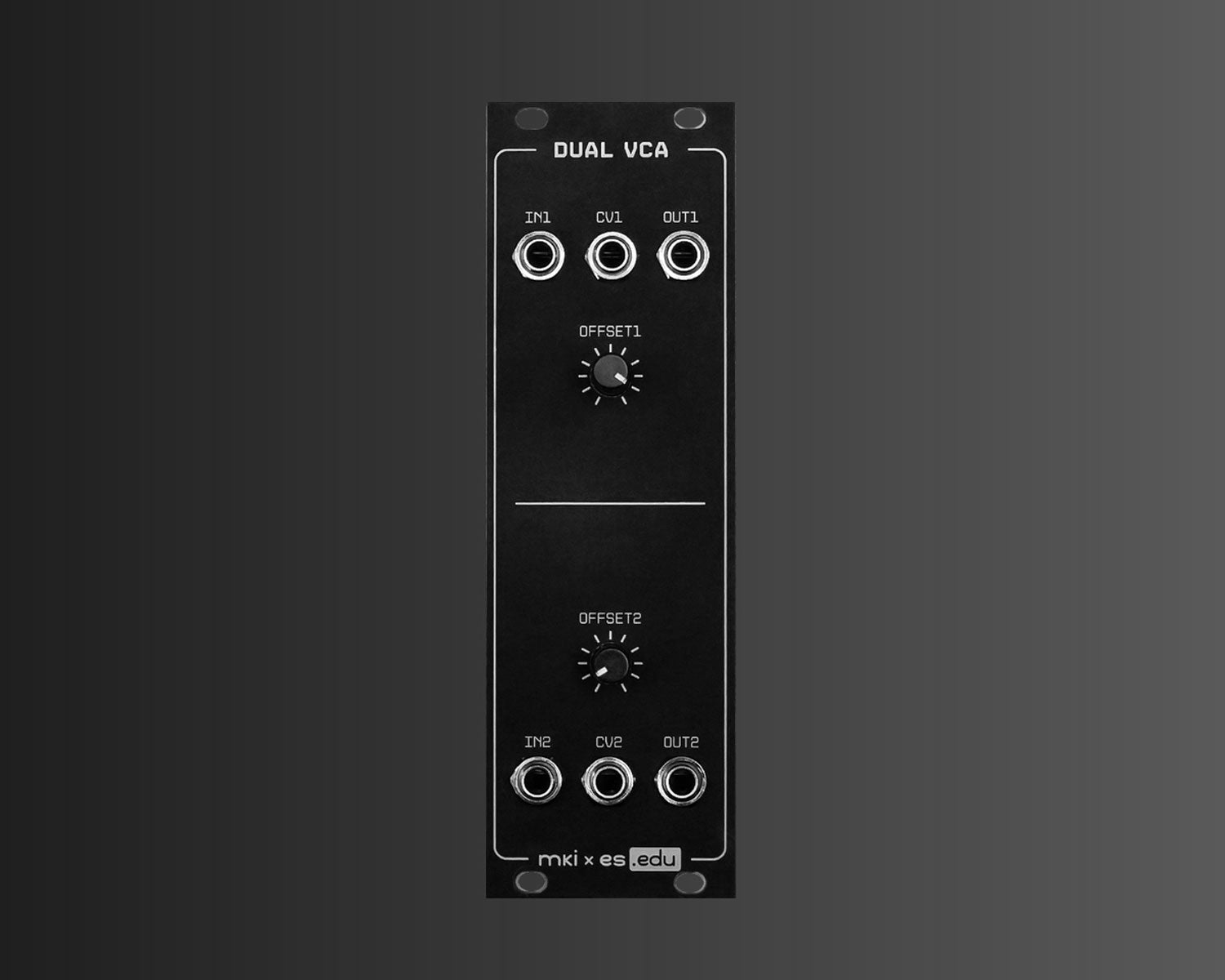

Erica Synths mki x es.EDU DIY VCA Kit

Erica Synths mki x es.EDU DIY VCA Kit

PRE ORDER
$109.00 AUD
$109.00 AUD
Taxes included. Shipping calculated at checkout.

Out of stock

A dual, DC-coupled VCA DIY kit for Eurorack systems, designed for both audio and control-voltage duties. The second VCA's inputs are normalled to the first, allowing a single audio or CV source to be sent to both channels, while still enabling independent connections when required.

Developed by Erica Synths and Moritz Klein as part of the mki x es.EDU educational DIY series, this kit is intended to teach the fundamentals of analogue synthesiser circuit design. Its detailed build manual covers the electronics behind the module, explains design choices and their effects, and provides step-by-step assembly instructions.

Features

  • Dual voltage-controlled amplifier
  • DC-coupled inputs for processing audio and CV signals
  • Second VCA inputs normalled to the first VCA
  • Allows one audio signal to be split across both VCAs
  • Allows both VCAs to be controlled from a single CV source
  • Designed for Eurorack systems
  • Part of the nine-module mki x es.EDU DIY modular monosynth series

Documentation

Includes a 60-page build manual covering circuit design principles, the electronics behind the module and step-by-step construction instructions.

Important Note

These educational DIY kits are designed to be straightforward to build and include extensive documentation. Customer support is not provided for DIY builds that do not function correctly after assembly.

Video: https://youtu.be/NuS8slR2Ue0
