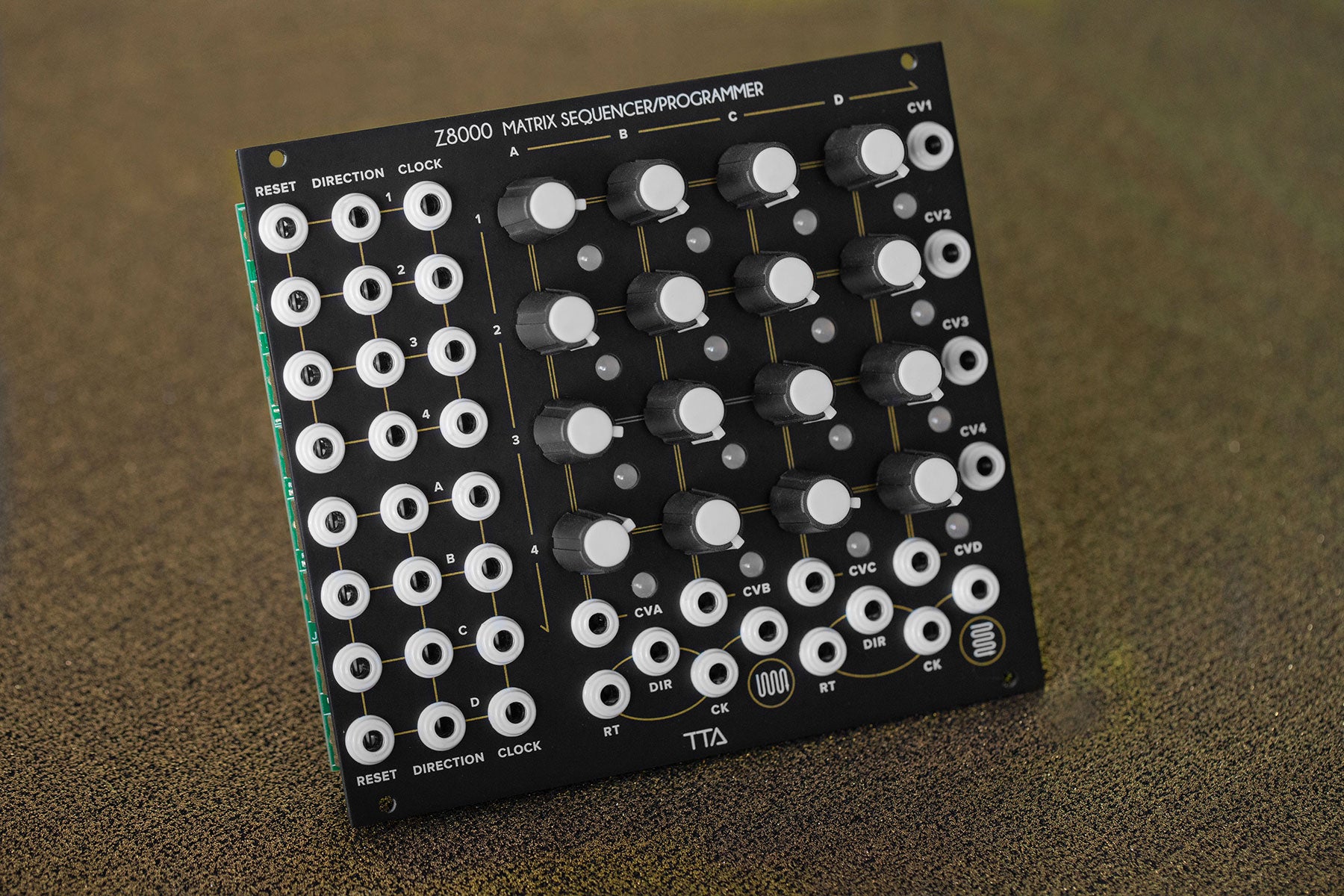

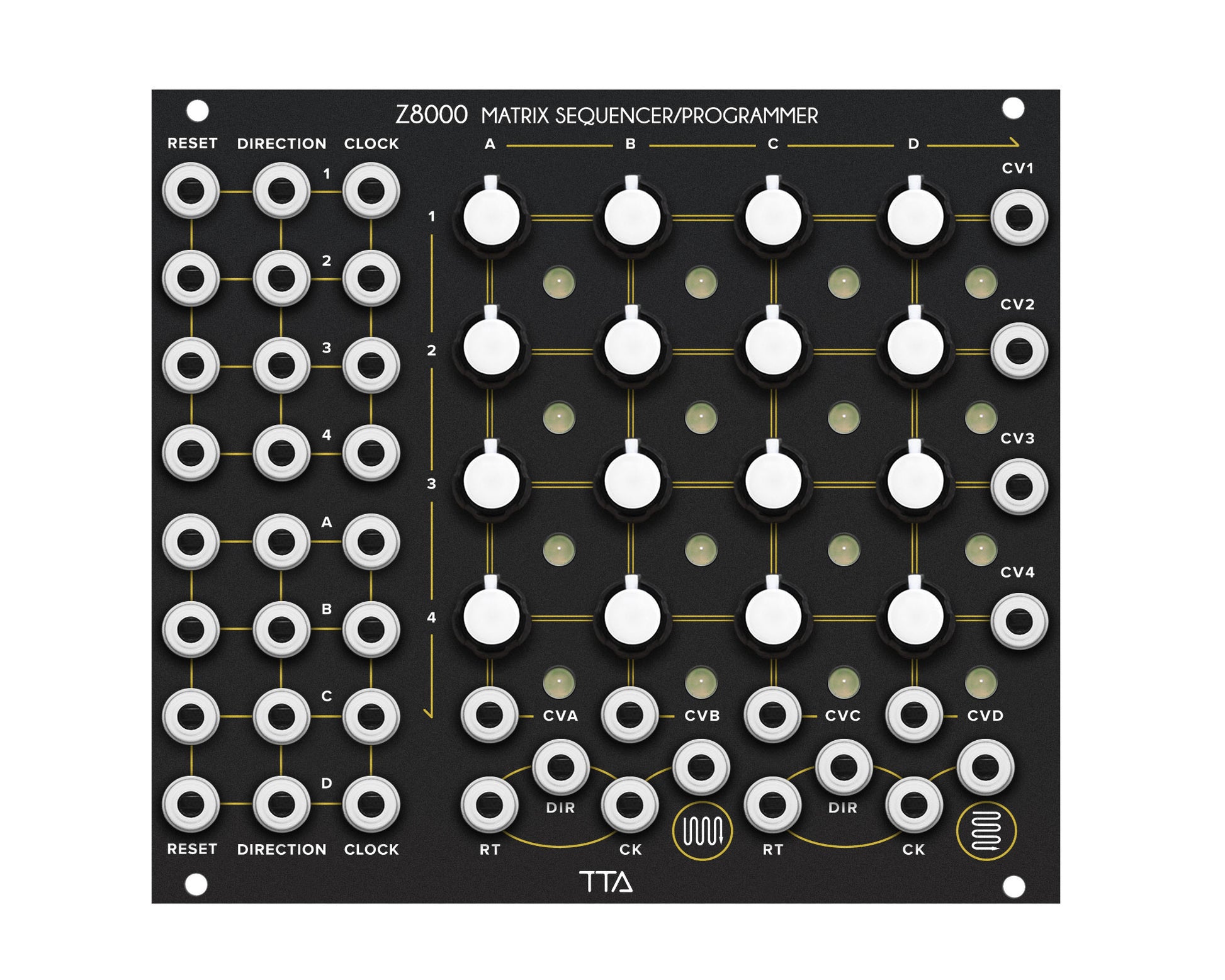

The Z8000 Matrix Sequencer is a 28HP modulation source like no other: The 16 knobs of the Z8000 are accessed by ten sequencers with their own clock, direction and reset inputs. The ten sequencers are as follows: Four 4 step CV sequencers on the horizontal, four 4 step CV sequencers on the vertical, one 16 step CV sequencer on the horizontal, one 16 step CV sequencer on the vertical. The Z8000 can simultaneously modulate up to 10 CV parameters poly-rhythmically, with unprecedented motion complexity. One knob affects all 10 CV outputs. Imagine modifying 10 parameters from one knob.
Video: https://youtu.be/8P7ylctKT1c
Product Specs
- Item Number: 21718
- Make: Tiptop Audio
- Model: Z8000 - Black
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Sequencer Mixer
- Made In: Thailand
- MPN: TTA-Z8000B
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 28 HP 15 mm deep
- Power*: 70 mA +12V 10 mA -12V 0 mA 5V
* User contributed details
