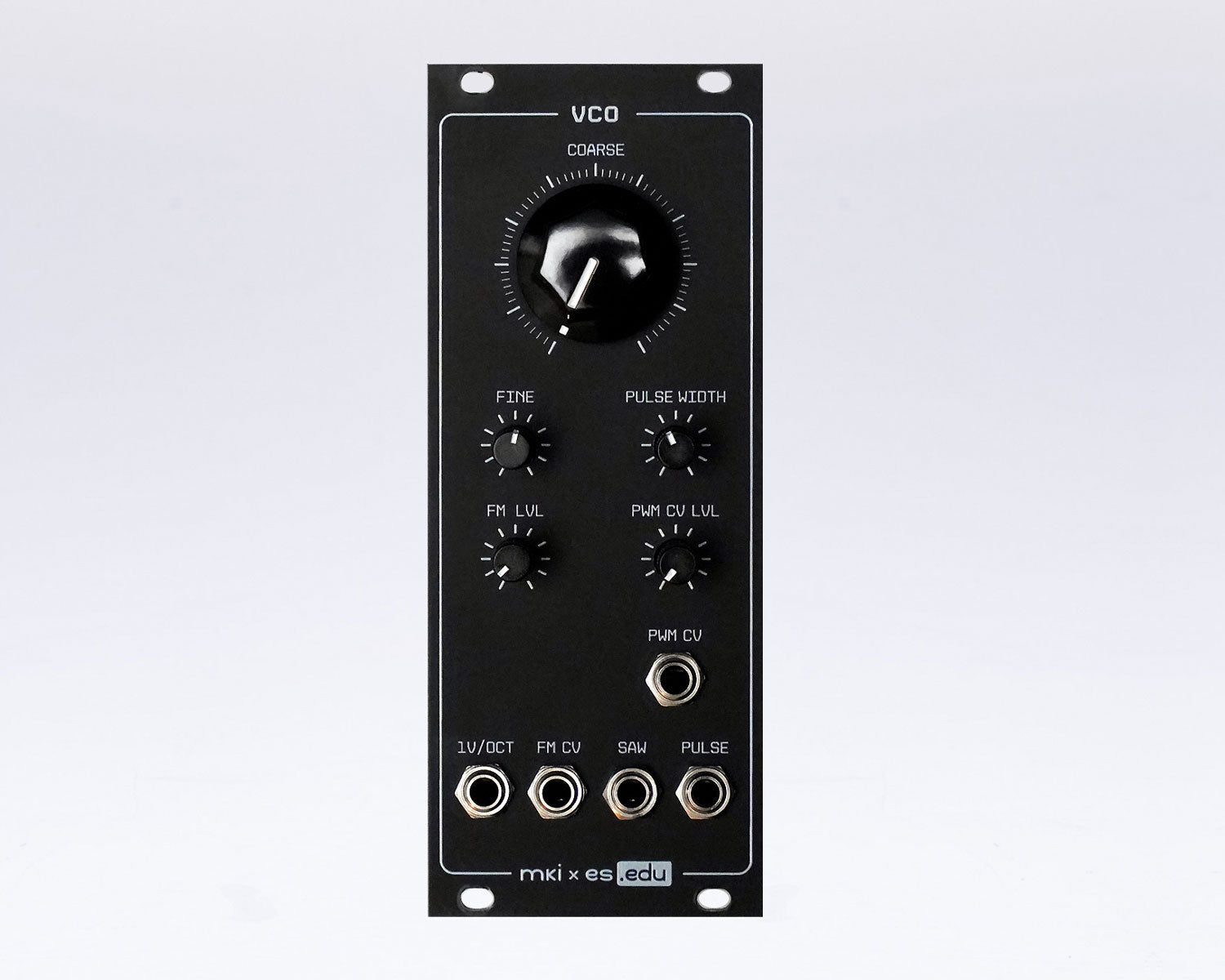

The mki x es.EDU VCO is the first educational DIY kit in this series. It is an analog sawtooth-core oscillator with a reasonably accurate volt/octave tracking, made from just a handful of basic components. It features sawtooth and pulse outputs as well as 1V/oct, FM, and PWM inputs. We – Erica Synths and Moritz Klein – have developed a series of educational DIY kits under the brand name mki x es.EDU with one specific goal in mind: to teach people with little-to-no prior experience how to design analog synthesizer circuits from scratch. What you’ll find in the box is not simply meant to be soldered together and then disappear in your rack. Instead, we want to take you through the circuit design process step by step, explaining every choice we’ve made and how it impacts the finished module.
In total, we have developed 9 kits to build a fully-featured modular monosynth: a sequencer, a VCO, a wavefolder, a noise/S&H module, a mixer, a VCF, an Envelope generator, a dual VCA, and an output stereo mixer with a headphone amplifier. Additionally, an affordable eurorack case with a DIY PSU will also be available. While these kits are easy to build, we did not compromise on design and functionality. We will launch one kit every 4-6 weeks. For each kit, there is an extensive user manual (40+ pages; can be downloaded separately) that will dive deep into not only the electronics behind each circuit but also the fundamental principles of sound synthesis. We hope that the mki x es.EDU project will inspire future engineers and will contribute to the ever-growing diversity of electronic music technology.
Video: https://youtu.be/8JuYLLpZzBs
Product Specs
- Item Number: 21675
- Make: Erica Synths
- Model: mki x es. EDU DIY VCO Kit
- Condition: Brand New
- Finish: Black
- Categories: diy ⇒ kit
- Function: Oscillator
- Made In: Latvia
- MPN: ES-EDUDIYVCO
- EAN: 4751030829449
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 10 HP 25 mm deep
- Power: 7 mA +12V 7 mA -12V 0 mA 5V
