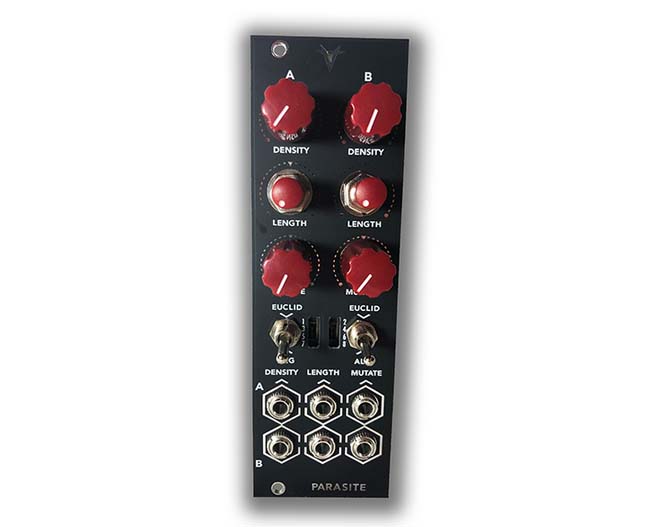

Parasite is a dedicated expander module for the Beast-Tek Amoeba module. Parasite attaches to its Amoeba host with a three pin cable via headers on the back of the module.
Once attached to its host, Parasite provides direct control of two channels via two separate A/B sections. In algorithm mode Parasite controls Density, Length and Mutate of the target channel. In Euclid mode, Parasite injects a euclidean rhythm into the target channel with Density, Length and Shift/"Offset"(via the Mutate control).
Section A can control any odd numbered Amoeba channel and Section B can control any even numbered Amoeba channel via 4 position switches that hide themselves just below the panel to protect against accidental bumps during heavy wiggling sessions.
Up to four Parasites can be chained together to control a single Amoeba, providing full discrete control of each channel.
Product Specs
- Item Number: 21295
- Make: Beast-Tek

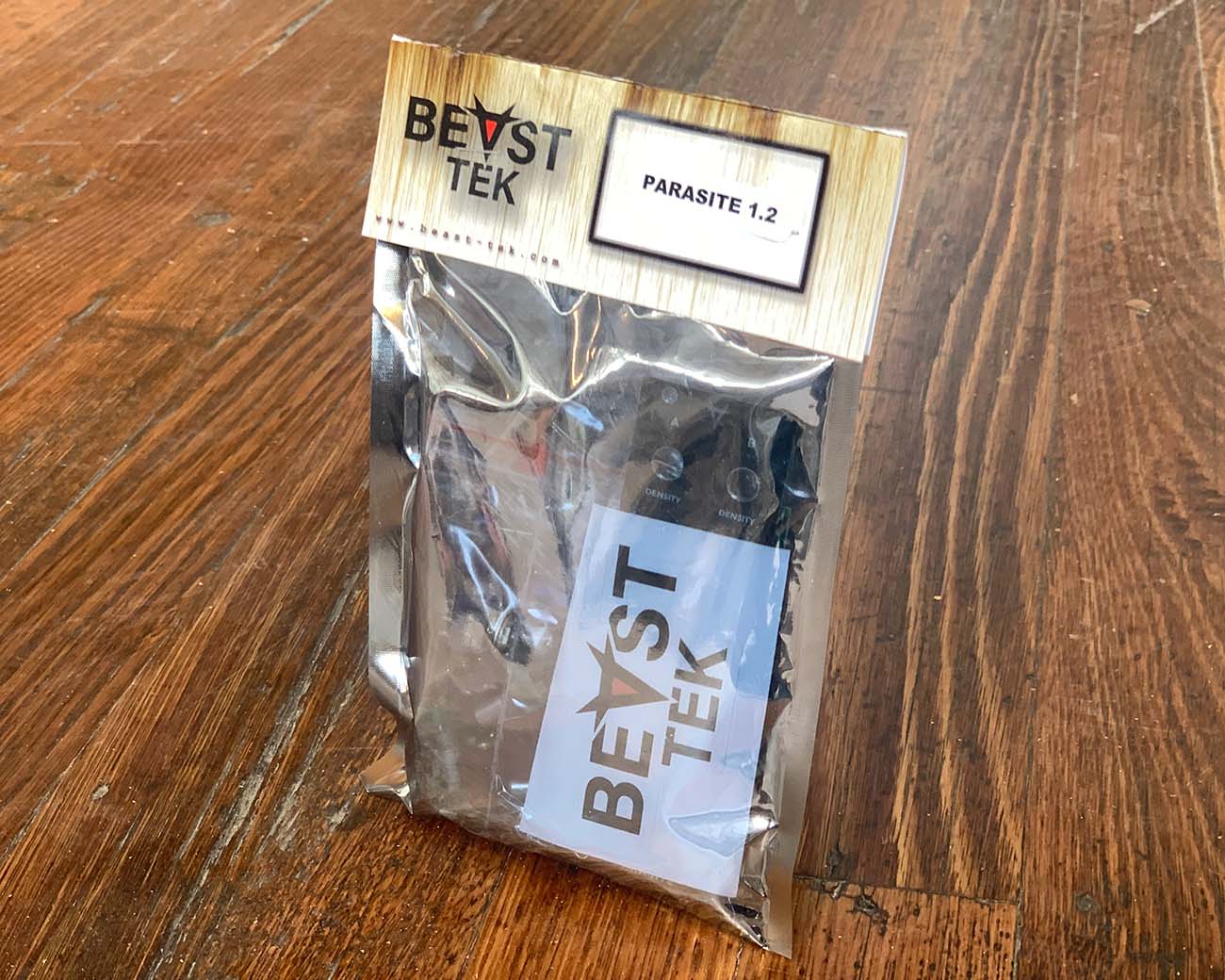

- Model: Parasite 1.2 Full DIY Kit
- Condition: Brand New
- Categories: keyboards-and-synths ā eurorack
- Function: Clock Generator Sequencer Expander
- Made In: Australia
- MPN: 21295
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 8 HP 45 mm deep
- Power*: 35 mA +12V 5 mA -12V 0 mA 5V
* User contributed details
