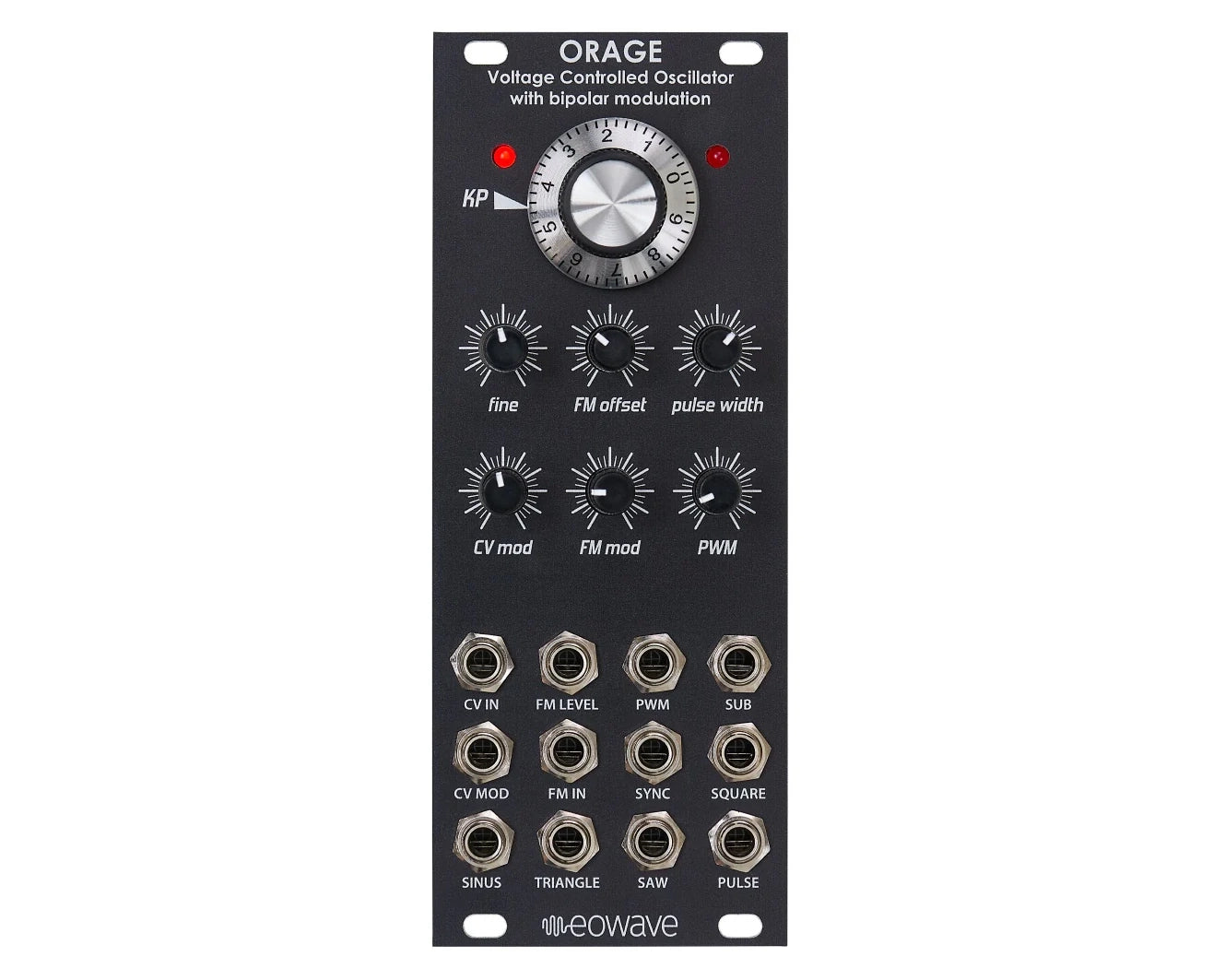

Eowave Orage MKII VCO

The Orage is a triangle core based voltage controlled oscillator which enables different modulation types from thru zero FM synthesis, linear as well as exponential modulations, pulsewidth modulation to phase inversion modulation.

There are 5 individual outputs for sine, triangle, saw, pulse, square waveforms. Additionally it offers a sub out. It also has a sync input to synchronise two Orage modules.

Power consumption: 25mA at +12 V and 25mA at -12 V

Depth: 40mm

HP : 10

Product Specs

• Item Number: 21208
• Make: Eowave
• Model: Orage MKII VCO
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Oscillator LFO
• Made In: France
• MPN: eoORAG2
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 10 HP 40 mm deep
• Power*: 25 mA +12V 25 mA -12V ? mA 5V

* User contributed details
