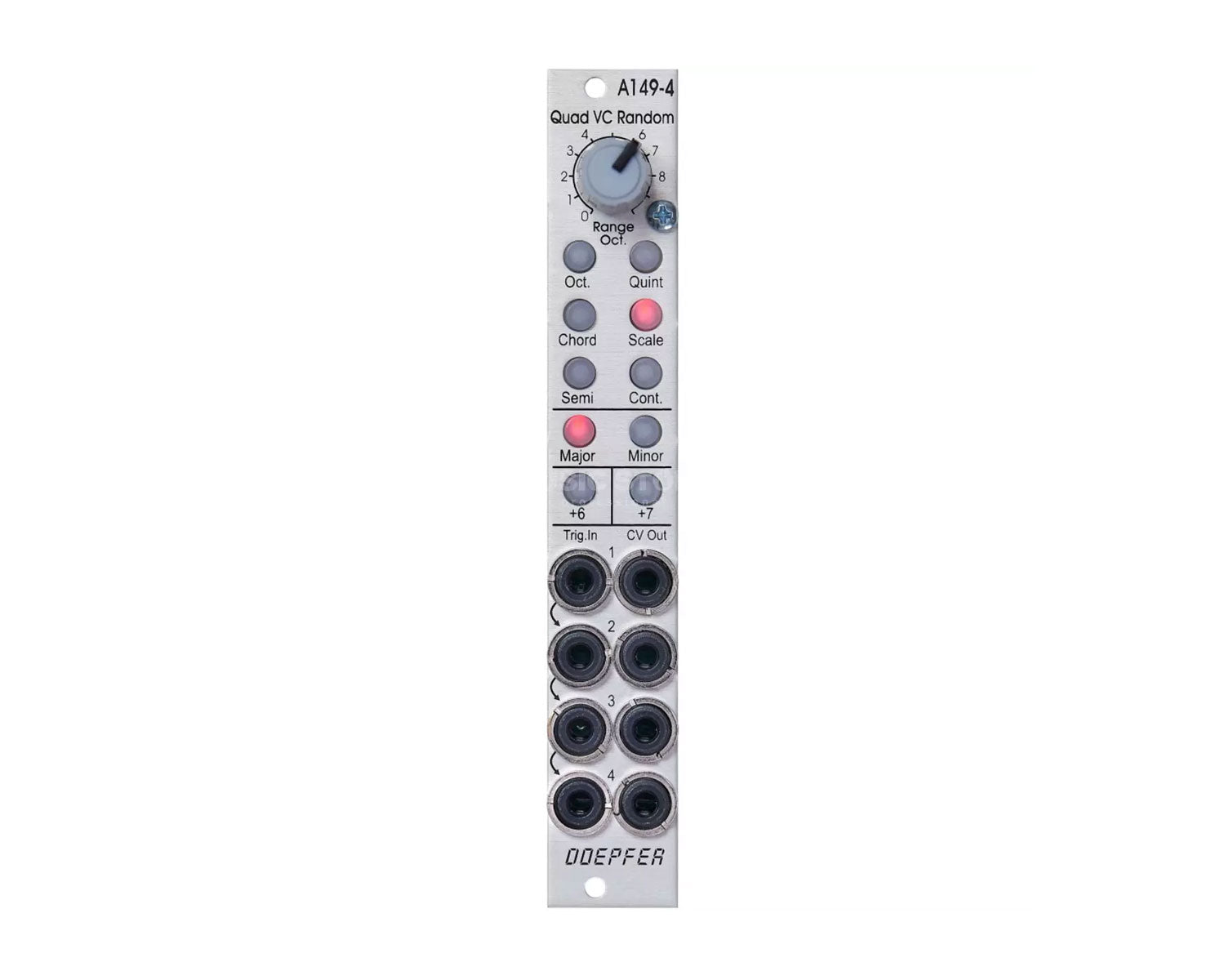

Doepfer A-149-4 Quad Random Voltage Source

The Doepfer A-149-4 is a 4HP quad random voltage source with four channels in both un-quantised and quantised varieties.
There are many options for quantisation selectable via illuminated buttons: octaves, quints (octaves and fifths), chord, scale, semi (chromatic), and continuous (unquantized). For the first four options you can choose whether to engage sixths and sevenths, and for chord and scale options you can choose between major or minor.
The knob on the module controls how great the octave range is and the trigger inputs are normalised downward, so you can generate four random voltages off of one trigger.

Video: https://youtu.be/0GEVxMWJkx4

Product Specs

• Item Number: 20957
• Make: Doepfer
• Model: A-149-4 Quad Random Voltage Source
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Quad Random
• Made In: Germany
• MPN: A-149-4
• EAN: 4250711114947
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 4 HP 45 mm deep
• Power*: 50 mA +12V 10 mA -12V 0 mA 5V

* User contributed details
