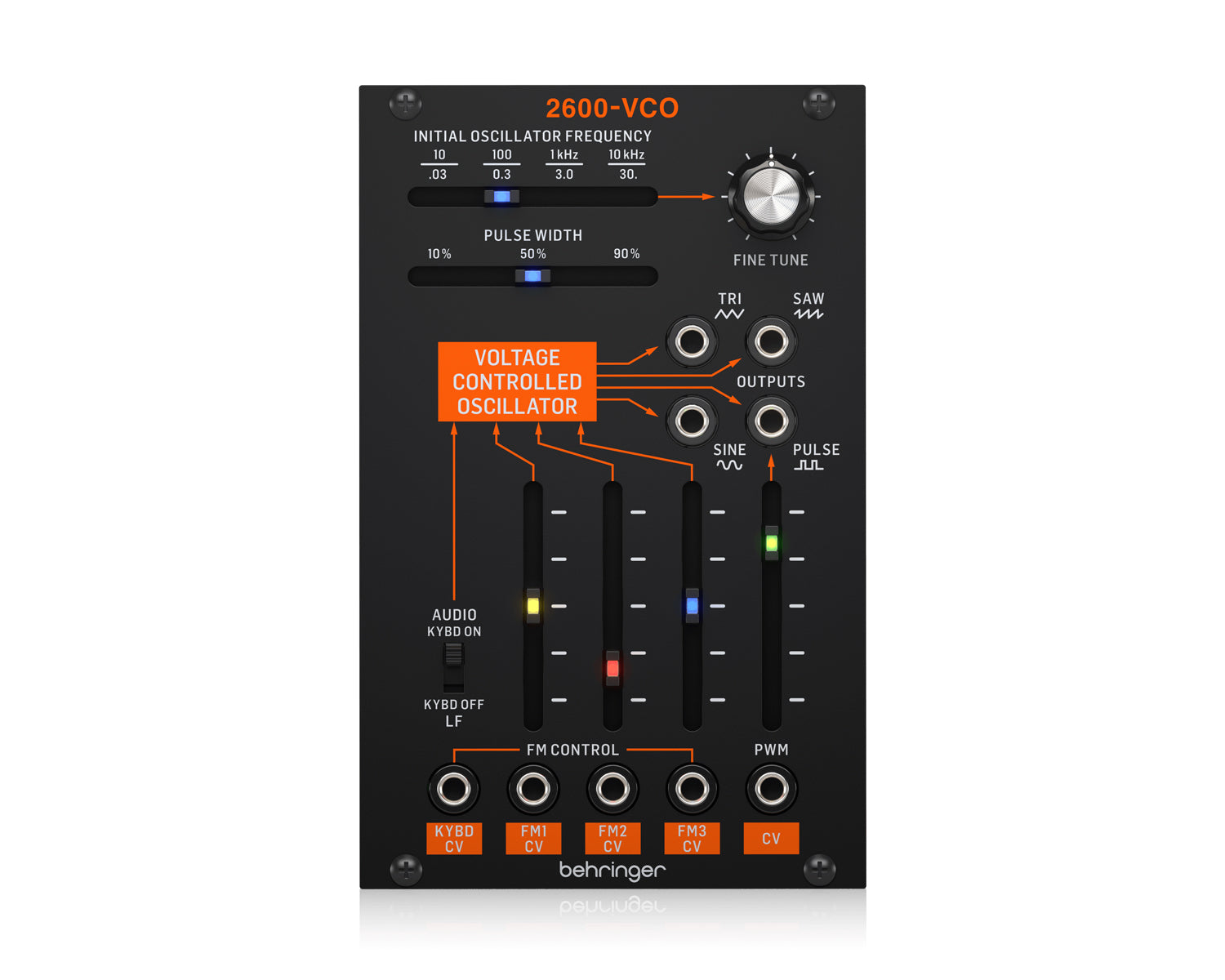

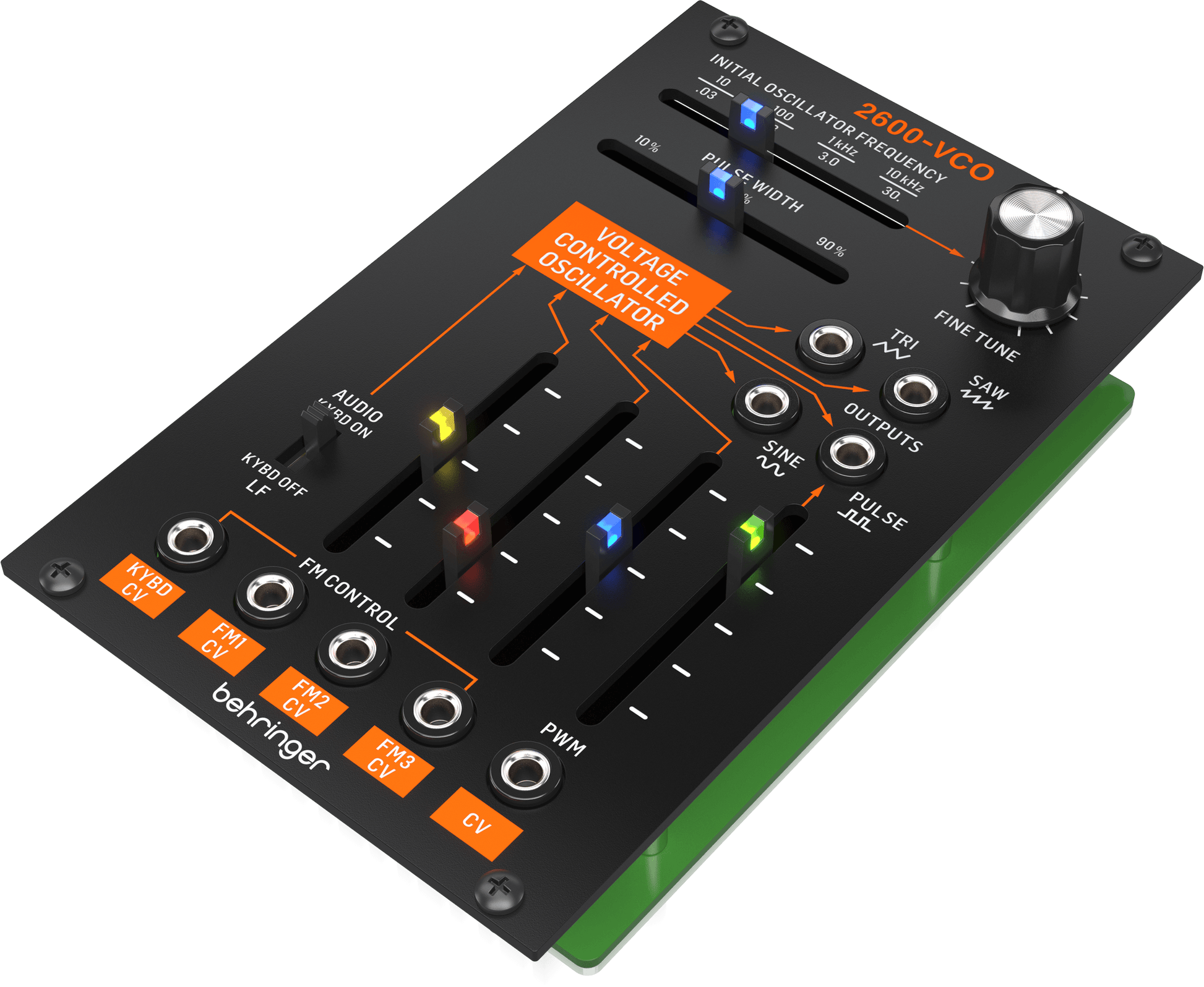

The Behringer 2600 Analog VCO module provides a huge array of different flavours and tones to chose from. It features four simultaneous waveforms including sine, triangle, saw and pulse. You can also control the frequency range of each oscillator between 10hz to 10kHz and from 0.03hz to 30hz when set to LF mode. To integrate seamlessly with other instruments or VCOs, you can tune each oscillator using the Fine Tune knob.
Features:
- Authentic recreation of vintage '70s 2600 series VCO sound
- Immaculate sound quality with a vintage flavour
- Four simultaneous waveforms including sine, triangle, saw and pulse
- Massive range of frequency control from 10Hz - 10kHz or 0.03Hz - 30kHz in LF mode
- Simultaneously control PWM manually or via external CV inputs
- Switch between LF (Keyboard off) and audio (Keyboard on)
- Individual outputs per waveform
- 5 CV inputs to control pitch and PWM
- Eight controls and switches give you a hands-on playable experience
Video: https://youtu.be/ulqMzUPqQYM
Product Specs
- Item Number: 20887
- Make: Behringer
- Model: 2600 Analog VCO Module
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Oscillator
- Made In: China
- MPN: BEH-2600VCO
- EAN: 4033653033046
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 16 HP 42 mm deep
- Power*: 140 mA +12V 5 mA -12V ? mA 5V
* User contributed details
