* This item is not currently in stock, orders will be fulfilled when the item becomes available.

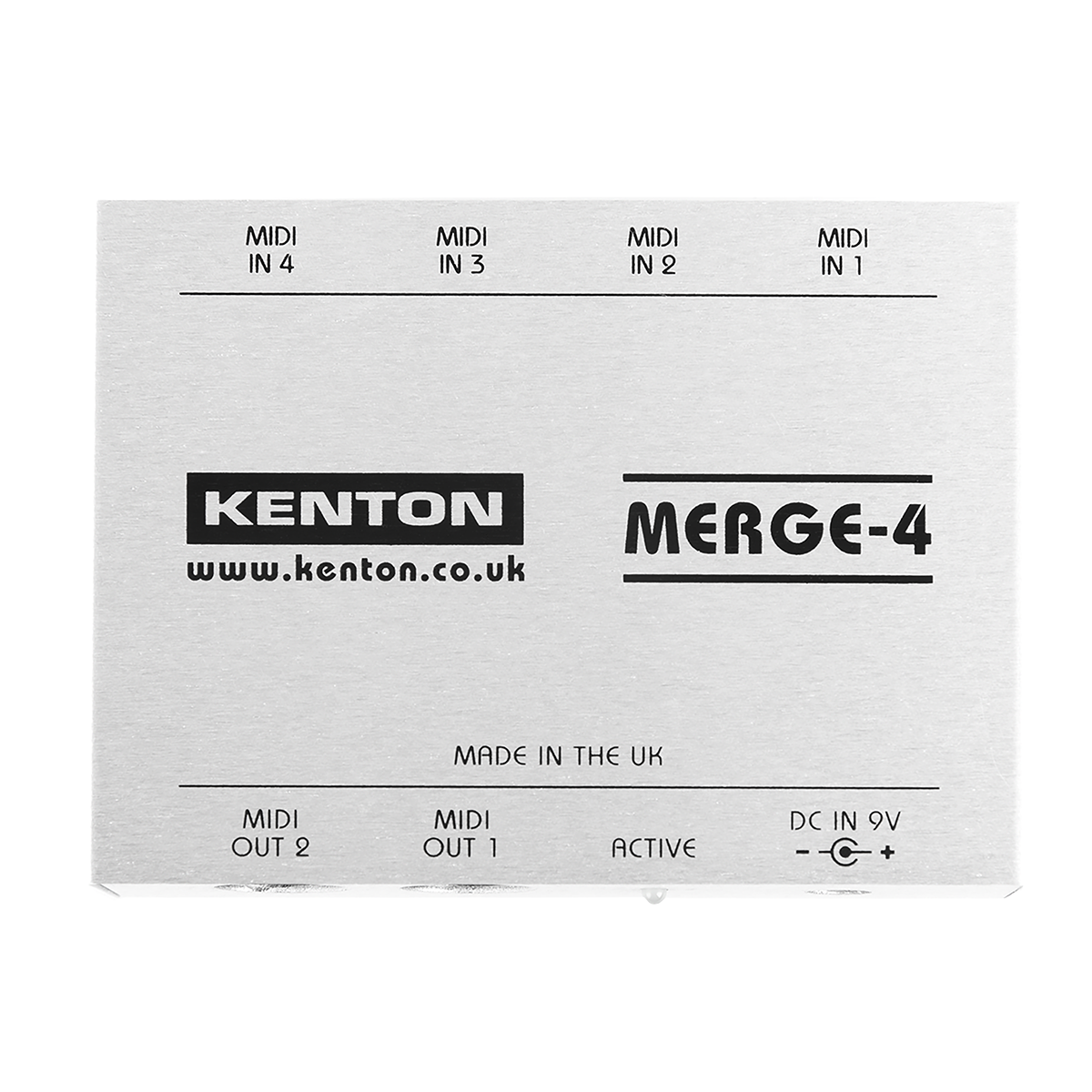

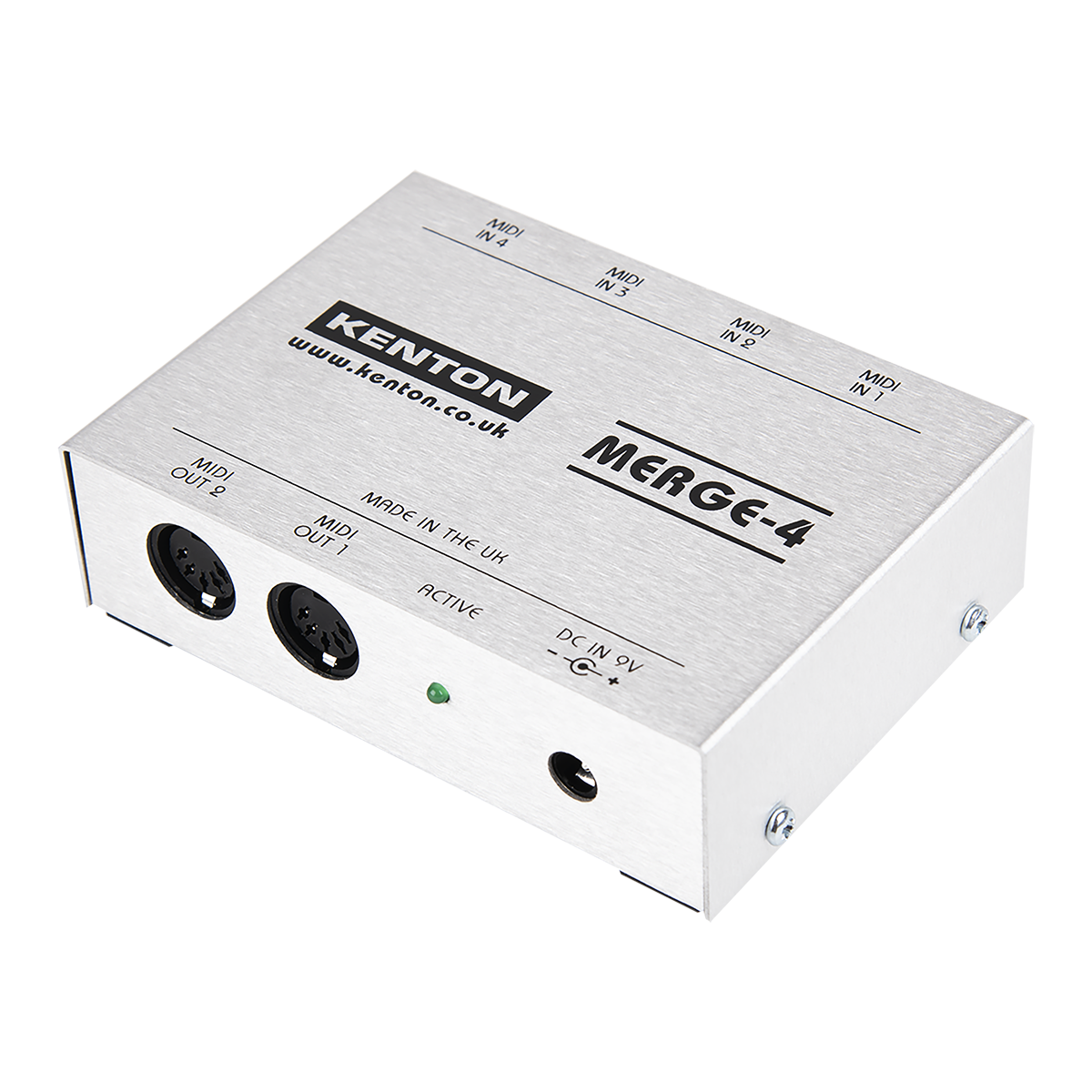

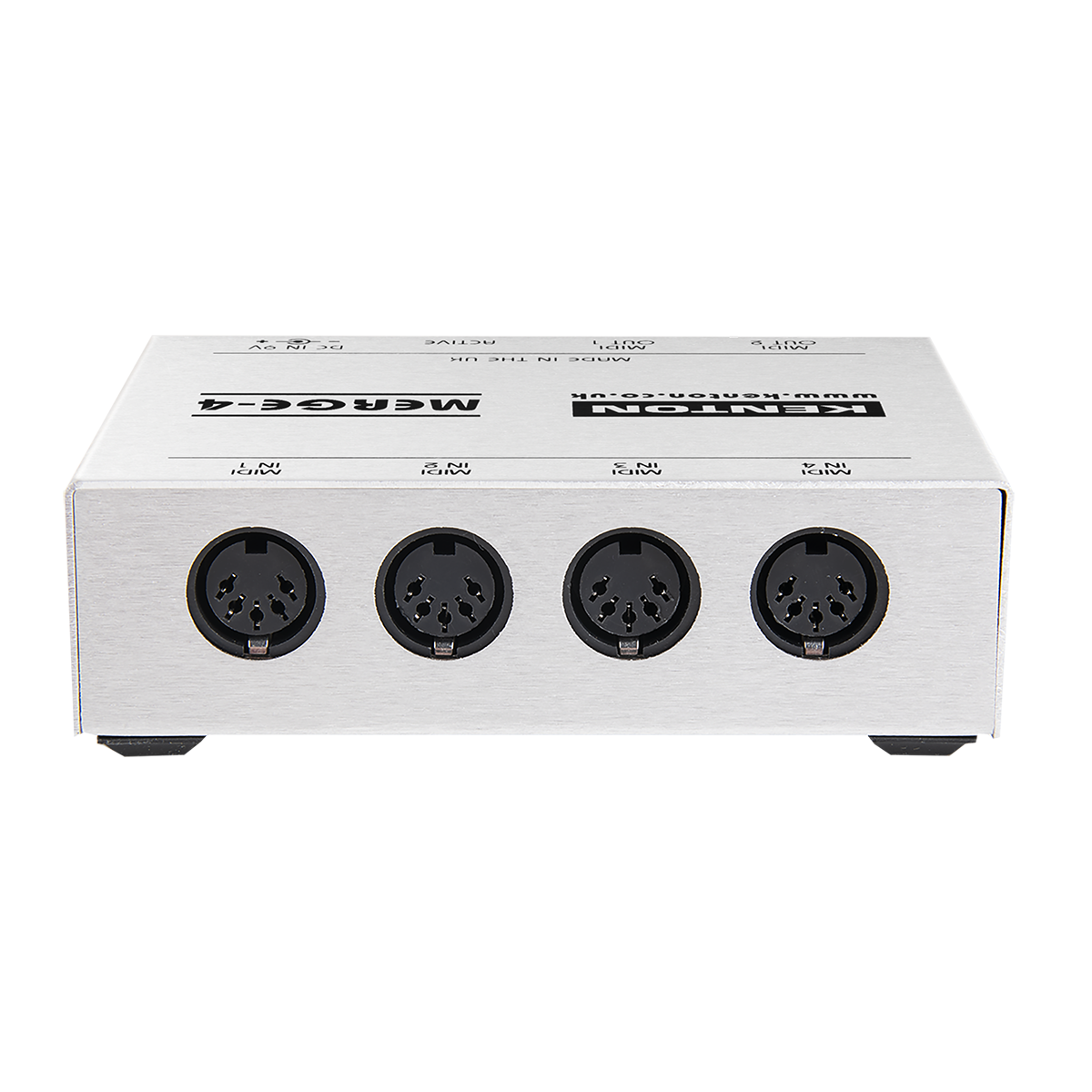

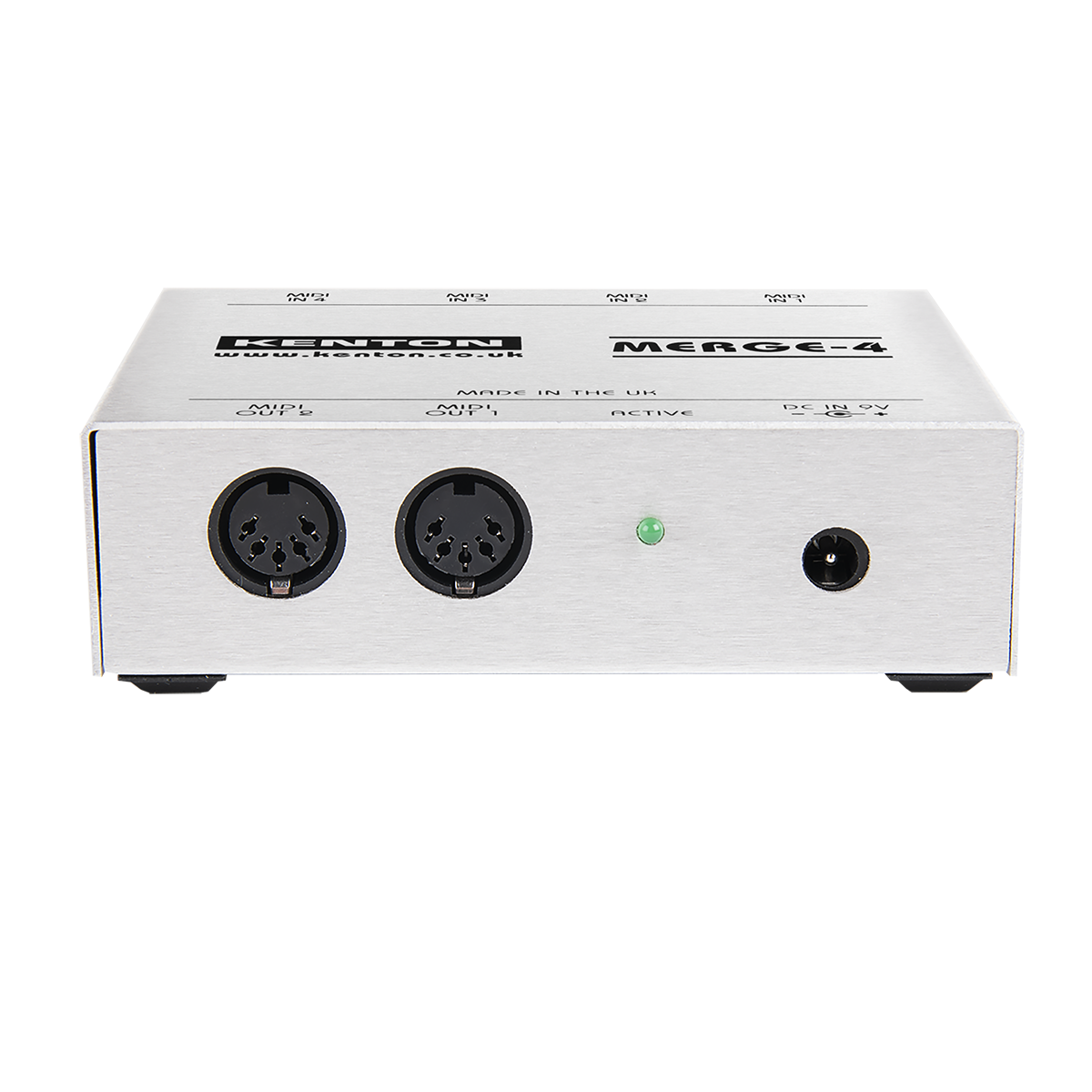

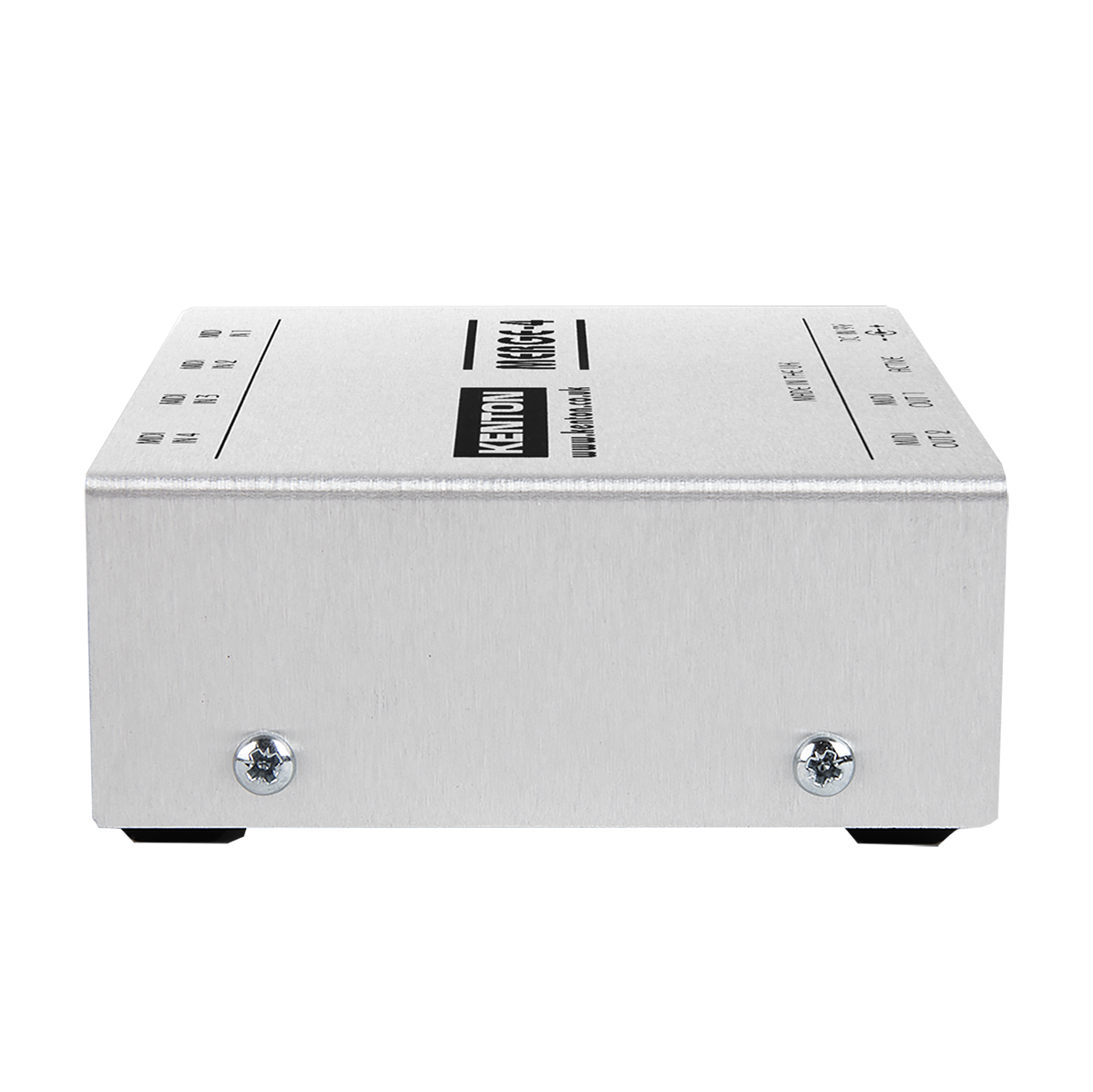

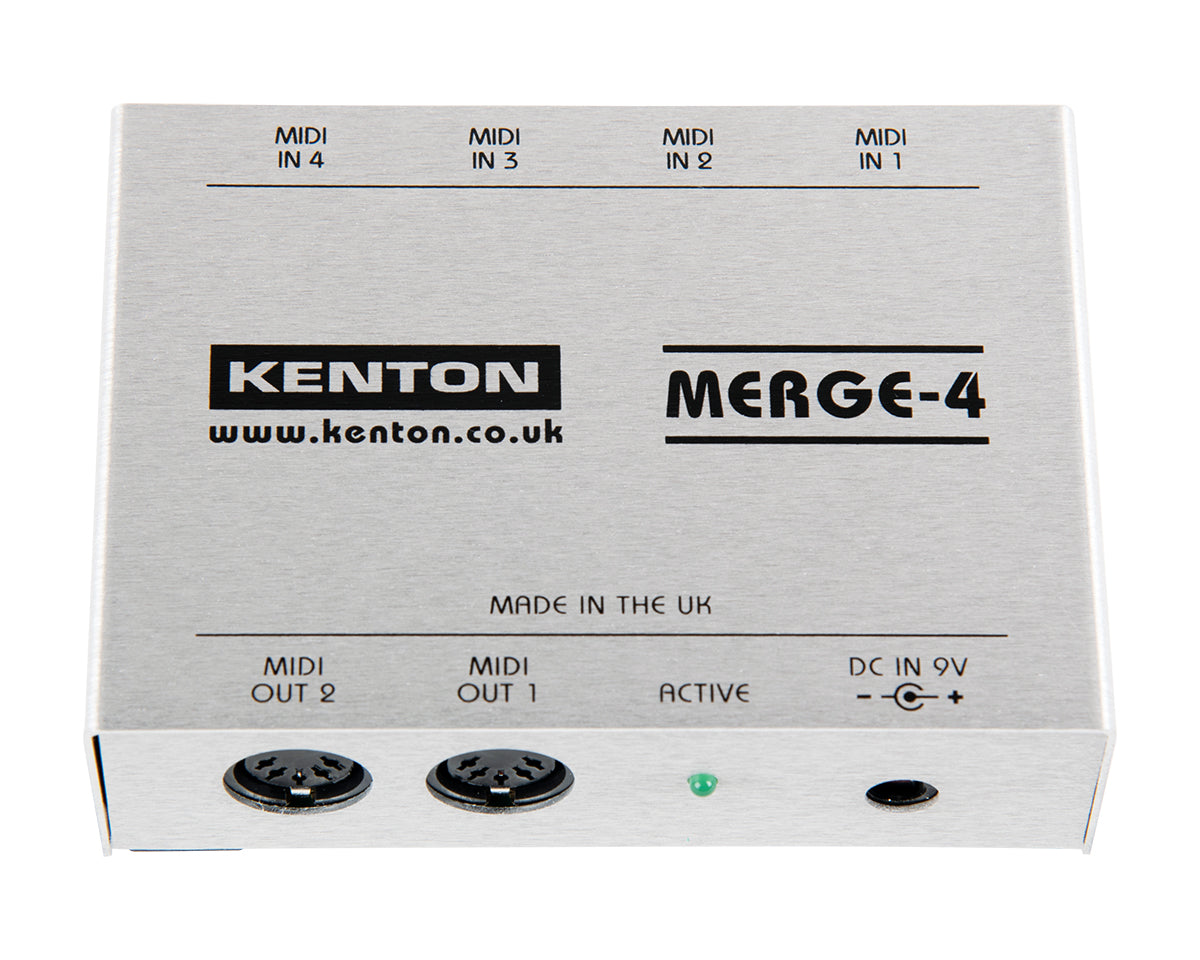

The Kenton Merge 4 4 In to 2 Out Merge Box allows you to connect four separate MIDI sources, and combine them all into a single MIDI data stream. This enables you to connect four MIDI controllers or keyboards, and merge all their data including MIDI clock, MIDI time code, and SysEx.
Features.
- Power: 9V DC (regulated or unregulated) – never apply more than 12V (never use an unregulated supply greater than 9V as
- unregulated supplies typically give a higher output than shown)
- Dimensions: 110 x 80 x 32 mm
- Weight: 150g (excluding power supply)
- MIDI: 4 x In, 2 x Out (both deliver the same data)
- Power Supply: 9V switch mode power supply supplied with unit.
- Other: 4 x opto isolated MIDI IN
- 2 x MIDI OUT (both carry the same MIDI data
- DC power input jack 2.1mm (centre +ve)
- Power indicator light
- Solid metal chassis
For any further information please refer to the manual
Includes multi-region power supply.
Product Specs
- Item Number: 20424
- Make: Kenton
- Model: Merge 4 - 4 MIDI IN to 2 OUT
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ keyboard-midi-controllers
- Made In: United Kingdom
- MPN: KTM4
- EAN: 5060491450857
