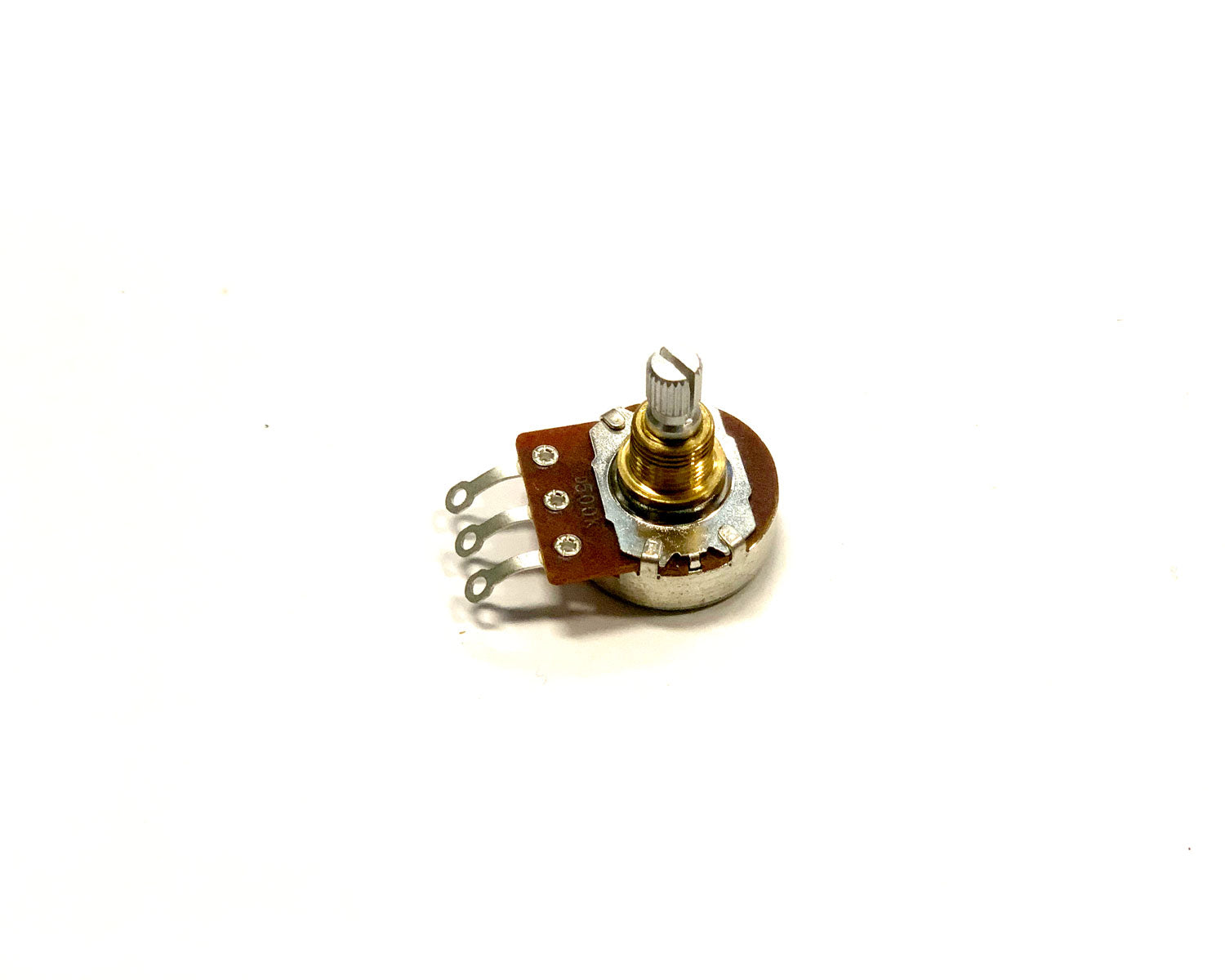

Bourns 500K PDA24 Audio Taper Split Shaft Short Bushing Potentiometer

500K audio taper potentiometer from Bourns’ PDA24 series, suited to electric guitars, bass guitars and guitar amplifiers. It features a split shaft, short bushing, long solder lugs and anti-rotation pins.

Specifications

• Resistance: 500K ohms
• Taper: Audio
• Resistance tolerance: ±15%
• Power rating: 0.25W (audio taper)
• Maximum operating voltage: 250V (audio taper)
• Mechanical rotation: 300° ±5°
• Rotational torque: 20–40 g-cm standard; 70–100 g-cm high
• Stop strength: 7 kg-cm minimum
• Rotational life: 200,000 shaft revolutions
• Rotational noise: 100mV maximum
• Operating temperature: -10°C to +70°C
• RoHS compliant

Soldering Conditions

• Manual soldering: 300°C within 3 seconds
• Wave soldering: 260°C within 5 seconds

Included Accessories

• Flat washer
• Mounting nut

Product Specs

• Item Number: 20355
• Make: Bourns
• Model: 500K PDA24 Audio Taper Split Shaft Short Bushing Potentiometer
• Condition: Brand New
• Categories: parts
• Made In: United States
• MPN: PDA24-500SB-1
• UPC: 820454949720
