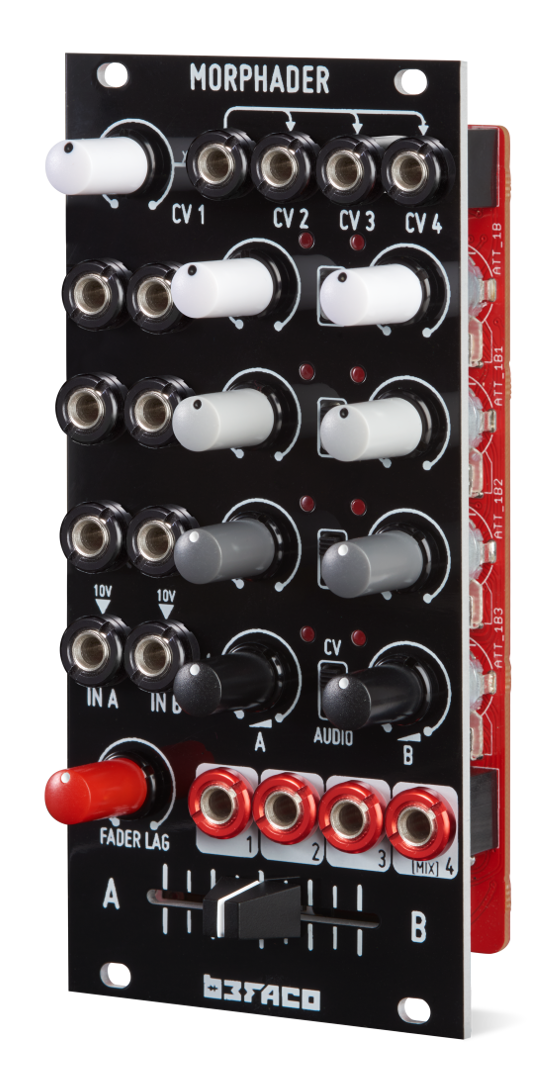

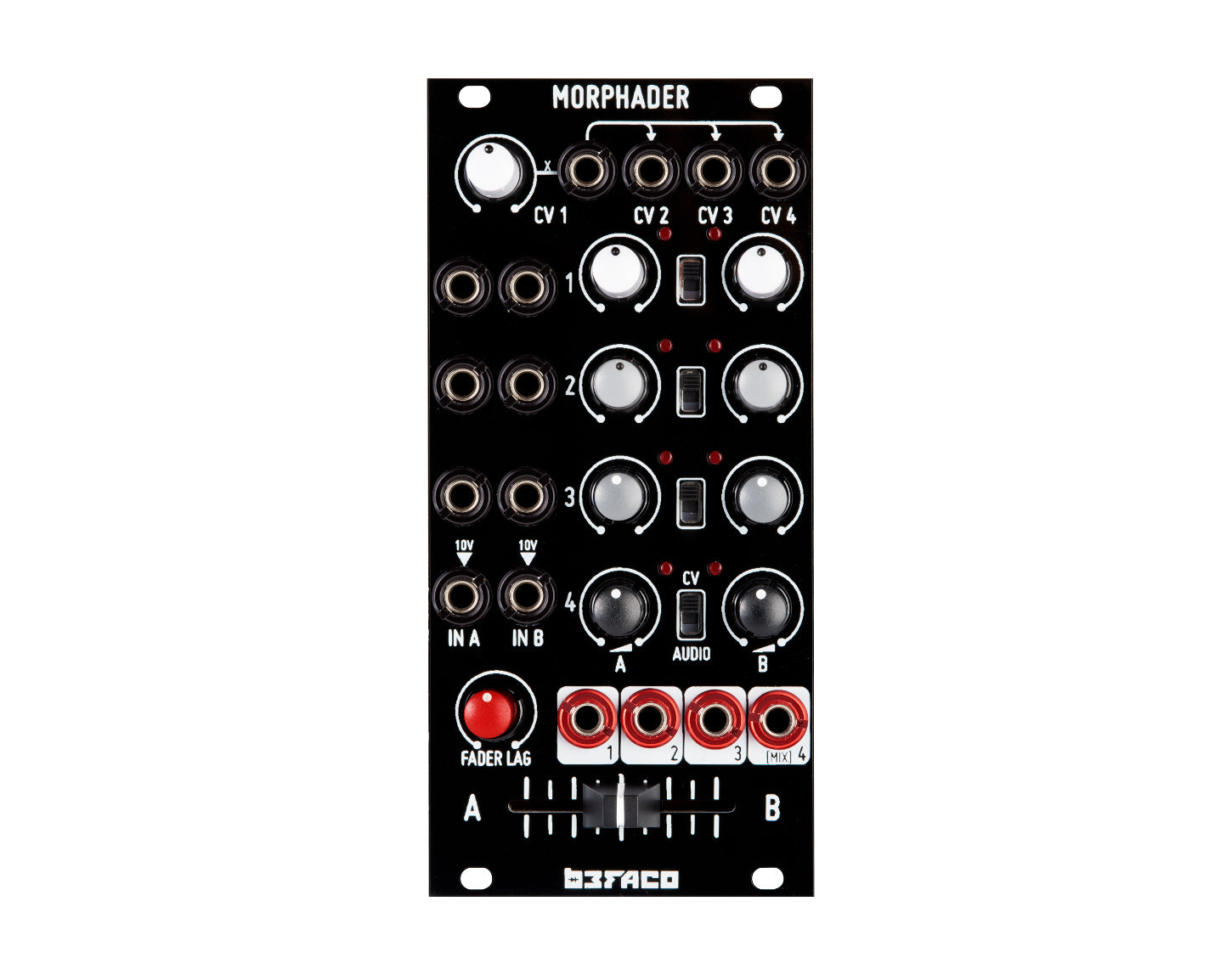

Befaco Morphader DiY Full Kit

The core of this 12hp module has four CV controlled crossfaders, each with their individual control and a master fader to control them all. The module mixes the four crossfades at its fourth output, thanks to a clever normalization scheme. Each of them can be easily removed from the mix by plugging a cable at its own output, providing a flexible mechanism to have several independat crossfades or a master scene fading. Morphader is a performative tool designed to make multichannel CV/Audio crossfade easy and comfortable. Fading from one quad CV/audio scene to another.

Main Features:

• CV Controlled four channel crossfader.
• Attenuators per input.
• Normalised voltages to every input, allowing cv levels morphing.
• Fader control to crossfade all channels at the same time.
• CV or Audio switch per channel to change resposne curve.
• Leds per channel for signal level monitoring. Specs:
• Current needs: +12V: 53mA, -12V: 50mA
• Width: 12 HP
• Depth: 26 mm (including power connector)

Video: https://youtu.be/EHVHul5TicM

Product Specs

• Item Number: 19631
• Make: Befaco
• Model: Morphader DiY Full Kit
• Condition: Brand New
• Finish: Black
• Categories: diy ⇒ kit
• Function: Controller CV Modulation Mixer Quad Utility
• Made In: Spain
• MPN: DIY036
• EAN: 8436590351314
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 12 HP 26 mm deep
• Power: 53 mA +12V 50 mA -12V 0 mA 5V
