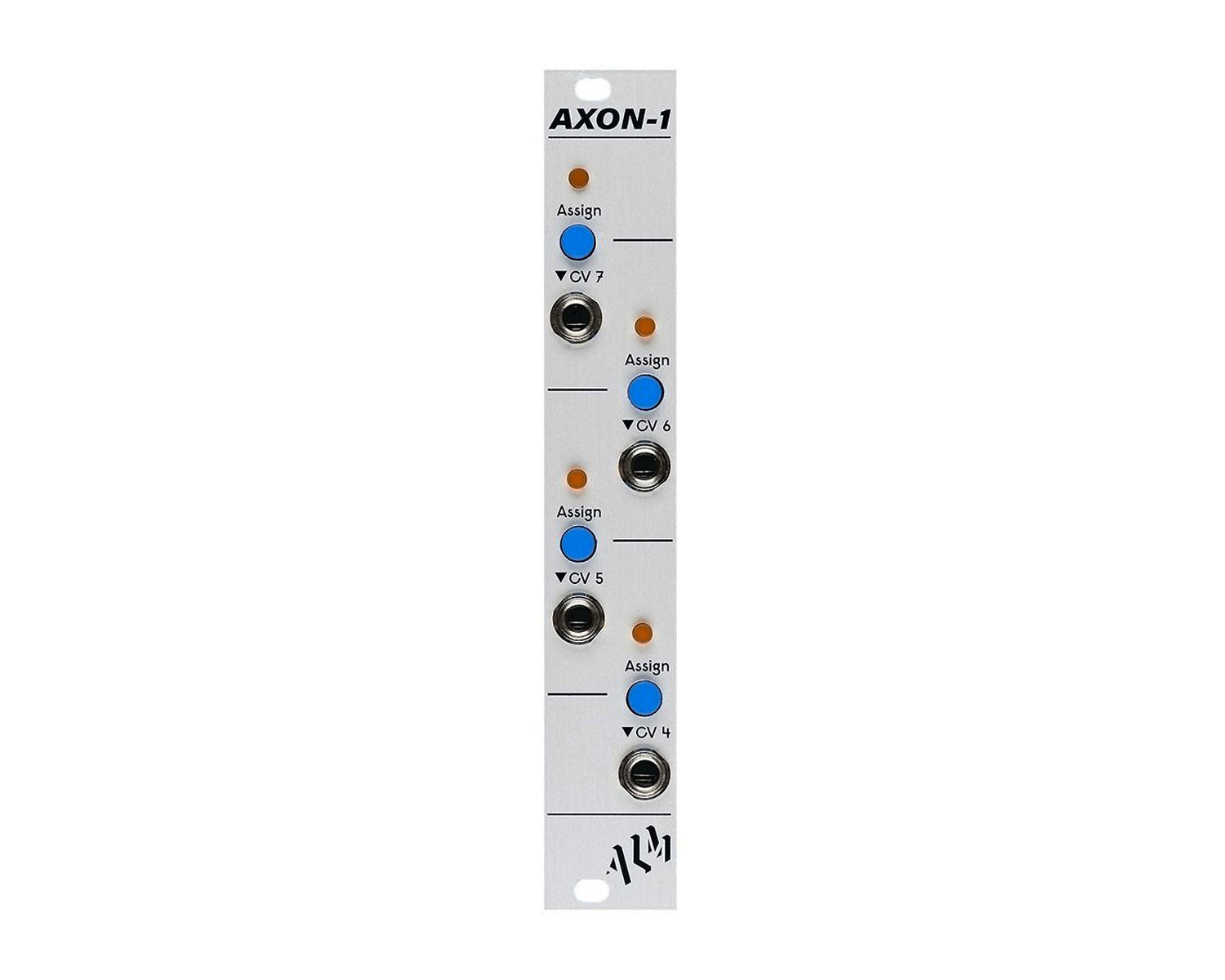

The ALM AXON-1 is a 4HP expander module for the Squid Salmple, MFX & Pamela's Pro Workout that provides 4 additional freely assignable CV inputs.
Adding the AXON-1 brings Squid’s total number of CV inputs to 7.
Each modulation assignment includes digital attenuation and offset, and behaves just like Squid’s 3 built in CV inputs.
AXON-1 requires firmware 166 or later installed on the Squid Salmple to function! See the Squid Manual for the update procedure.
Features:
- 4 Additional freely assignable CV inputs for the SQUID SALMPLE
- Per assignment digital attenuation and offset
- All assignments and settings saved with banks
- Powered directly from Squid, no additional power header required
Product Specs
- Item Number: 19574
- Make: ALM Busy Circuits
- Model: AXON-1
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Expander
- Made In: United Kingdom
- MPN: ALM022-EX1
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 4 HP 38 mm deep
- Power*: 40 mA +12V 0 mA -12V 0 mA 5V
* User contributed details
