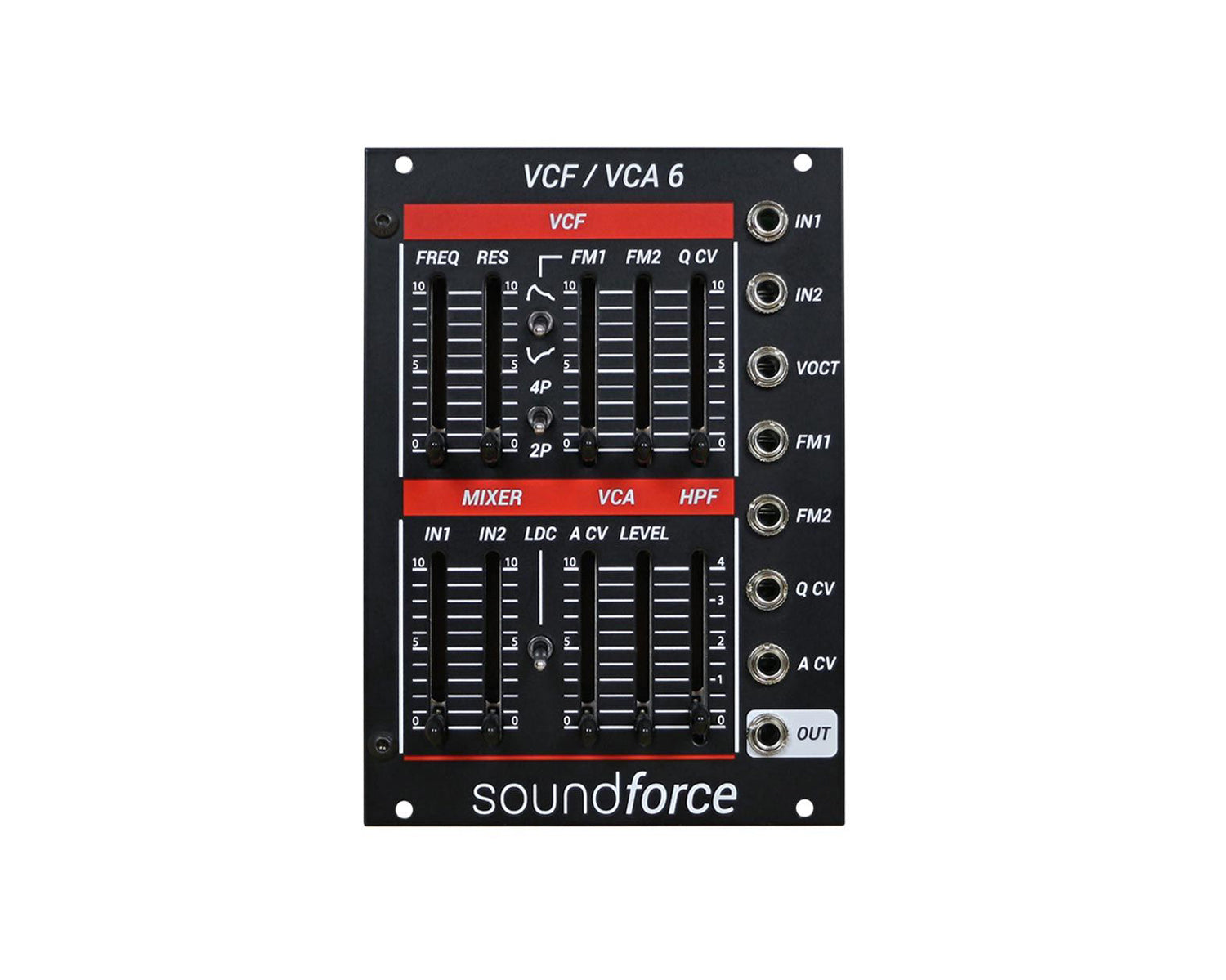

The VCF/VCF 6 is Soundforce's eurorack interpretation of the Juno 60/106's VCF, VCA and HPF sections. It was built using modern bits but based on the original manual's specs. As all the original custom ICs are unavailable for purchasing, the popular Texas Instruments LM13700 dual OTA IC was used to recreate the VCF and VCA using modern and widely available parts. All the passives needed have been taken over from the original schematics with some tweaks to adapt this design to the Eurorack format.
Video: https://youtu.be/ehN26GUSSm4
Product Specs
- Item Number: 19101
- Make: Soundforce
- Model: VCF/VCA 6 - Black
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Filter VCA
- Made In: Netherlands
- MPN: SF-VC-BLK
- Modular Grid: Eurorack ā ļ¼
- Dimensions: 18 HP 38 mm deep
- Power: 91 mA +12V 51 mA -12V ? mA 5V
