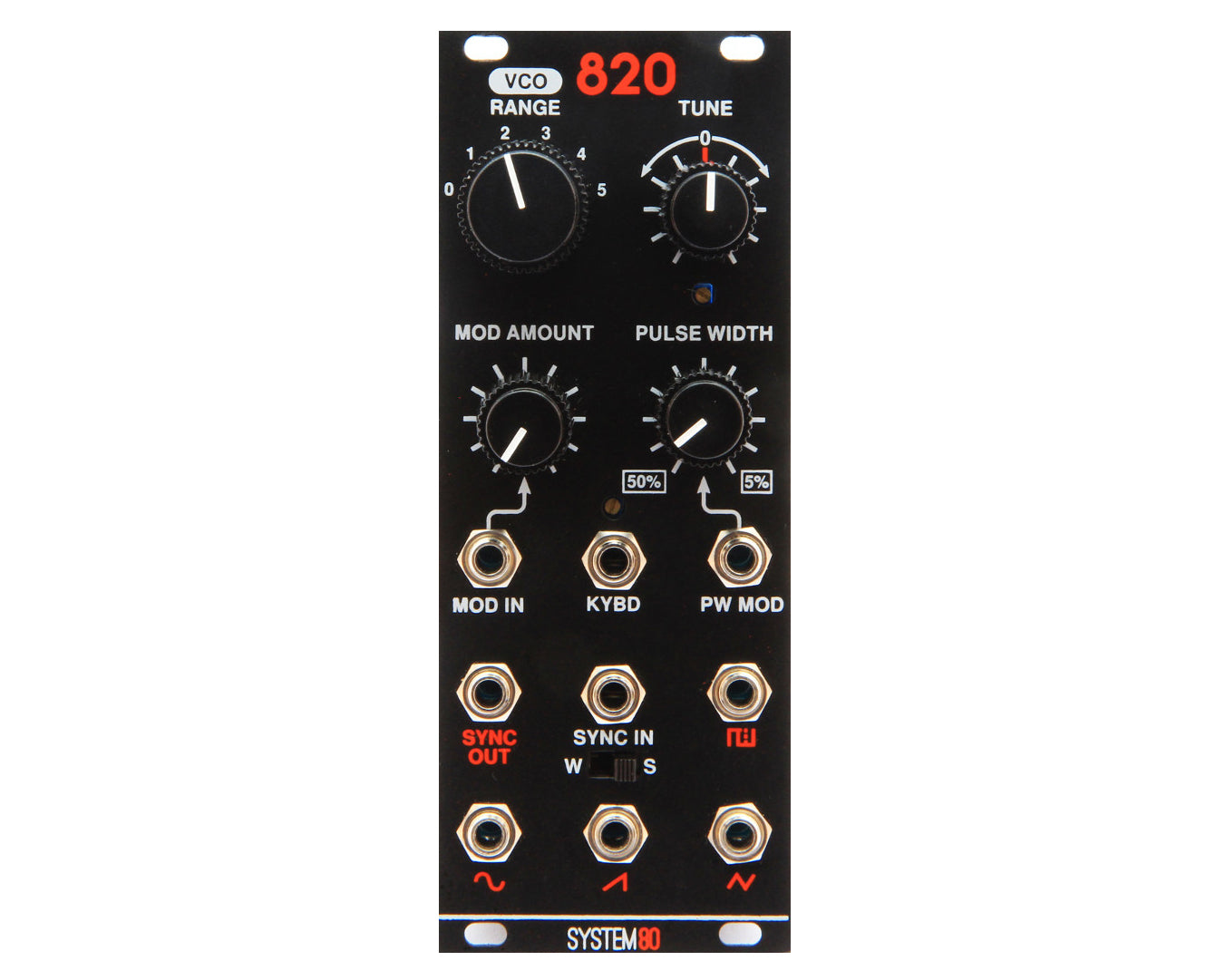

System80 820 Discrete Analog VCO Eurorack Module

The System80 820 Eurorack Oscillator is a utility Voltage Controlled Oscillator (VCO) based on the saw integrator and waveshapers common to many vintage Roland designs from the late 1970s. It features a discrete temperature compensated saw (ramp) core coupled to waveshaping circuitry that produces a pulse wave with adjustable width, a triangle wave and a sine wave. The conversion of the saw wave to a triangle wave produces a distinctive reset glitch at each peak. The triangle wave is bent by a diode shaper to produce an approximate sine wave.

Features

• Discrete Voltage Controlled Oscillator with temperature compensated exponential converter
• 1 V/octave tracking over 8 octaves
• Sync input with weak and strong oscillator sync modes
• 1 V/octave CV input + one attenuated exponential CV inputs for pitch/frequency modulation
• Five position octave range switch
• Waveform outputs: Pulse, Ramp, Triangle, and Sine
• Pulse Width Modulation CV input

PRICE TBC.

Product Specs

• Item Number: 18952
• Make: System80
• Model: 820
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Oscillator
• Made In: Canada
• MPN: S80-820MK2
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 10 HP 30 mm deep
• Power: 15 mA +12V 15 mA -12V 0 mA 5V
