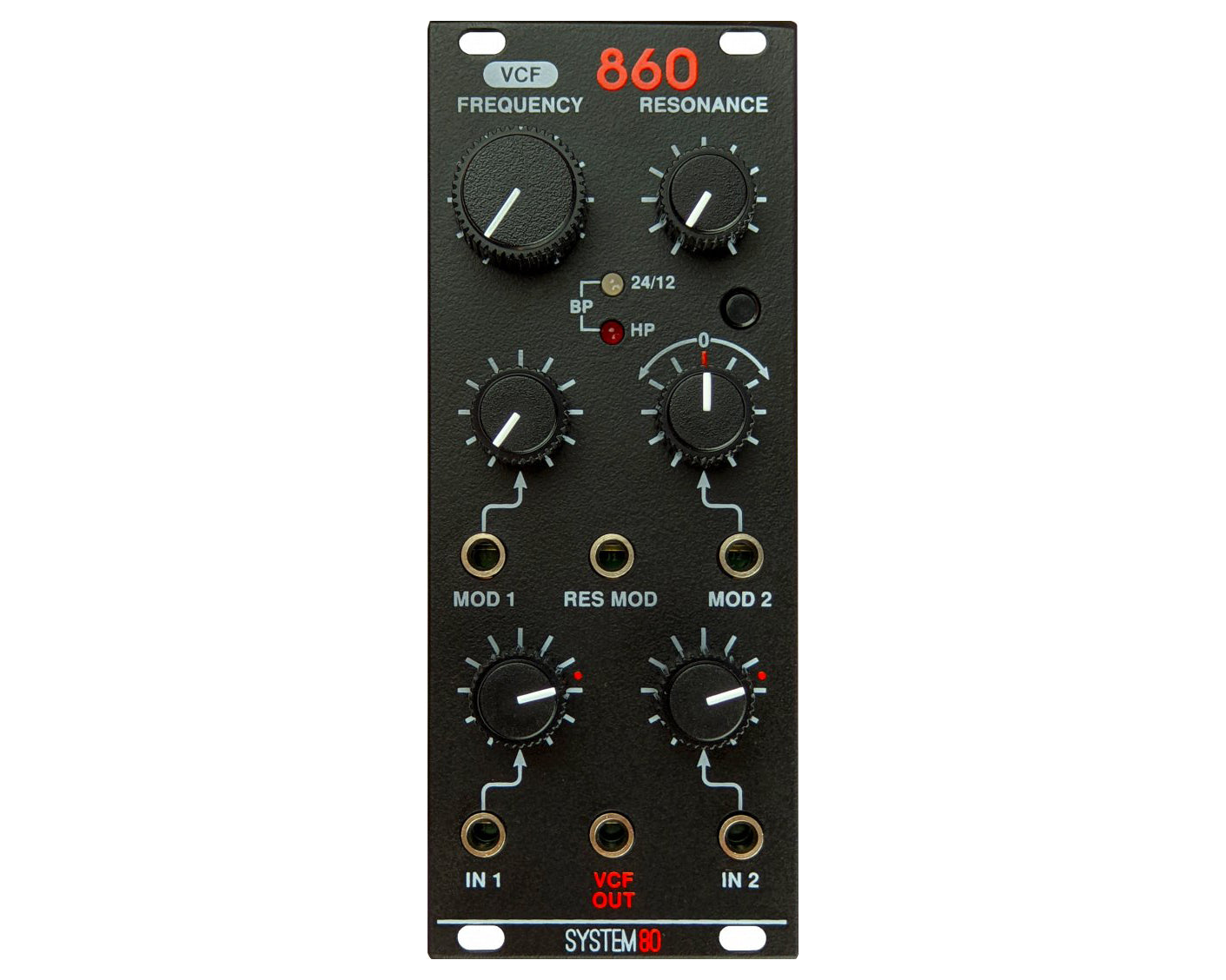

The System80 860MK2 is a 10 HP updated version of System80's popular JOVE filter. It is a Eurorack interpretation of the multi-mode filter found in Roland's monstrous Jupiter-6.
The 860 MK2 replaces both the 14 HP JOVE and the 8 HP 860 MK1. It has been updated and improved in several ways, including memory recall of the filter mode, a quad OTA filter core, internal voltage references, a fully attenuated 2 input audio mixer, and a steel back cover.
Features
- 4 modes: 24 dB low pass, 12 dB low pass, band pass and high pass
- Filter mode recalled between power cycles
- 2 input audio mixer
- 2 frequency CV inputs, one bipolar and one unipolar
- 1 resonance CV input, non-attenuated
Video: https://youtu.be/8yviO7WSOrk
Product Specs
- Item Number: 18950
- Make: System80
- Model: 860 MK2
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Filter Mixer
- Made In: Canada
- MPN: SYS80-860MK2
- Modular Grid: Eurorack ā ļ¼
- Dimensions: 10 HP 32 mm deep
- Power: 40 mA +12V 30 mA -12V 0 mA 5V
