Erica Synths Black LPG is designed from scratch featuring 2nd order lowpass VCF (the original Buchla lowpass gate was 1st order VCF) and VCA combo with distinct resonance circuit on top.
Voltage control over VCF cutoff frequency/VCA offset and mode (VCF/VCF+VCA/VCA), as well as built in decay envelope generator makes it a versatile module for sound shaping in any modular setup.
Features
- Three vactors for 2nd order VCF
- VCF/VCF+VCA/VCA modes
- Manual and voltage controlled cutoff/offset
- Manually and voltage controlled mode selection
- Manually resonance depth control
- Resonance overdrive switch
- Built in decay envelope generator
- Manually and voltage controlled decay time
- Envelope CV output
- Skiff-friendly design
Video: https://youtu.be/-ooj9Wuqzrc
Product Specs
- Item Number: 17133
- Make: Erica Synths

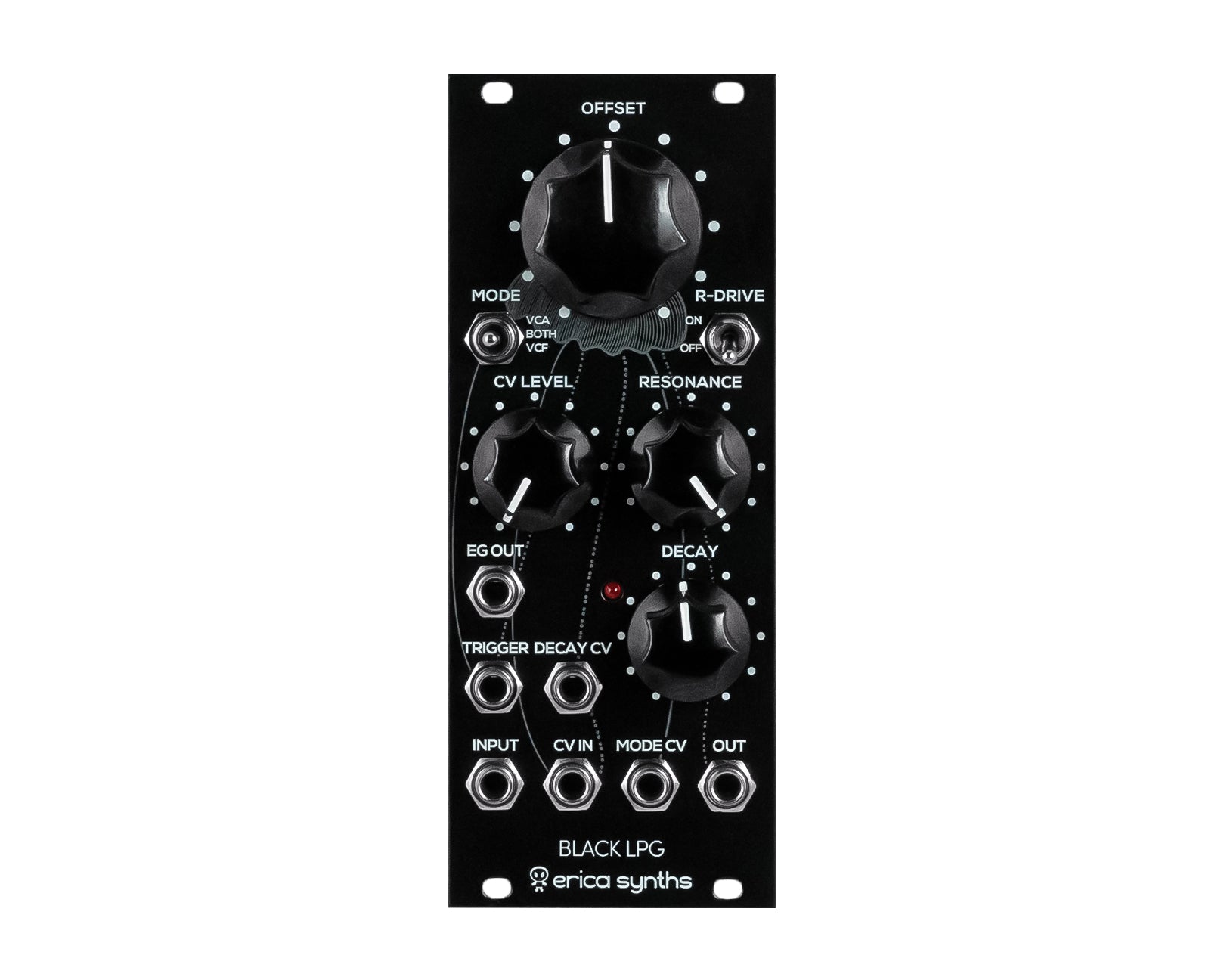

- Model: Black LPG
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Envelope Generator Filter Low Pass Gate VCA
- Made In: Latvia
- MPN: ES-BLPG
- EAN: 4751030828350
- Modular Grid: Eurorack ā ļ¼
- Dimensions: 10 HP 25 mm deep
- Power: 44 mA +12V 45 mA -12V 0 mA 5V
