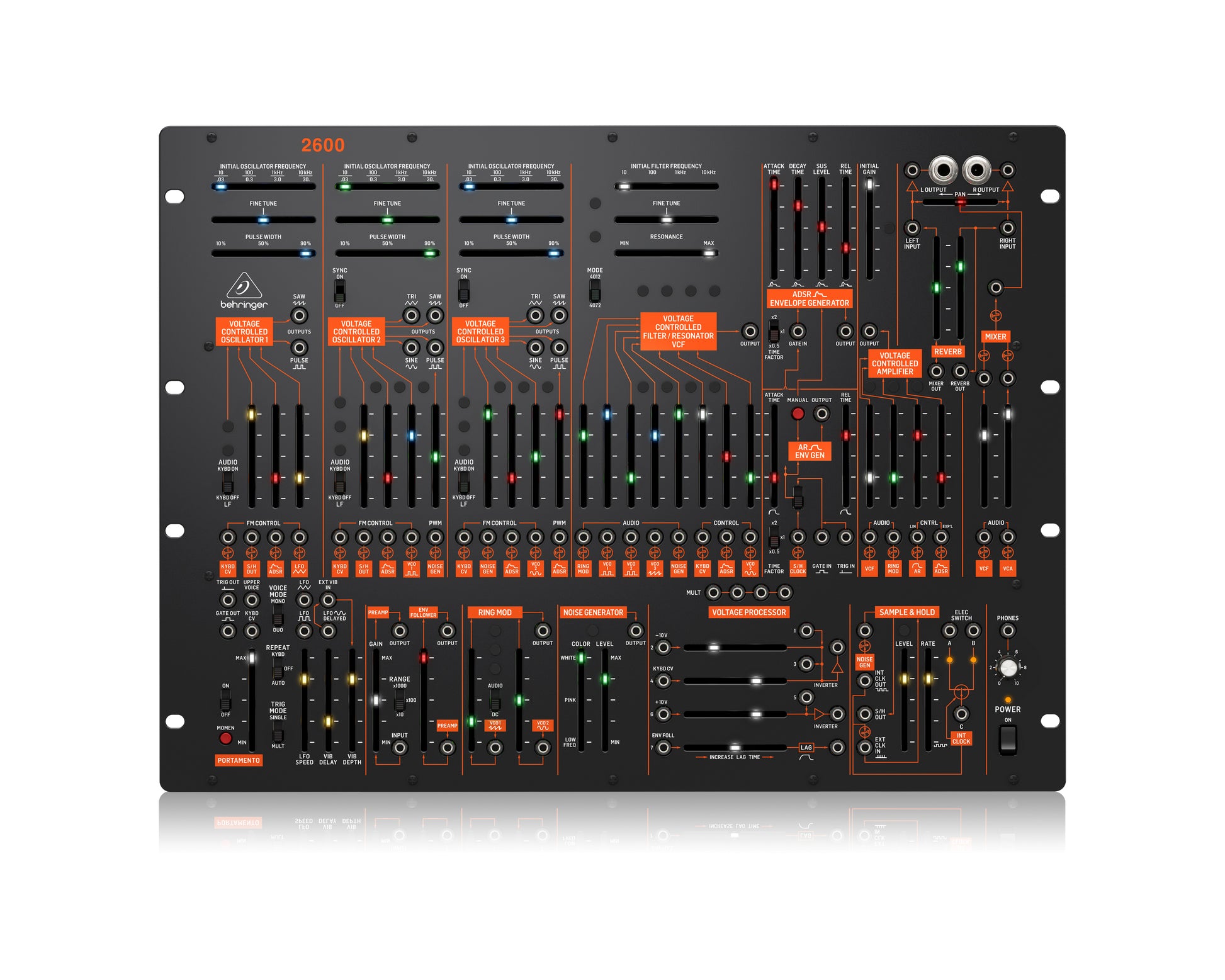

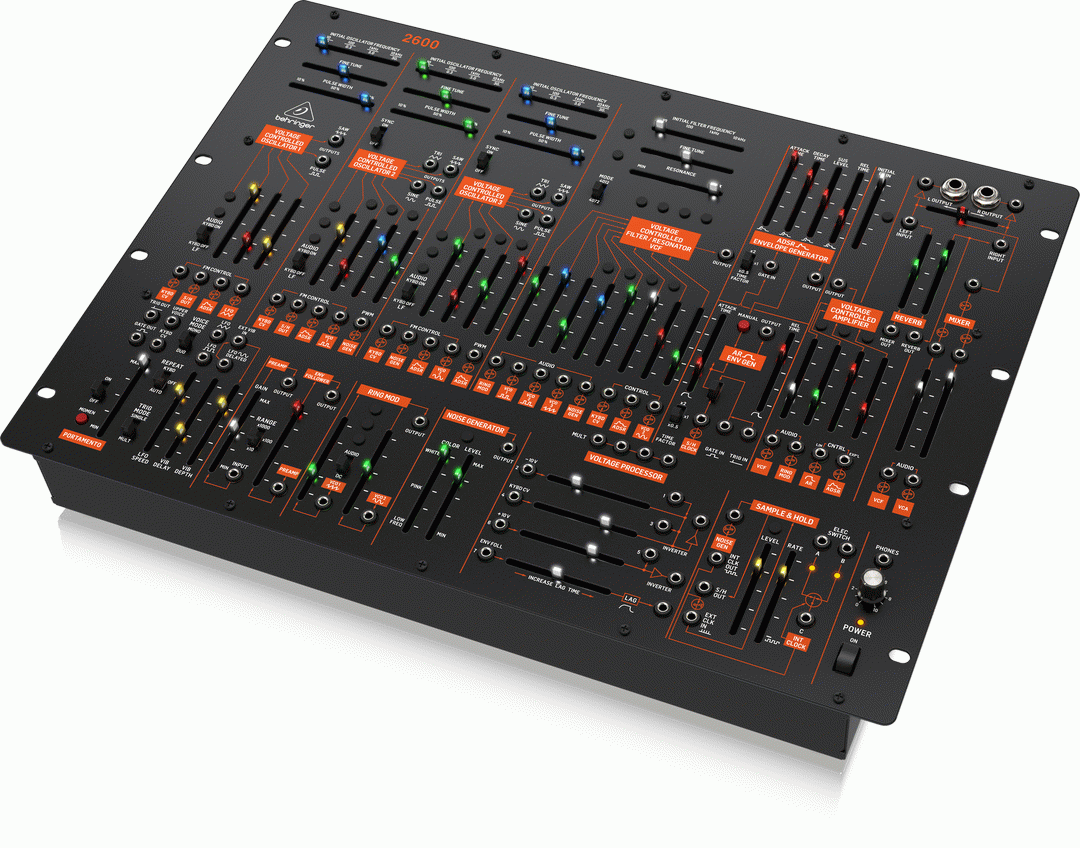

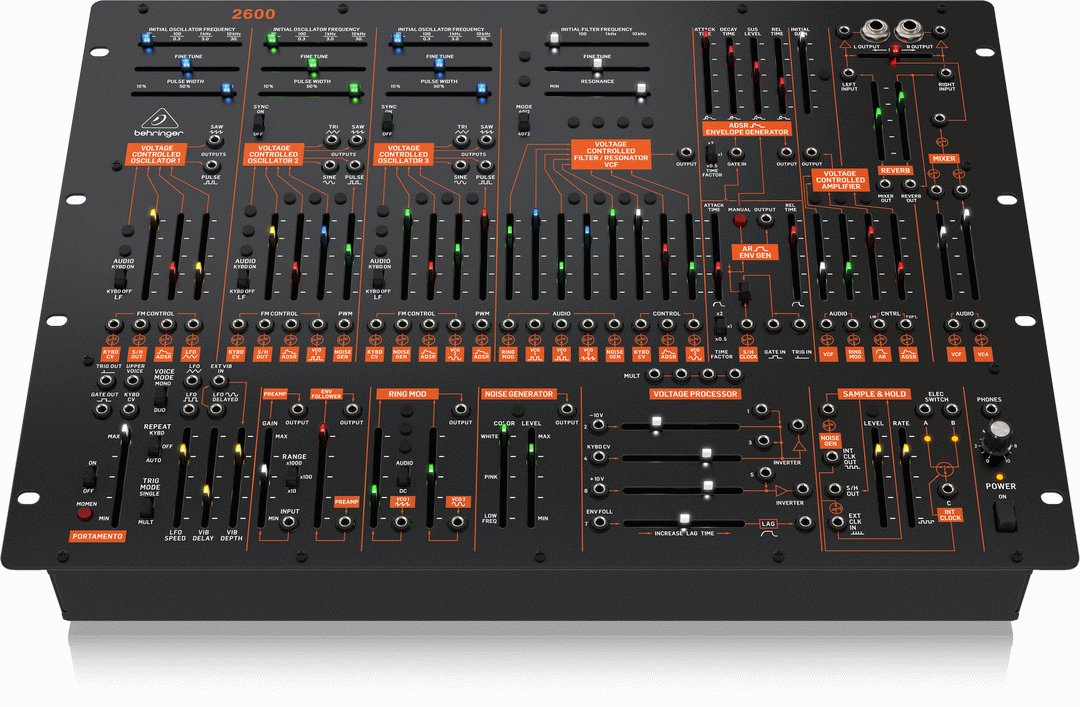

Behringer 2600 Semi Modular Analogue Synthesizer

An ultra-affordable and even more feature-packed homage to the iconic ARP 2600. The Behringer 2600 combines true-to-original analog circuitry, semi-modular architecture and triple VCO designs in a faithful recreation of the 2600.

Specifications

VCO 1 / 2 / 3

• Frequency modulation (FM) control: 11 x 3.5 mm TS jacks, CV range: -10 V to +10 V
• Pulse width modulation (PWM): 2 x 3.5 mm TS jack, CV range: -5 V to +5 V, 1 V/10%

VCF

• Audio: 5 x 3.5 mm TS jacks, 50 kΩ unbalanced
• Control: 3 x 3.5 mm TS jacks, CV range: -10 V to +10 V
• ADSR / AR envelope generator
• S&H clock: 1 x 3.5 mm TS jack, threshold: > 6 V
• Gate in: 1 x 3.5 mm TS jack, threshold: +4 V
• Trig in: 1 x 3.5 mm TS jack, threshold: +5 V

VCA

• Audio: 2 x 3.5 mm TS jacks, 50 kΩ unbalanced
• Control (linear): 1 x 3.5 mm TS jack, CV range: -10 V to +10 V
• Control (exponential): 1 x 3.5 mm TS jack, CV range: -10 V to +10 V

Mixer / Reverb

• Audio: 2 x 3.5 mm TS jacks, 50 kΩ unbalanced
• Left / right inputs: 2 x 3.5 mm TS jacks, 50 kΩ unbalanced

LFO

• Ext vib in: 1 x 3.5 mm TS jack, 50 kΩ unbalanced

Envelope Follower

Product Specs

• Item Number: 16377
• Make: Behringer
• Model: 2600
• Condition: Brand New
• Finish: China
• Categories: keyboards-and-synths ⇒ modular-synths
• Made In: China
• MPN: 2600
