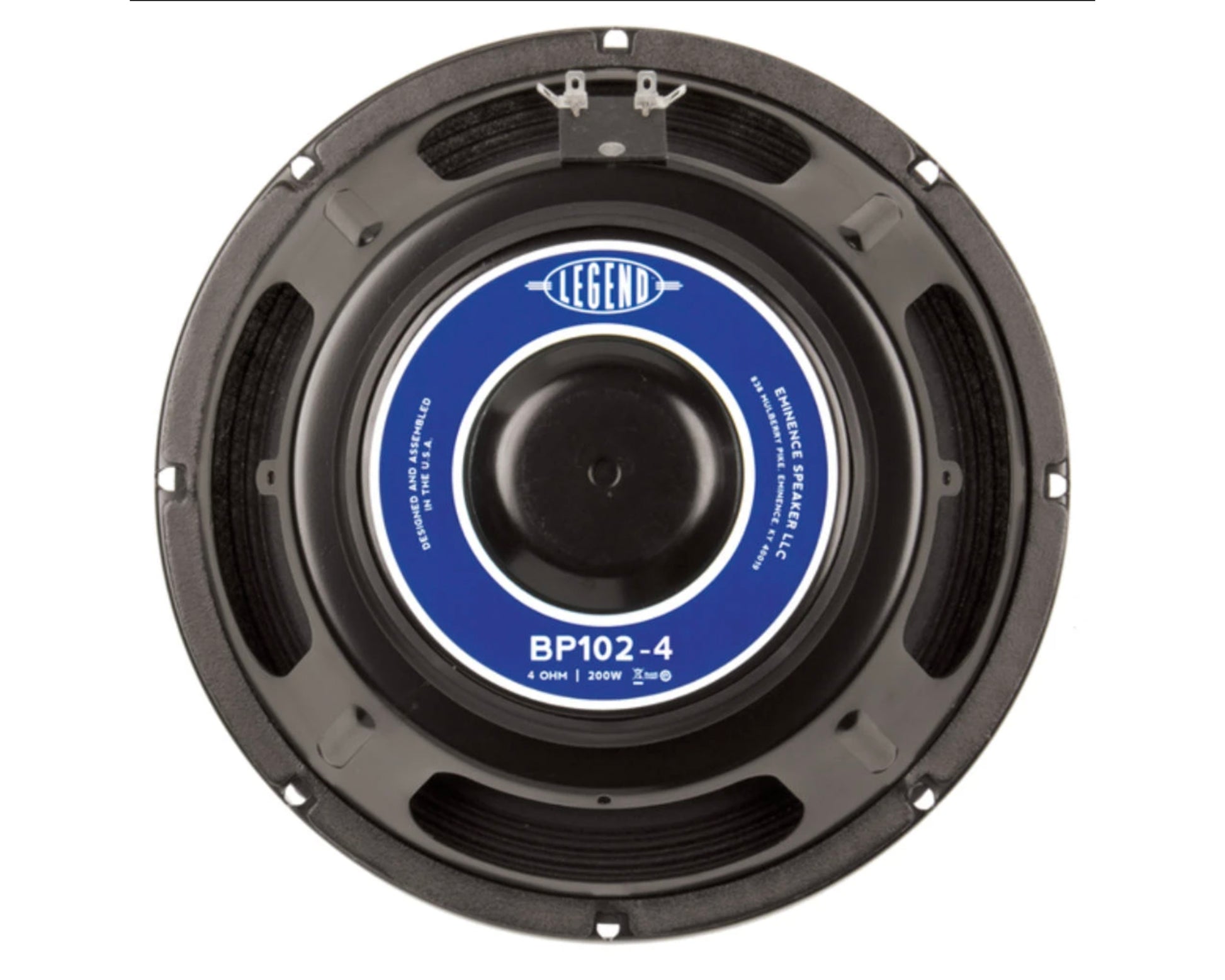

The Eminence Legend 200 Watt, 4 Ohm bass guitar 10" speaker is recommended for professional bass guitar applications in a sealed or vented enclosure. Works well in single or multi driver designs.
Features a truncated cast frame chassis for tight fitting in your 2x, 4x and 8x10 cabinet.
SPECIFICATIONS
- Nominal Basket Diameter: 10", 254 mm
- Nominal Impedance: 4 Ω
- Watts: 200 W
- Resonance: 55 Hz
- Usable Frequency Range: 54 Hz - 3 kHz
- Sensitivity: 94.4 dB
- Magnet Weight: 38 oz.
- Gap Height: 0.312", 7.9 mm
- Voice Coil Diameter: 2", 51 mm
MOUNTING INFORMATION
- Recommended Enclosure Volume: Sealed: N/a Vented: Acceptable
- Driver Volume Displaced: 0.043 cu.ft. / 1.22 liters
- Overall Diameter: 10.5", 266.7 mm
- Baffle Hole Diameter: 9.01", 228.9 mm
- Front Sealing Gasket: Yes
- Rear Sealing Gasket: Yes
- Mounting Holes Diameter: 0.3", 7.6mm
- Mounting Holes B.C.D: 9.71", 246.5mm
- Depth: 4.44", 112.8 mm
- Net Weight: 8.8 lbs, 3.99 kg
- Shipping Weight 9.7 lbs, 4.4 kgs.
MATERIALS OF CONSTRUCTION
- Coil Construction: Copper voice coil
- Coil Former: Kapton former
- Magnet Composition: 38 oz. Ferrite magnet
- Core Details: Vented and extended core
- Basket Materials: Die-cast aluminum basket
- Cone Composition: Paper cone
- Cone Edge Composition: Cloth cone edge
- Dust Cap Composition: Treated paper dust cap
Product Specs
- Item Number: 16209
- Make: Eminence
- Model: Legend 10" 200W 4Ω Bass Speaker
- Condition: Brand New
- Finish: Black
- Categories: parts ⇒ replacement-speakers
- Made In: United States
- MPN: LEGENDBP102-4
