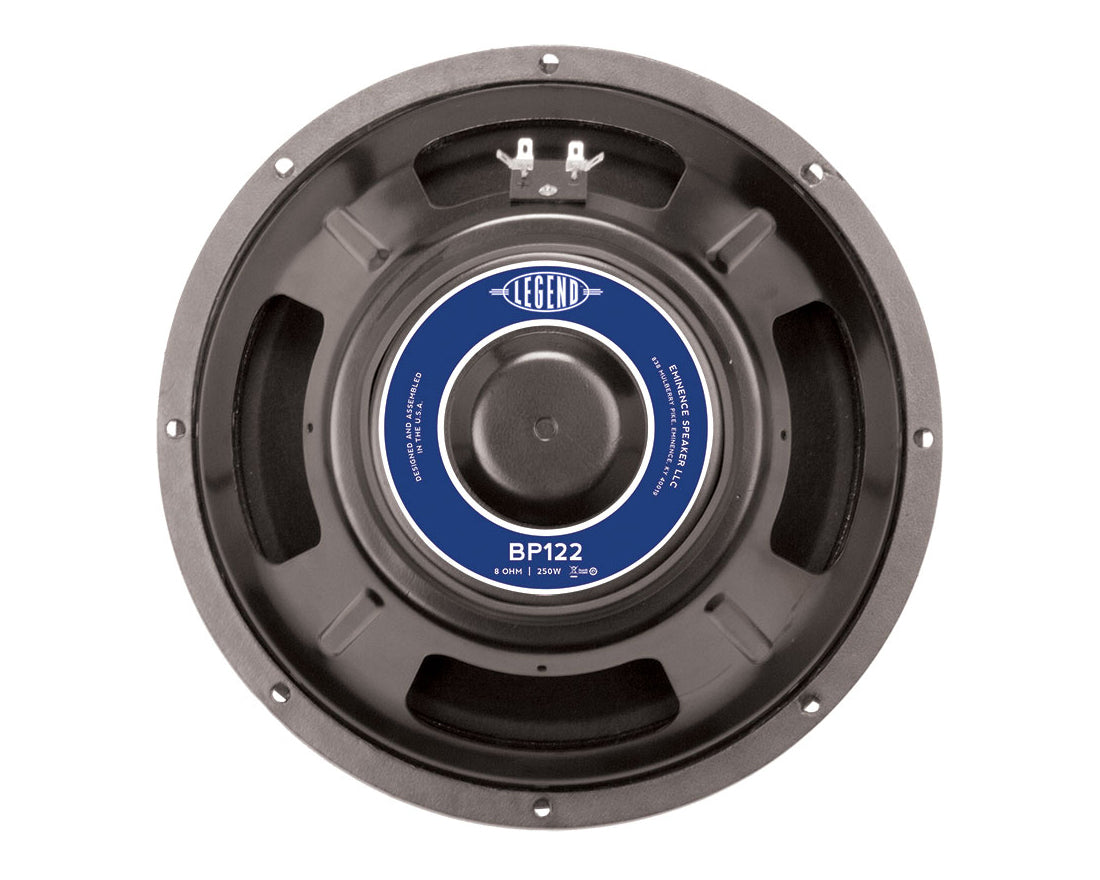

The Eminence Legend 250 Watt 8 Ohm Bass 12" speaker delivers warm, rich tone and deep bass. This 250 watt driver is at home in small sealed enclosures and also works well in Pro Audio and Home Hi-Fi applications.
SPECIFICATIONS
- Nominal Basket Diameter: 12", 305 mm
- Nominal Impedance: 8 Ω
- Watts: 250 Watts
- Resonance: 35 Hz
- Usable Frequency Range: 35 Hz - 2.3 kHz
- Sensitivity: 94.1 dB
- Magnet Weight: 38 oz.
- Gap Height: 0.3125", 7.9 mm
- Voice Coil Diameter: 2", 51 mm
MOUNTING INFORMATION
- Recommended Enclosure Volume: Sealed: Acceptable, Vented: Acceptable
- Driver Volume Displaced: 0.071 cu.ft. / 2 liters
- Overall Diameter: 12.26", 311.4 mm
- Baffle Hole Diameter: 11.08", 281.4 mm
- Front Sealing Gasket: Yes
- Rear Sealing Gasket: Yes
- Mounting Holes Diameter: 0.25", 6.4mm
- Mounting Holes B.C.D: 11.71", 297.4mm
- Depth: 5.33", 135.3 mm
- Net Weight: 9 lbs, 4.08 kg
- Shipping Weight: 11 lbs, 4.99 kgs
MATERIALS OF CONSTRUCTION
- Coil Construction: Copper voice Coil
- Coil Former: Polyimide former
- Magnet Composition: Ferrite magnet
- Core Details: Non-vented core
- Basket Materials: Pressed Steel basket
- Cone Composition: Paper cone
- Cone Edge Composition : Cloth cone edge
- Dust Cap Composition: Solid composition felt dust cap
Product Specs
- Item Number: 16208
- Make: Eminence
- Model: Legend 12" 250W 8Ω Bass Speaker
- Condition: Brand New
- Finish: Black
- Categories: parts ⇒ replacement-speakers
- Made In: United States
- MPN: LEGENDBP122
