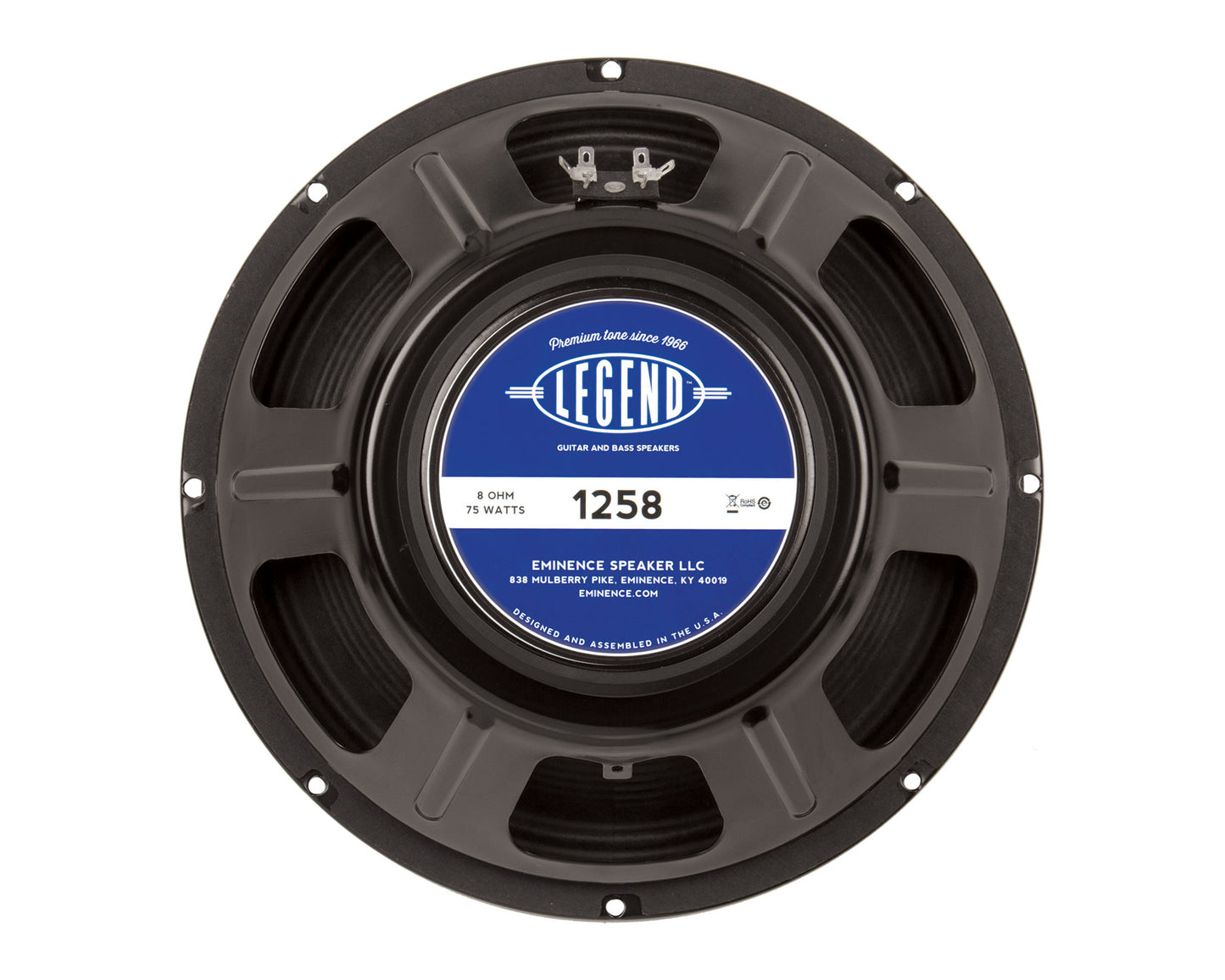

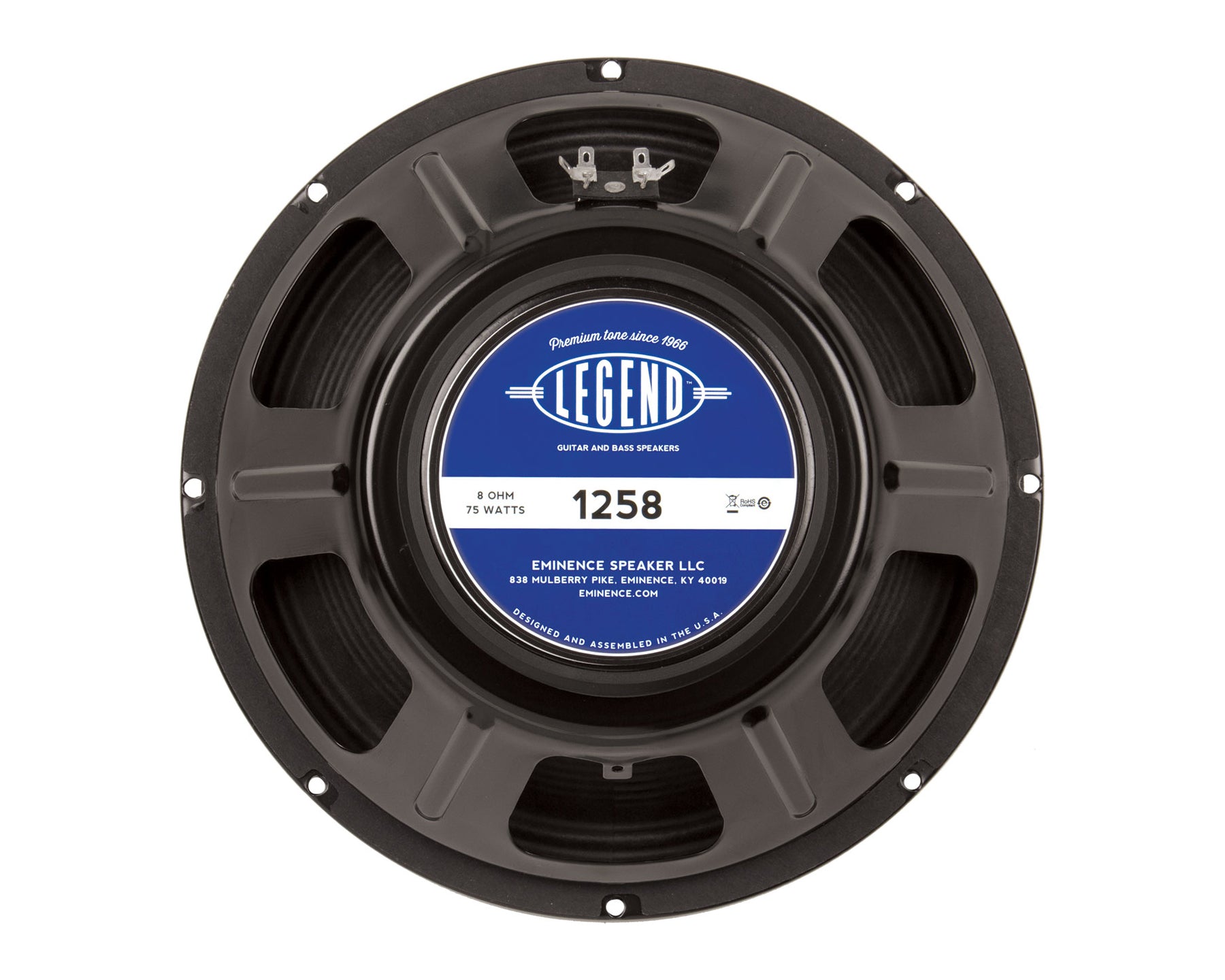

The Eminence Legend 1258 75 Watt, 8 Ohm guitar speaker is perfect for blues and rock. Pure vintage American tone with tight lows and warm, smooth mids and highs. Ideal as a replacement or upgrade for many of your favourite classic amps.
SPECIFICATIONS
- Nominal Basket Diameter: 12", 305 mm
- Nominal Impedance: 8 Ω
- Watts: 75 Watts
- Resonance: 94 Hz
- Usable Frequency Range: 80 Hz - 4 kHz
- Sensitivity: 100.1 dB
- Magnet Weight: 34 oz.
- Gap Height: 0.312", 7.9 mm
-
Voice Coil Diameter: 1.5", 38 mm
-
Recommended Enclosure Volume: Sealed: N/a, Vented: Acceptable
- Driver Volume Displaced 0.069 cu.ft. / 1.96 liters
- Overall Diameter 12.03", 305.6 mm
- Baffle Hole Diameter: 11.07", 281.2 mm
- Front Sealing Gasket: Yes
- Rear Sealing Gasket: Yes
- Mounting Holes Diameter: 0.25", 6.4mm
- Mounting Holes B.C.D: 11.59", 294.4mm
- Depth: 4.9", 124.5 mm
- Net Weight: 7.8 lbs, 3.54 kg
- Shipping Weight 9.9 lbs, 4.49 kgs
MATERIALS OF CONSTRUCTION
- Coil Construction: Copper voice coil
- Coil Former: Polyimide former
- Magnet Composition: Ferrite magnet
- Core Details: Non-vented core
- Basket Materials: Pressed steel basket
- Cone Composition: Paper cone
- Cone Edge Composition Paper cone edge
- Dust Cap Composition: Solid composition paper dust cap
Product Specs
- Item Number: 16205
- Make: Eminence
- Model: Legend 12" 75W 8Ω
- Condition: Brand New
- Finish: Black
- Categories: parts ⇒ replacement-speakers
- Made In: United States
- MPN: LEGEND1258
