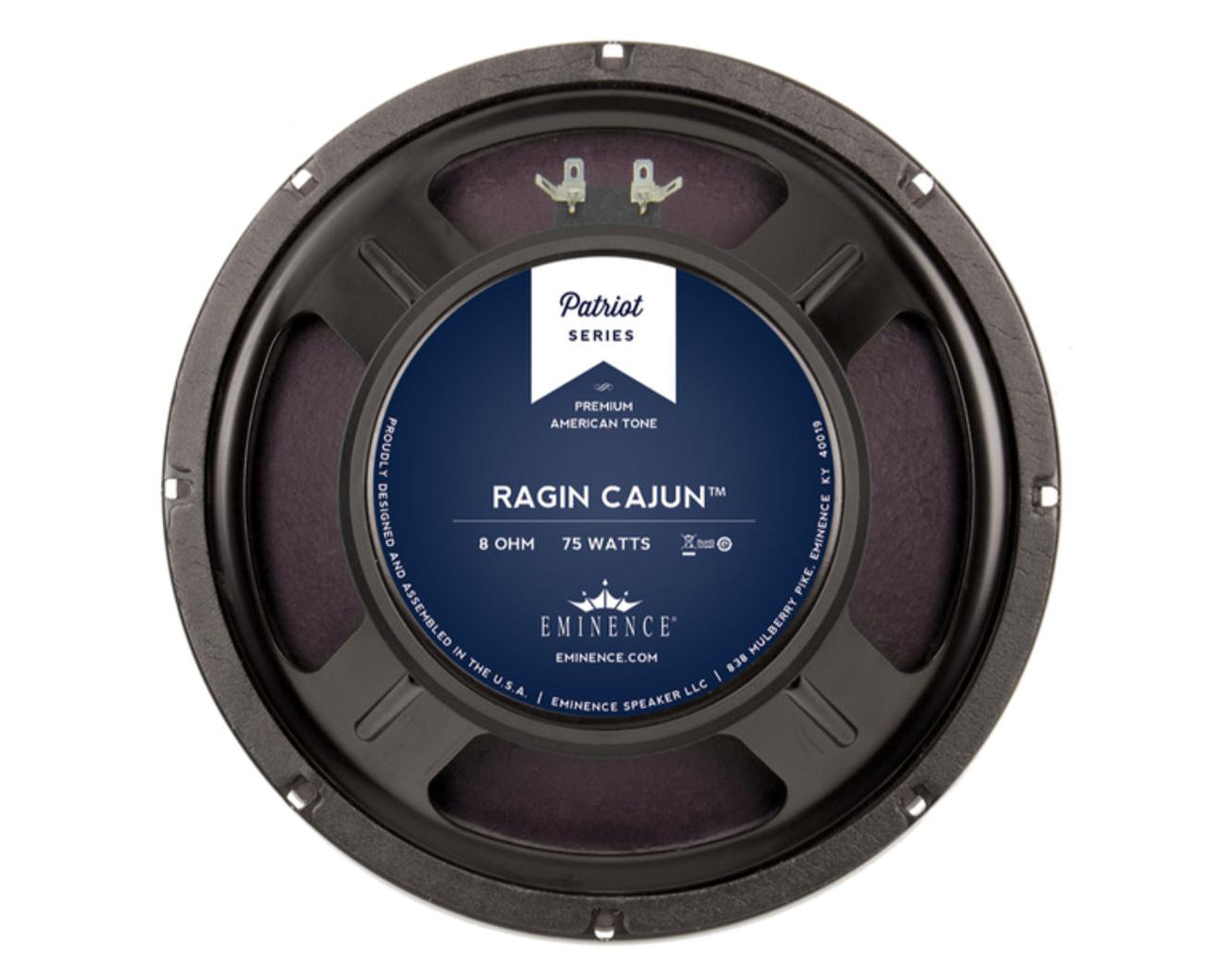

Eminence Ragin' Cajun 10" 75W 8Ω Speaker

Eminence Ragin' Cajun 10" 75W 8Ω Speaker

Product type
NEW
Regular price
$285.00
Sale price
$285.00
Out of stock
Unit price
per
GST inclusive Shipping calculated at checkout.

The Eminence Patriot Series Ragin Cajun 75 Watt, 10", 8 Ohm guitar speaker is very loud, touch sensitive and responsive with nice bell sounding top end and a little bite.

SPECIFICATIONS

  • Nominal Basket Diameter: 10", 254 mm
  • Nominal Impedance: 8 Ω
  • Watts: 75 W
  • Resonance: 84 Hz
  • Usable Frequency Range: 80 Hz - 5 kHz
  • Sensitivity: 100.5 dB
  • Magnet Weight: 30 oz.
  • Gap Height: 0.31", 7.9 mm
  • Voice Coil Diameter: 1.5", 38 mm

MOUNTING INFORMATION

  • Recommended Enclosure Volume: Sealed: Acceptable. Vented: Acceptable
  • Driver Volume Displaced: 0.039 cu.ft. / 1.1 liters
  • Overall Diameter: 10.11", 256.8 mm
  • Baffle Hole DiameterL 9.13", 231.9 mm
  • Front Sealing Gasket: Yes
  • Rear Sealing Gasket: Yes
  • Mounting Holes Diameter: 0.23", 5.8mm
  • Mounting Holes B.C.D: 9.6", 243.8mm
  • Depth: 3.8", 96.5 mm
  • Net Weight: 6.4 lbs, 2.9 kg
  • Shipping Weight: 8.2 lbs, 3.72 kgs

MATERIALS OF CONSTRUCTION

  • Coil Construction: Copper voice coil
  • Coil Former: Polyimide former
  • Magnet Composition: Ferrite magnet
  • Core Details: Non-vented core
  • Basket Materials: Pressed steel basket
  • Cone Composition: Paper cone
  • Cone Edge Composition: Paper cone edge
  • Dust Cap Composition: Zurette dust cap
