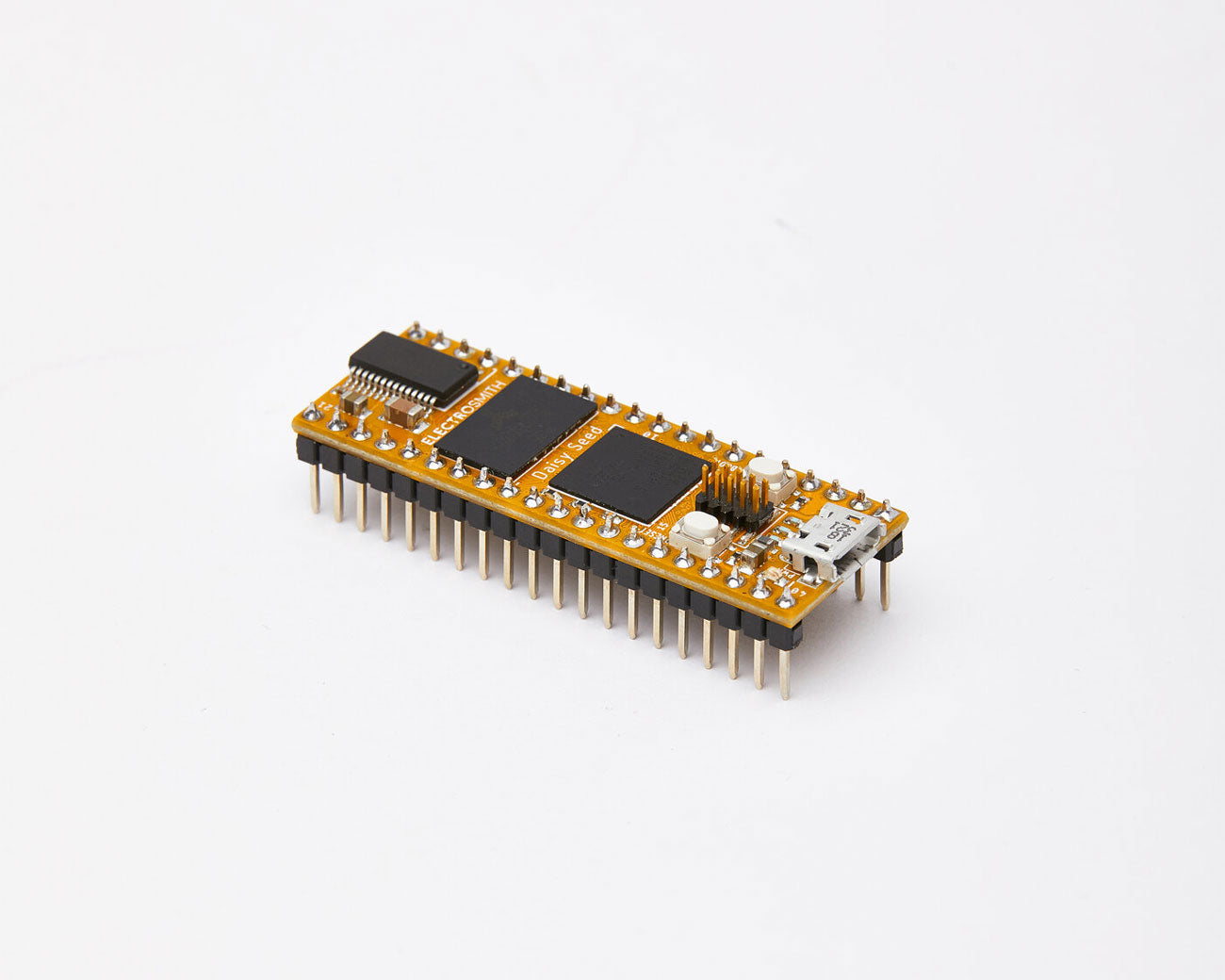

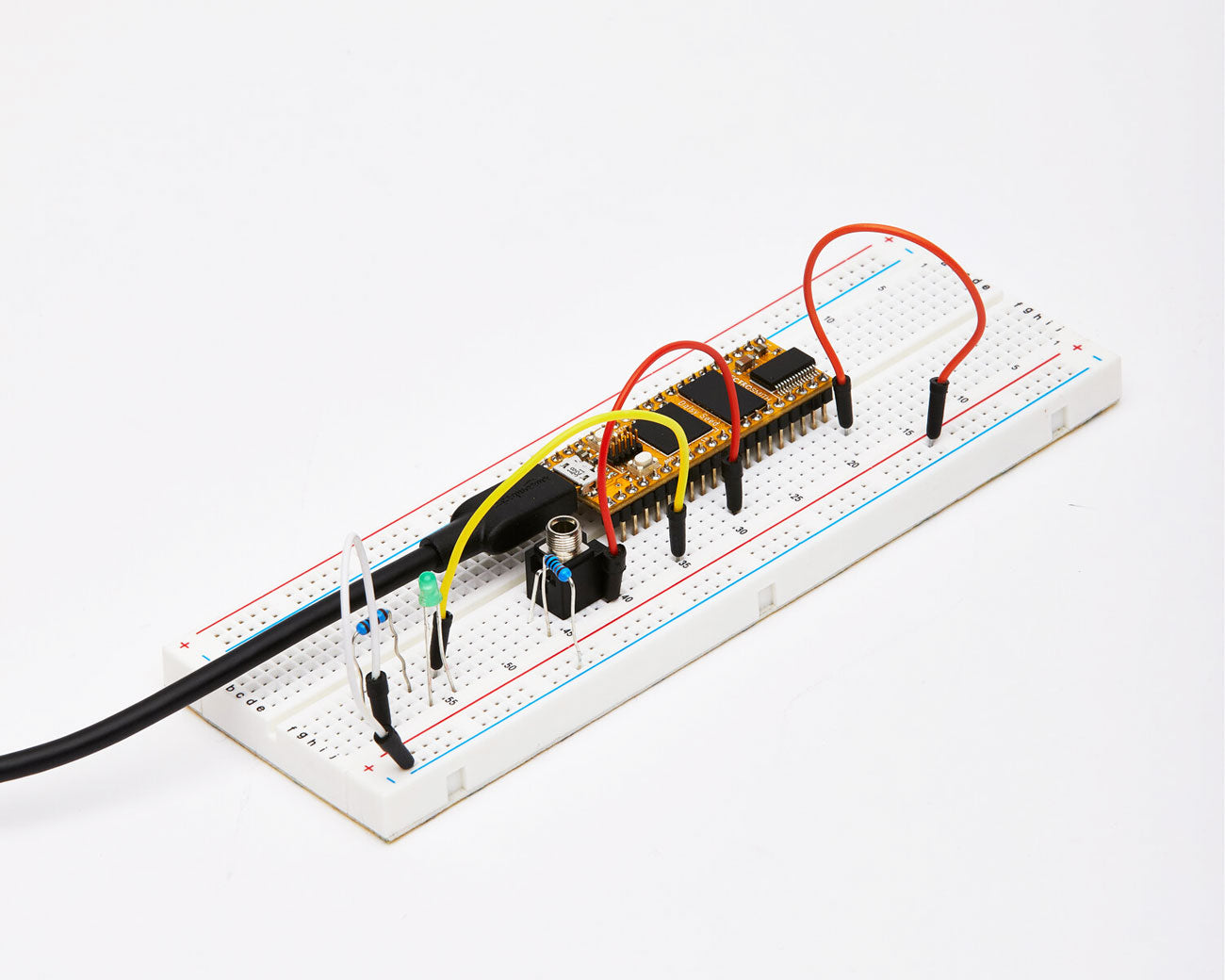

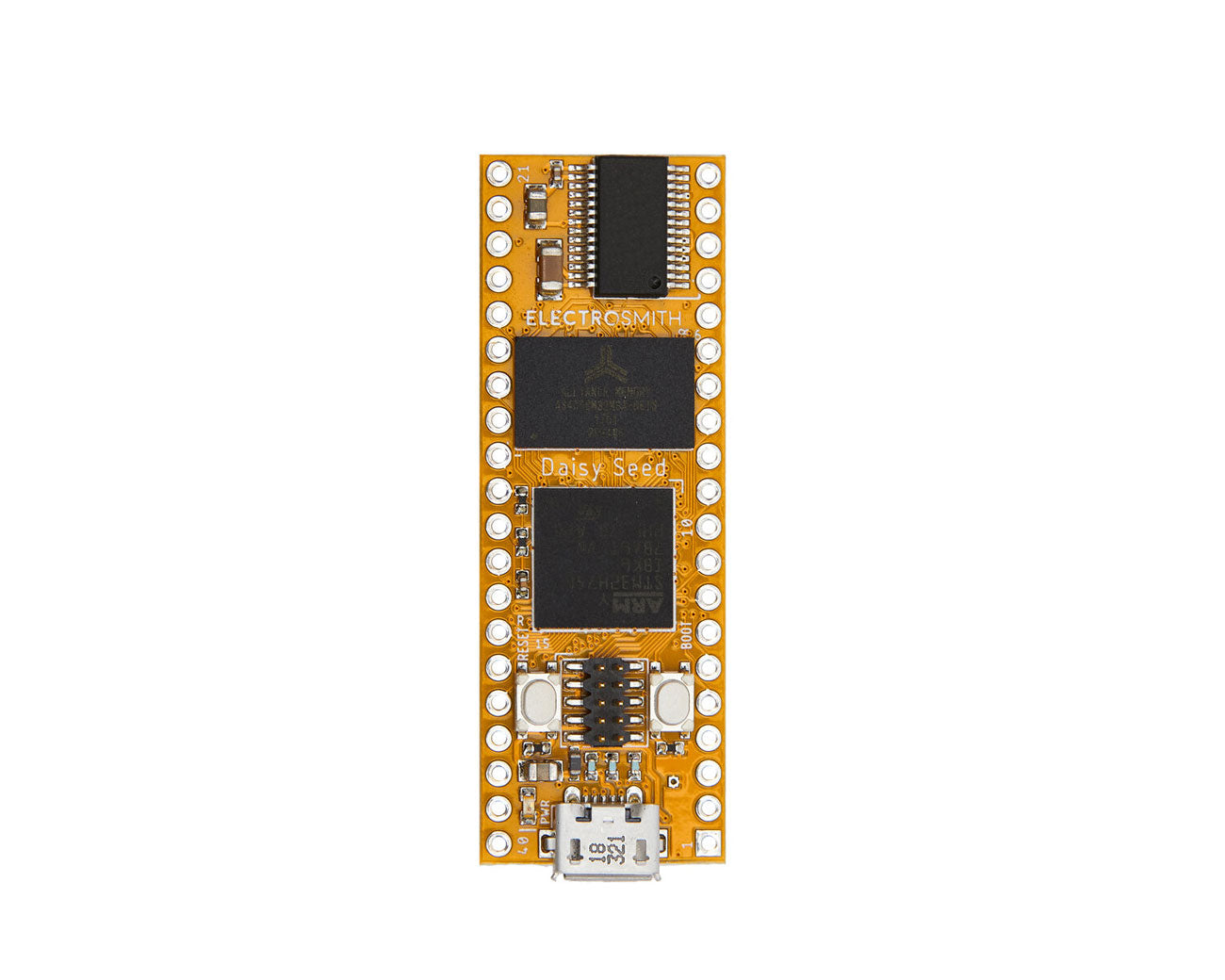

Daisy is a powerful device for making music makers. It features everything you need for creating your own high fidelity hardware audio devices. Just plug in a USB cable and start making sound! No soldering required.
Resources: Documentation, and examples are hosted on the GitHub repository for easy download. All firmware that we develop is released for free under a permissive open source license(MIT). Check out the getting started wiki page!
Programmability: C++, Arduino, Max/MSP Gen~, Pure Data(export using Heavy)
Hardware: ARM Cortex-M7 MCU, High fidelity AKM stereo audio codec with up to 24-bit 192kHz, 64MB of SDRAM, and 8MB of flash memory
Pinouts include:
-
31 total GPIO pins which can be configured as standard GPIO or one of several alternate functions including 16-bit Analog to Digital Converters(x12)
-
12-bit Digital to Analog Converters(x2)
-
SD Card interfaces
-
PWM outputs
-
Serial protocols for connecting to external sensors and devices including SPI, UART, I2S, and I2C
-
Dedicated VIN pin for power (input range from 4v to 17v)
-
Micro USB port along with additional USB pins for full OTG-support as host and device. Port can be used for power, firmware, and debugging.
Video: https://youtu.be/gH8R7LtMtuc
Product Specs
- Item Number: 15956
- Make: Electro-Smith
- Model: Daisy Seed
- Condition: Brand New
- Finish: Yellow
- Categories: keyboards-and-synths ⇒ eurorack
- Made In: United States
- MPN: ES_Daisy_Seed_65MB_H_Retail
