* This item is not currently in stock, orders will be fulfilled when the item becomes available.

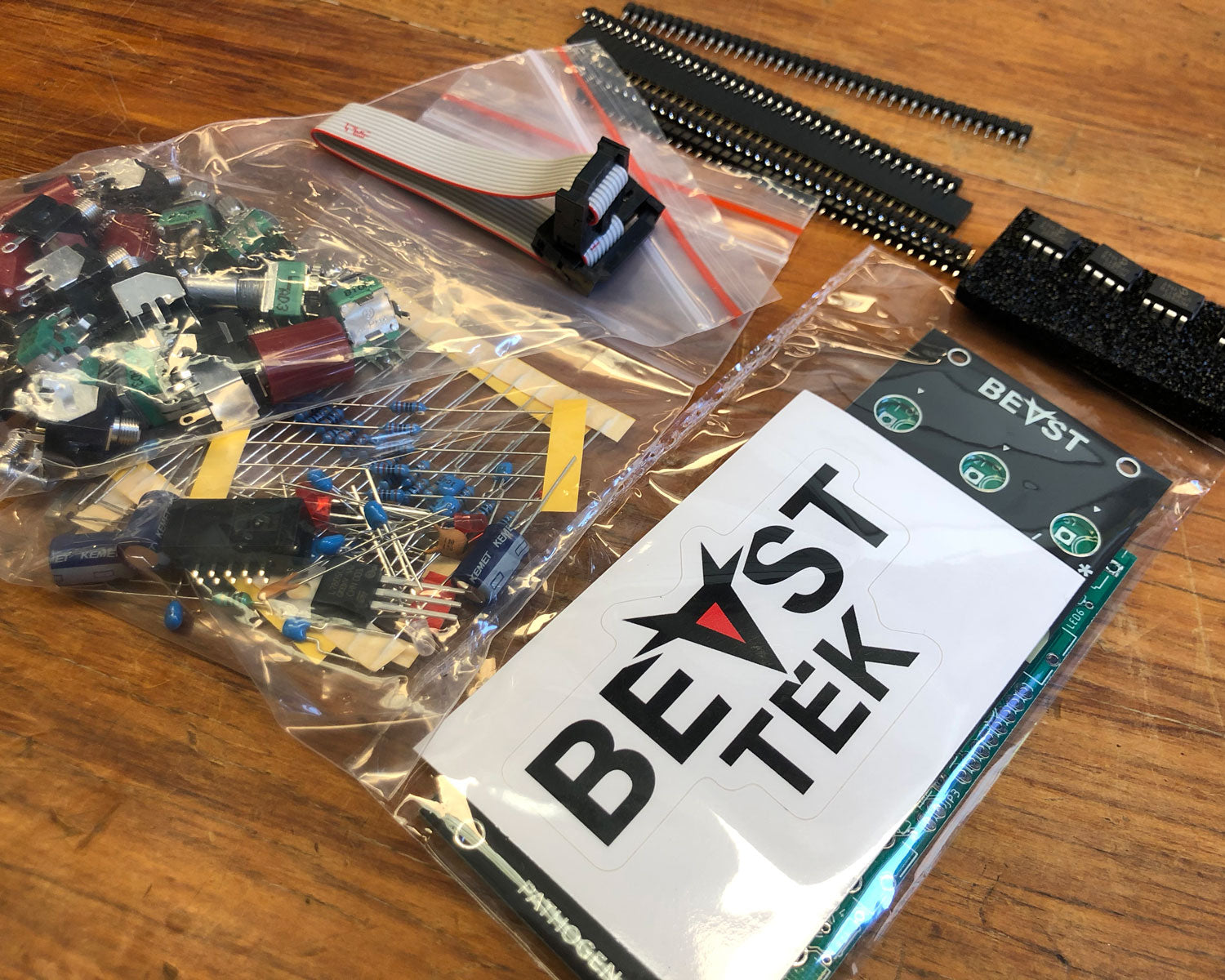

The Beast-Tek Pathogen (10HP) has two separate tempo synchronized sections; the first section is a burst generator for trigger signals with length, "physics" based density and its own clock divider/multiplier.
The second section is a four output pattern generator with eight modes:
1. Counter
Clock/measure/beat counter mode. PARAM selects one of 32 different counting patterns. The patterns are arranged in eight groups of four, each group of four has a different time signature. Starting from 2 through to 9. Use this mode to do boring predictable 2/4,3/4, 4/4 stuff OR go wild and spice up sequences, extend notes and clock sequencers in odd but super cool ways.
2. Divider
4 pattern outputs, each assigned a different clock division. PARAM selects 1 of 32 different clock divisions for each output. Use this with a logic AND/OR gate to spice up rhythms, sequences or any trigger/gate related function.
3. Arrhythmia
Mathematically (and deliberately) messed up Euclidean rhythms; each of the 4 outputs on a cycle that never quite align but still seem to work.
There are 32 of them - PARAM selects a patch from 1 to 32. Each of the 32 patterns has an alternate pattern that is activated when a RESET signal is received. A subsequent RESET signal will revert back to the original pattern. The 32nd pattern has a special twist - each time a RESET is received a new rhythmically awkward pattern will be generated.
4. Basic Drum Patterns
32 x basic patterns, each 16 steps in length. PARAM selects which rhythm and RESET input will do what you would expect (it goes back to the start of the pattern duh!).
5. Random (1 of 4)
A random pattern of 1 to 32 steps where ONLY one of the four outputs can be active at a time. PARAM sets the number of steps from 1 to 32. Each time a RESET is received a whole new random sequence is generated.
6. Random (4 of 4)
Similar to the previous algorithm except any of the outputs can be active at a time. PARAM sets the number of steps from 1 to 32. Each time a RESET is received a whole new random sequence is generated.
7. Probability (1 of 4).
Probability based 1 of 4 pattern - The PARAM control adjusts the probability from 0% to 100%. On each step a random number is generated. If the random number is greater than the probability, then a new pattern is generated where only ONE of the four outputs is active.
8. Probability (4 of 4)
Just like the previous algorithm except any of the four outputs can be active.
Product Specs
- Item Number: 15950
- Make: Beast-Tek
- Model: Pathogen
- Condition: Brand New
- Finish: Black
- Categories: diy ⇒ kit
- Function: Clock Generator Frequency Divider Logic Random Sequencer Switch Utility
- Made In: Australia
- MPN: PATHOGEN2.4
- Modular Grid: Eurorack ⓘ +
- Dimensions*: 10 HP 45 mm deep
- Power*: 50 mA +12V 10 mA -12V 0 mA 5V
* User contributed details
