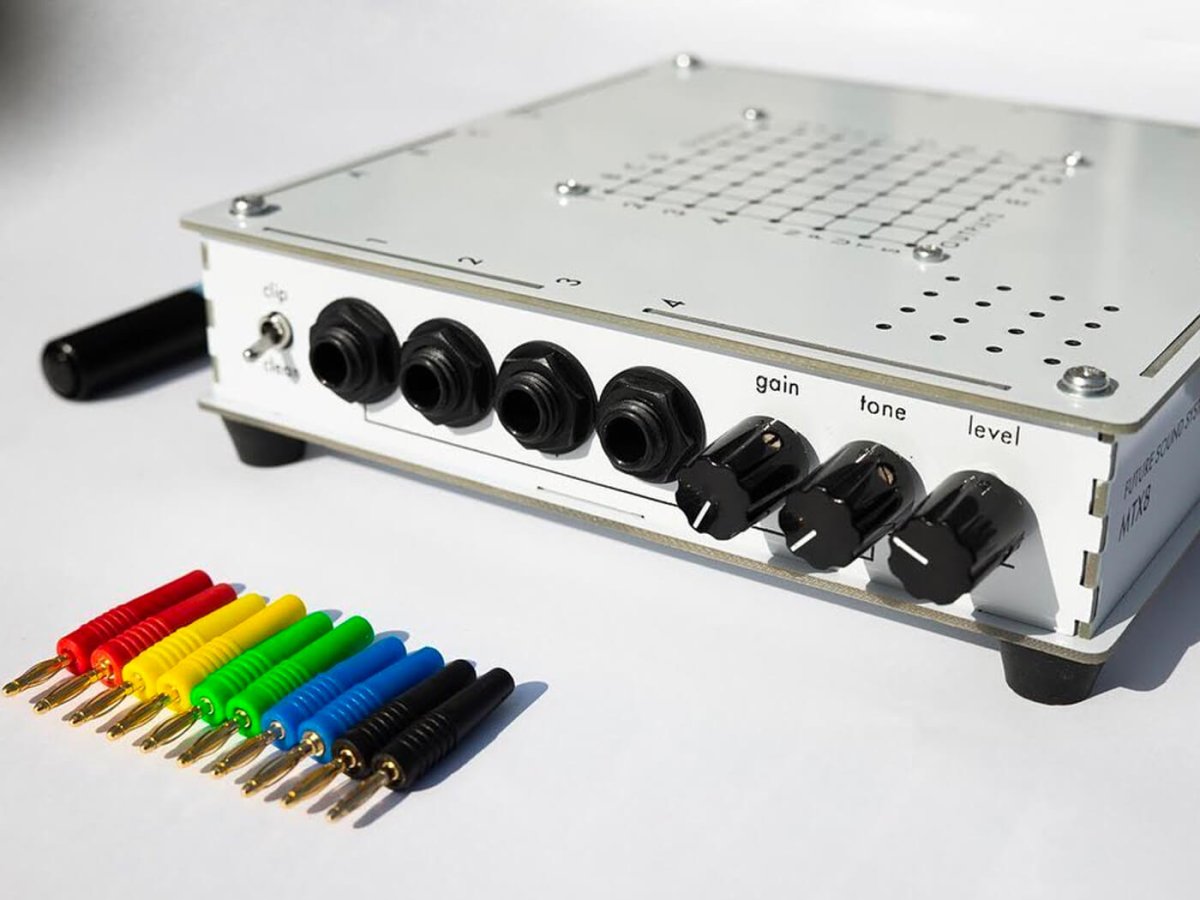

Future Sound Systems MTX8 is a full analog pin matrix for synths, guitars, effects; Designed for advanced routings, sums, feedbacks & more.
It includes 8 inputs/outputs featuring full buffering of all inputs and outputs, allowing parity gain summing.

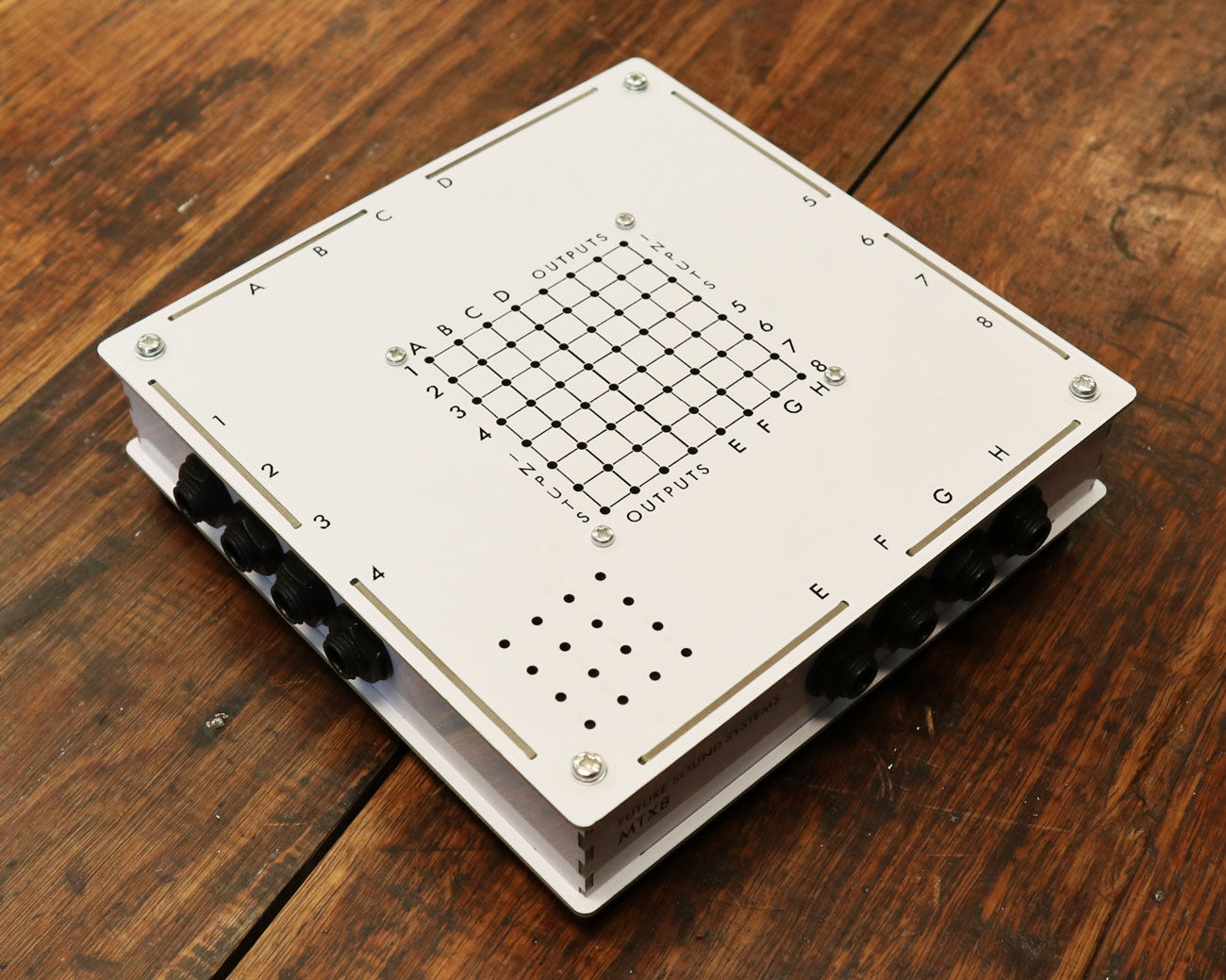

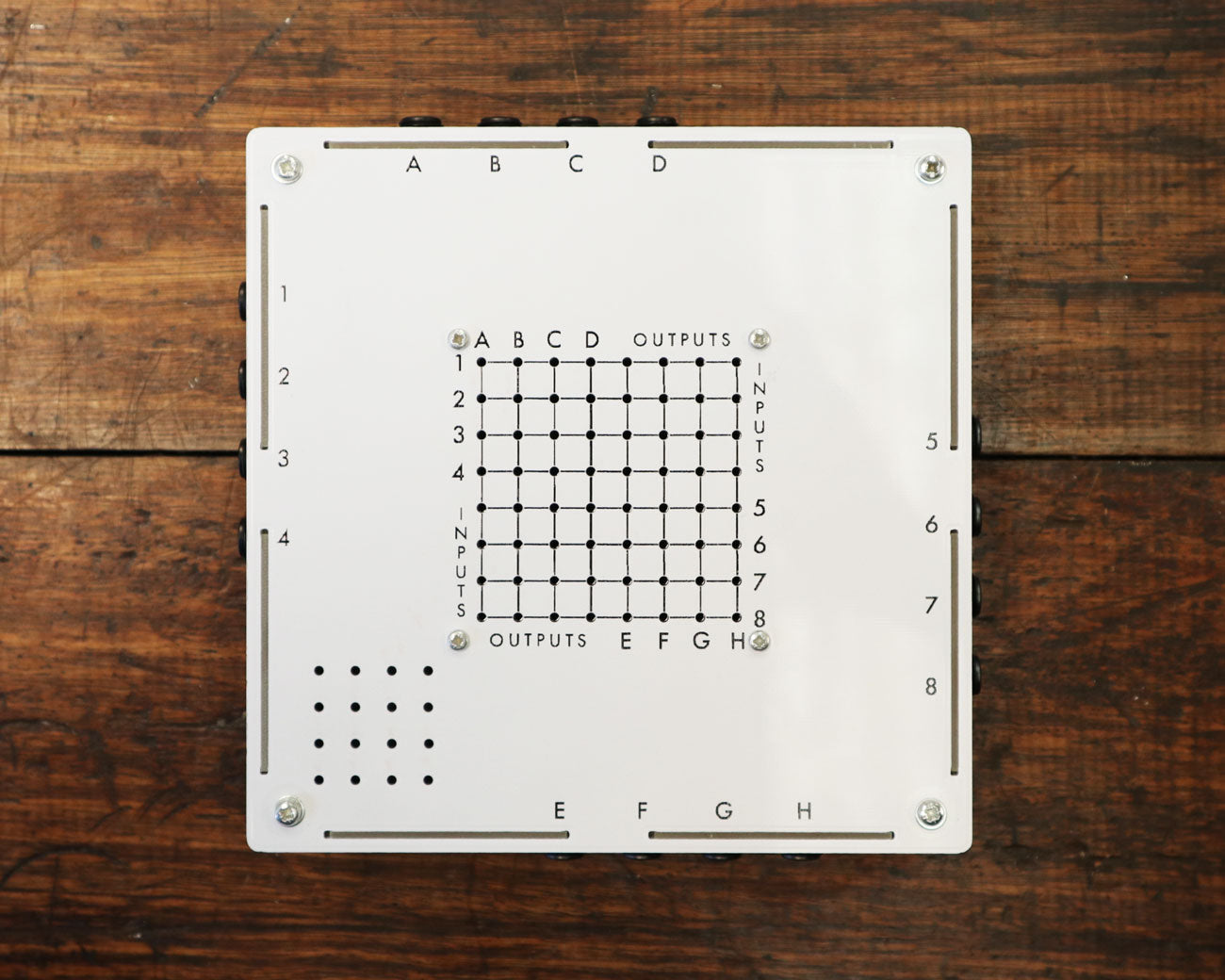

Routing configuration is achieved by the use of a 64-point pin matrix. By inserting a 2mm banana pin into a point on the matrix connects that input (the numbered vertical axis) to a corresponding output (the lettered horizontal axis).

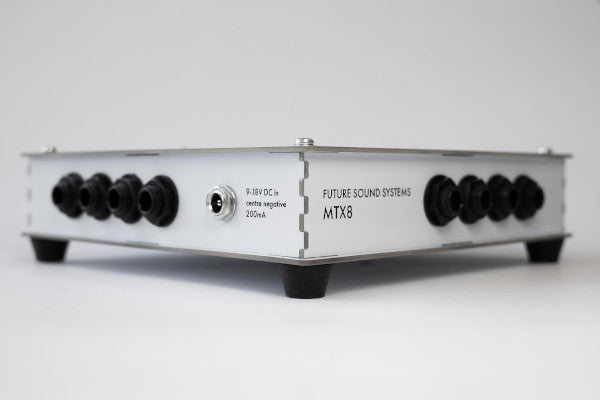

MTX8 has only ¼ inch jacks unbalanced ins/outs but can pass balanced signals fed to/from it via two or three-pole jacks.
