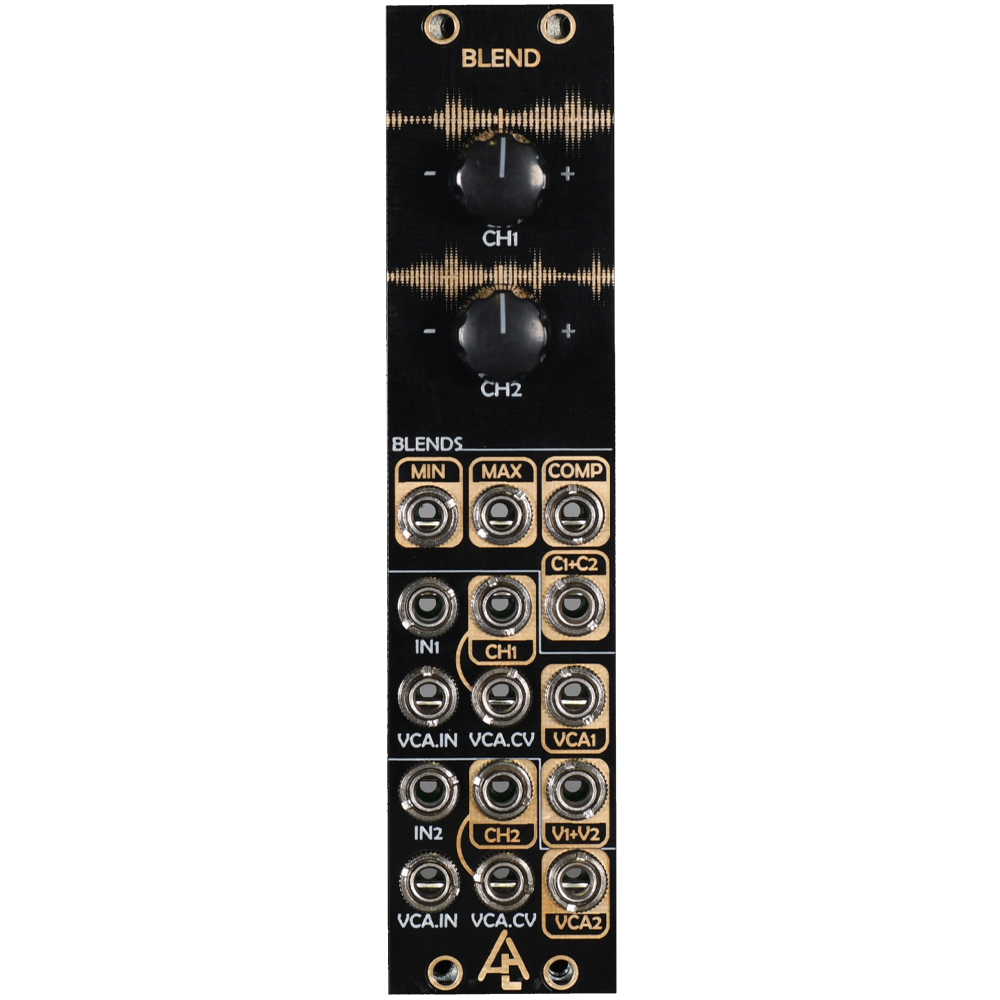

After Later Audio BLEND CV/Audio Mixer and Dual VCA

BLEND (6HP) is a two-channel CV/audio utility that is perfect for combining and manipulating CV signals into new forms.
It has two CV sections each with: Input (normalled to a +5V signal), Attenuverter and output. The CV mixer section takes the outputs of the two CV sections and offers min output, ma output, comparator output (level Brought down to 4.5V) and sum output.

Video: https://youtu.be/xK6p5yEgV0w

Product Specs

• Item Number: 15643
• Make: After Later Audio
• Model: BLEND
• Condition: Brand New
• Finish: Black & Gold
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Comparator CV Modulation Mixer Utility VCA
• Made In: United States
• MPN: ALA_BLEND
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 6 HP 25 mm deep
• Power: 40 mA +12V 40 mA -12V ? mA 5V
