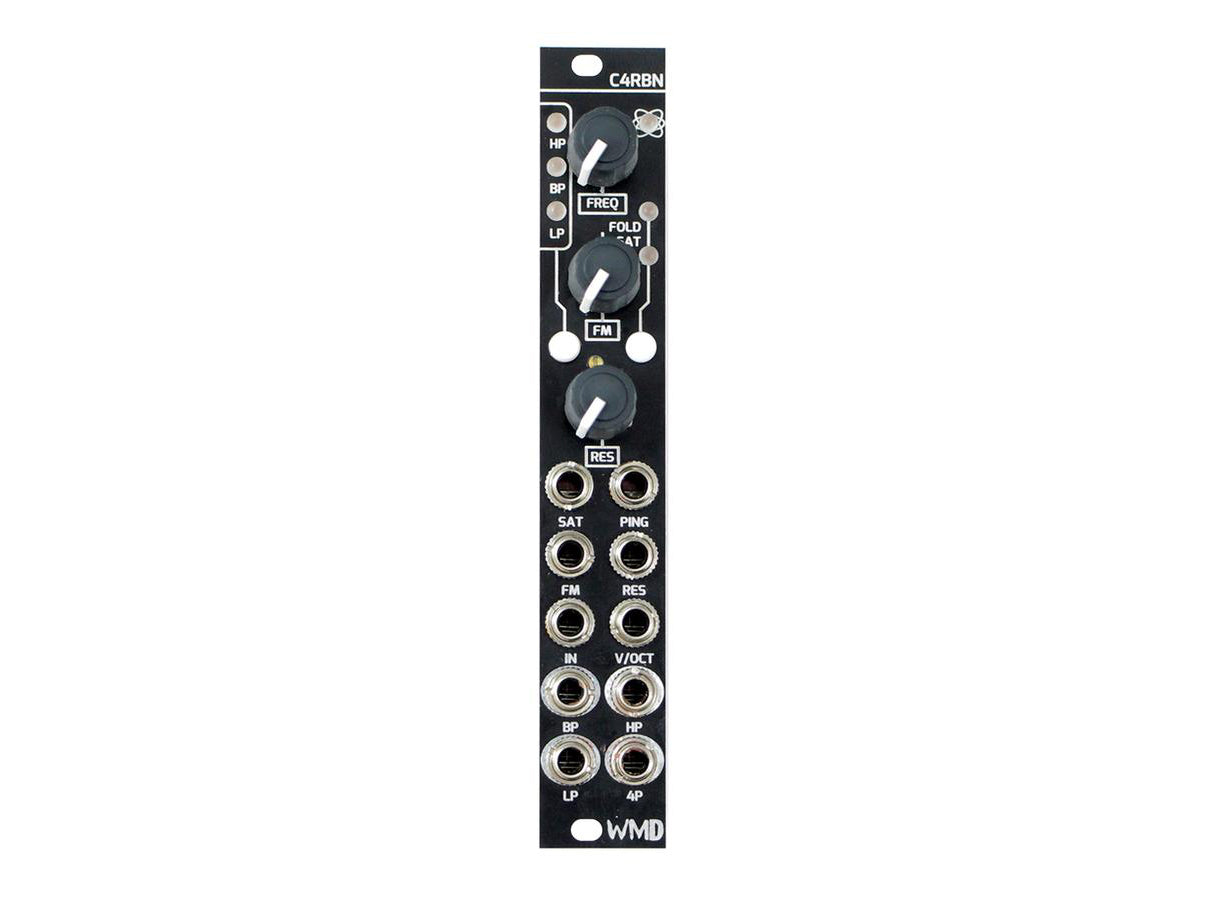

C4RBN (4HP) builds on WMD’s history with state-variable filters adding interface refinements and improved warm environment stability for live performance and beyond. A novel input saturation circuit plus the output wavefolder from WMD’s classic SYNCHRODYNE filter pair together to push the timbral flexibility to the next level.
Features:
- 3 independent 2 pole outputs for High Pass, Low Pass, and Bandpass
- Inverting Attenuator (attenuverter) for FM allows for positive and negative CV control over the cutoff frequency
- Independent 4 Pole output with switchable frequency response
- Input Saturation with 3 switchable levels and CV input for additional fine control
- PING circuit generates a fast decay envelope emulating the response of a vactrol
- Output wavefolder for extra bite and screaming character
- Resonance with self oscillation
- Temperature compensated 1V/Oct tracking.
- Performance focused control scheme allows for on-the-fly changes of filter types with intention
Video: https://youtu.be/L3_7ejRsN7Q
Product Specs
- Item Number: 15466
- Make: WMD
- Model: C4RBN
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Filter Waveshaper Distortion
- Made In: United States
- MPN: WMD-C4RBN
- UPC: 857393003862
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 4 HP 38 mm deep
- Power*: 92 mA +12V 82 mA -12V 0 mA 5V
* User contributed details
