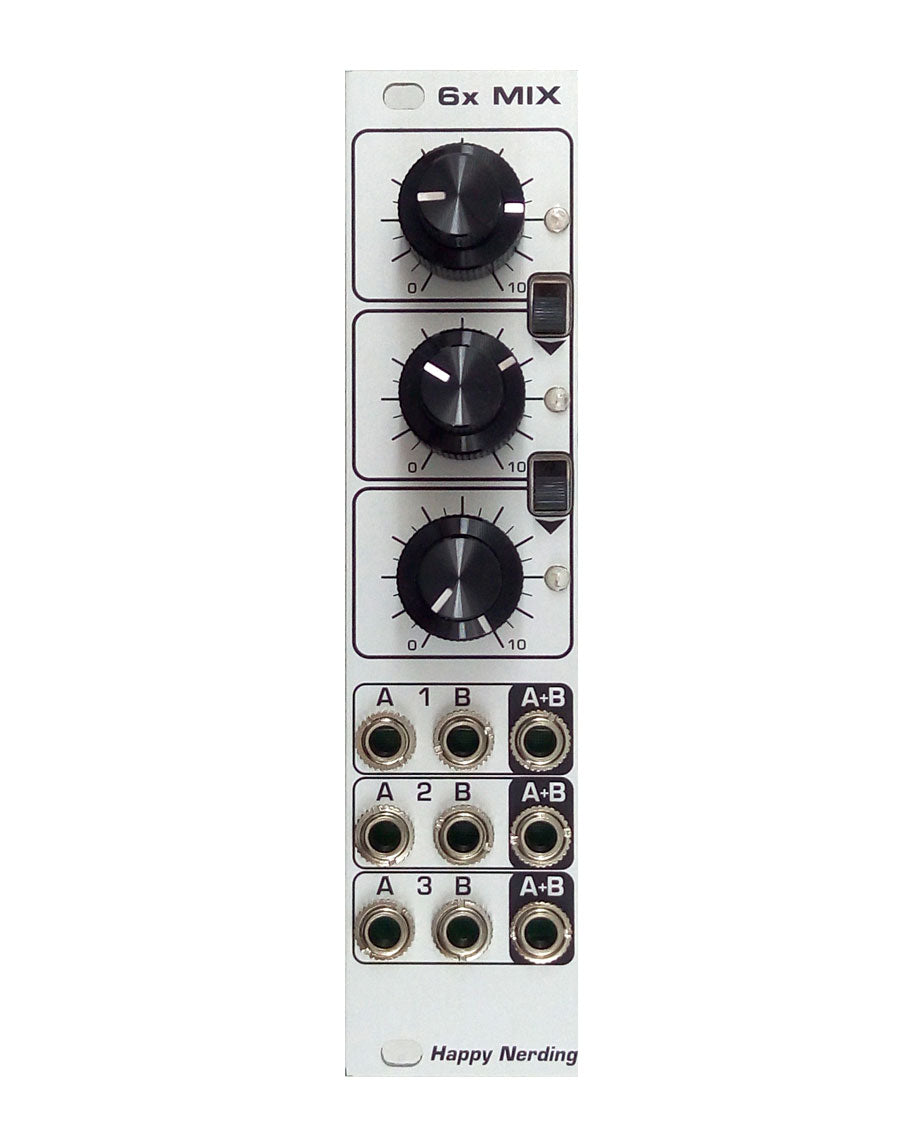

Happy Nerding 6xMIX - Silver

A six-channel, AC-coupled audio mixer arranged across three groups, each with its own output and LED level indicator. Groups can be switched to mix into the subsequent group, allowing 2-2-2, 4-2 or 6-channel mix configurations.

The module can also be configured for mixing two stereo channels alongside a separate group of two mono channels. Inner knobs control the A inputs, while outer knobs control the B inputs.

Specifications

• Six AC-coupled audio inputs
• Three grouped outputs with LED indicators
• Selectable 2-2-2, 4-2 and 6-channel mixing configurations
• Inner controls: A inputs
• Outer controls: B inputs
• Width: 6HP
• Depth: 35mm
• Power consumption: 50mA +12V, 50mA -12V

Product Specs

• Item Number: 15396
• Make: Happy Nerding
• Model: 6xMIX - Silver
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Mixer
• Made In: Spain
• MPN: HN-6MIXSLV
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 6 HP 35 mm deep
• Power*: 50 mA +12V 50 mA -12V 0 mA 5V

* User contributed details
