* This item is not currently in stock, orders will be fulfilled when the item becomes available.
Now available with a black faceplate.

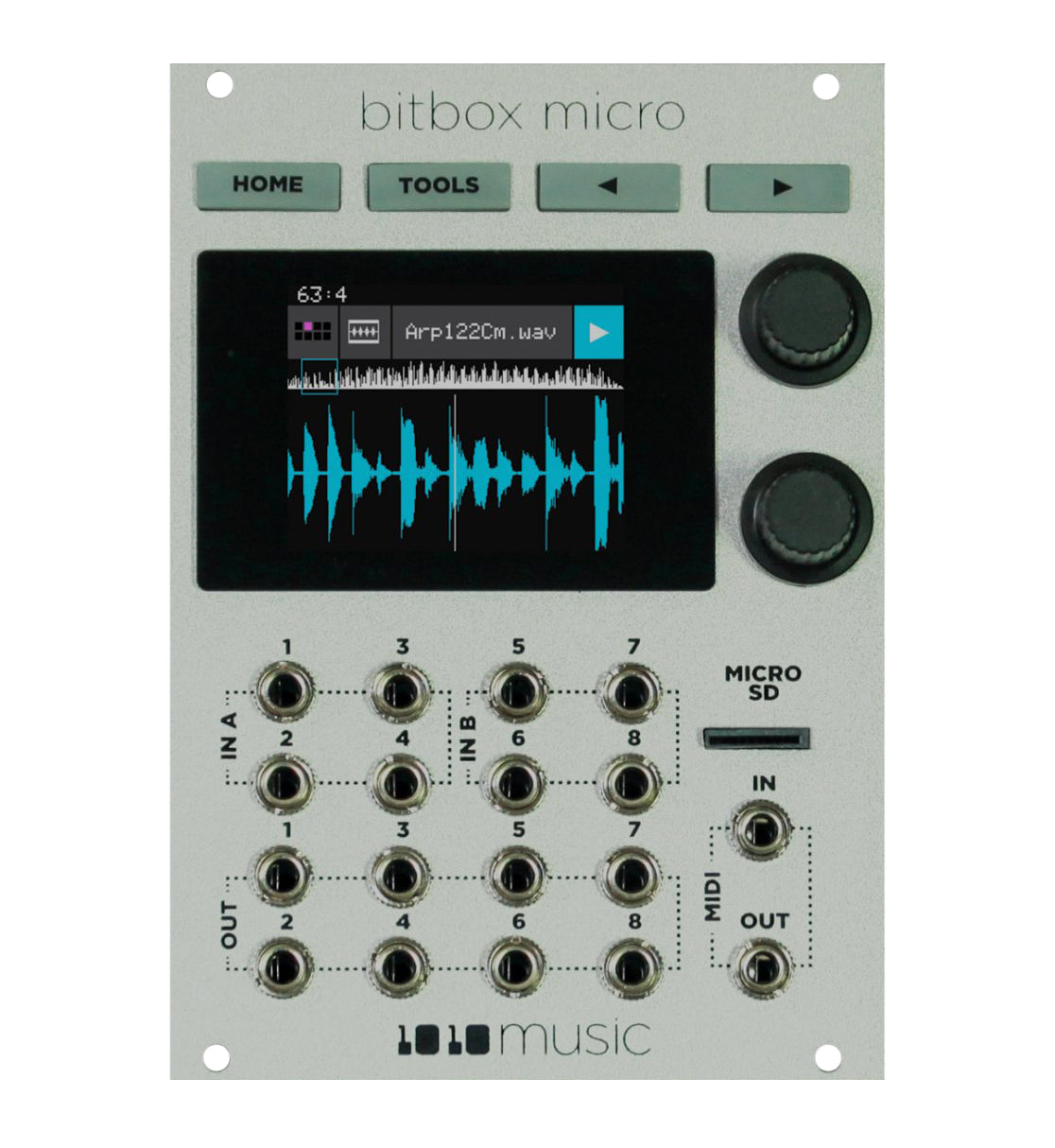

The Bitbox micro is an 18HP sampling eurorack module with a touch screen based sampler and support for 8 stereo sample pads. Record samples directly into the module or load them from the microSD card. Trigger samples via CV or MIDI, apply effects and mix the outputs. Easily recall saved configurations in multiple preset slots.
Technical Specifications
- Supports 1 and 2 channel WAV files with 16, 24 or 32-bit resolution at any sample rate (48kHz preferred)
- 18 HP
- 3.5ā³ x 5ā³x 1.75ā³
- +12V: 400mA
- -12V: 0mA
- 5V: 0mA
- 24-bit ADC and DAC
Video: https://youtu.be/BNghPm4EVl8
Product Specs
- Item Number: 15225
- Make: 1010music
- Model: Bitbox Micro
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ā eurorack
- Function: Sampling Drum Clock Generator Controller Digital Dual/Stereo MIDI
- Made In: China
- MPN: TEN-BITBOXMICRO
- UPC: 857665007147
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 18 HP 32 mm deep
- Power*: 400 mA +12V 0 mA -12V 0 mA 5V
* User contributed details
