Michigan Synth Works F8R 8m Fader Bank v2.1 - Black

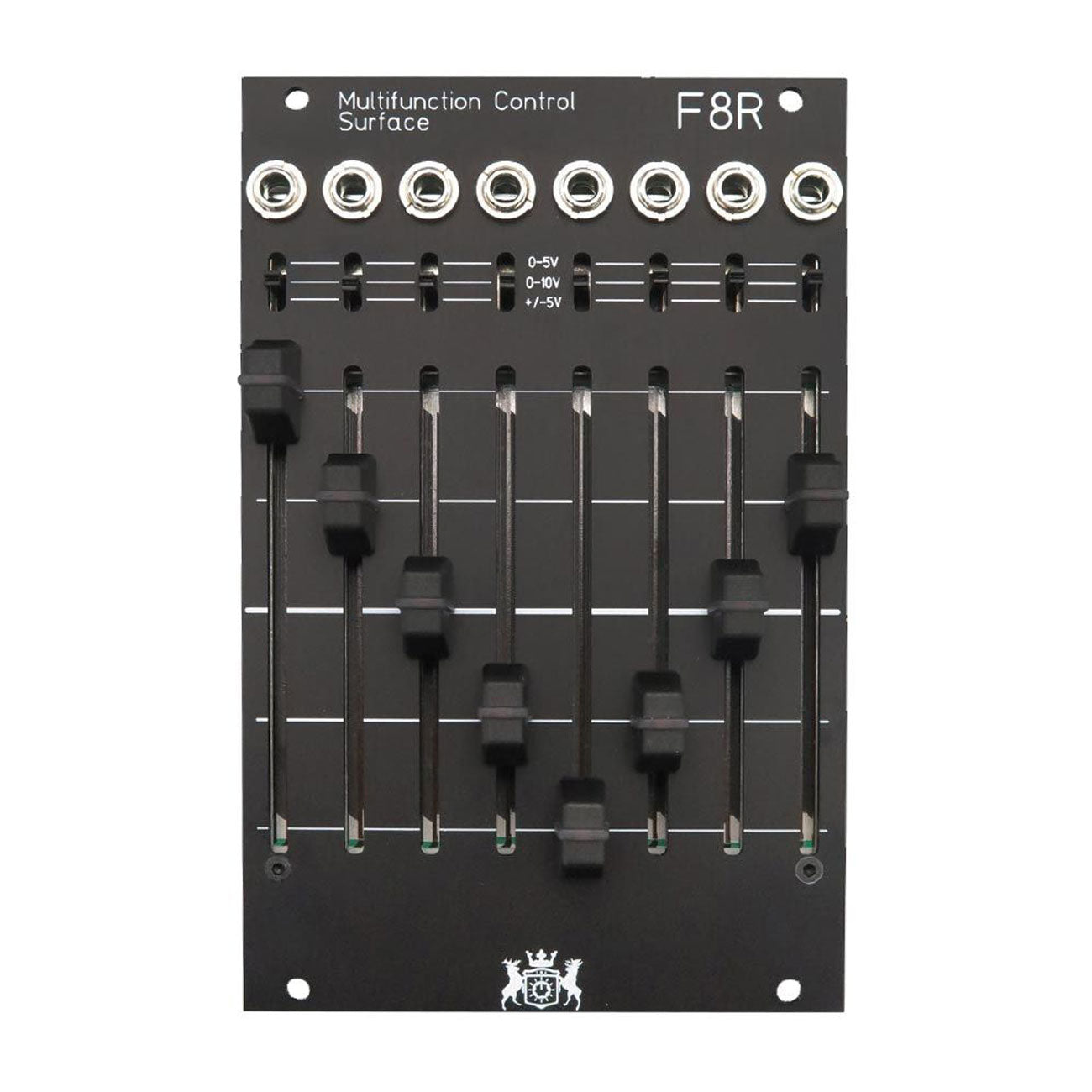

The F8R is a (16HP) eurorack format adaptation of the 16n, providing eight long-throw faders for CV control.

Each of the 60mm faders has a dedicated CV output with selectable CV range (5V unipolar, 10V unipolar and 10V bipolar).

MIDI and Monome-style I2C is also available via headers on the rear of the unit, which may be accessed directly via the F8R Expander.

This means you can use the F8R to control your typical euro modules as well as Monome-style I2C addressable devices such as the Teletype, Orthogonal Devices ER301 and more.

Though clearly designed with Eurorack systems in mind, the F8R is a great way to add hands-on control to virtually any setup.

Video: https://youtu.be/3BVT4x25jMs

Product Specs

• Item Number: 15110
• Make: Michigan Synth Works
• Model: F8R 8m Fader Bank v2.1 - Black
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Controller CV Modulation MIDI
• Made In: United States
• MPN: 8m Fader Bank Black
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 16 HP 20 mm deep
• Power*: 50 mA +12V 40 mA -12V 0 mA 5V

* User contributed details
