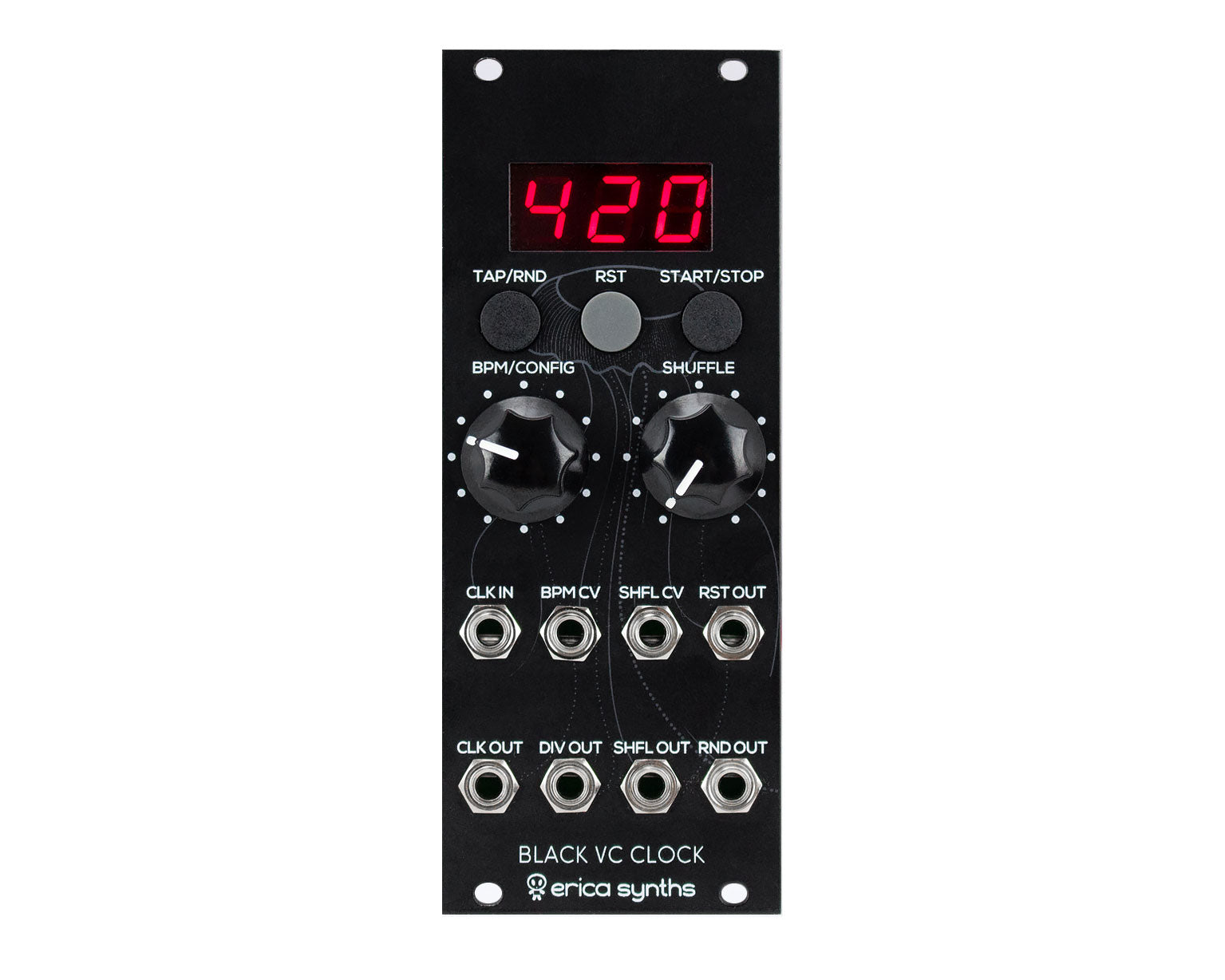

Erica Synths Black VC Clock v2

Erica Synths Black VC Clock is the beating heart of your modular system.

Features:

• Manually and CV adjustable BPM
• Clock division and multiplication
• External clock input
• 3 digit BPM indicator
• Manually and CV controllable shuffle amount
• Manual and programmable sequencer reset output
• Sequencer reset output
• Adjustable duty circle of shuffling and random clock
• Performance time stopwatch

This module generates several clock signals simultaneously and has some more advanced features like tap tempo, shuffle and divide, both for controlled rhythmic music production and for experiments with high level of uncertainty. You may also find the adjustable and even random duty circle of shuffling and random clock outputs interesting. Bonus feature – the module can be used as a performance time stopwatch.

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

Technical specifications:

• Max input level -10V - +10V
• Clock signal level 0 - +5V
• Clock rate 30 – 400BPM
• CV input level (full sweep) -5V - +5V
• Power consumption 40mA@+12V, 5mA@-12V
• Module width 10HP
• Module depth 25mm

Video: https://youtu.be/8uCeQzf_Aa4

Product Specs

• Item Number: 14965
• Make: Erica Synths
• Model: Black VC Clock v2
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Clock Generator
• Made In: Latvia
• MPN: ES-VCCv2BLK
• EAN: 4751030820118
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 10 HP 25 mm deep
• Power*: 40 mA +12V 5 mA -12V ? mA 5V

* User contributed details
