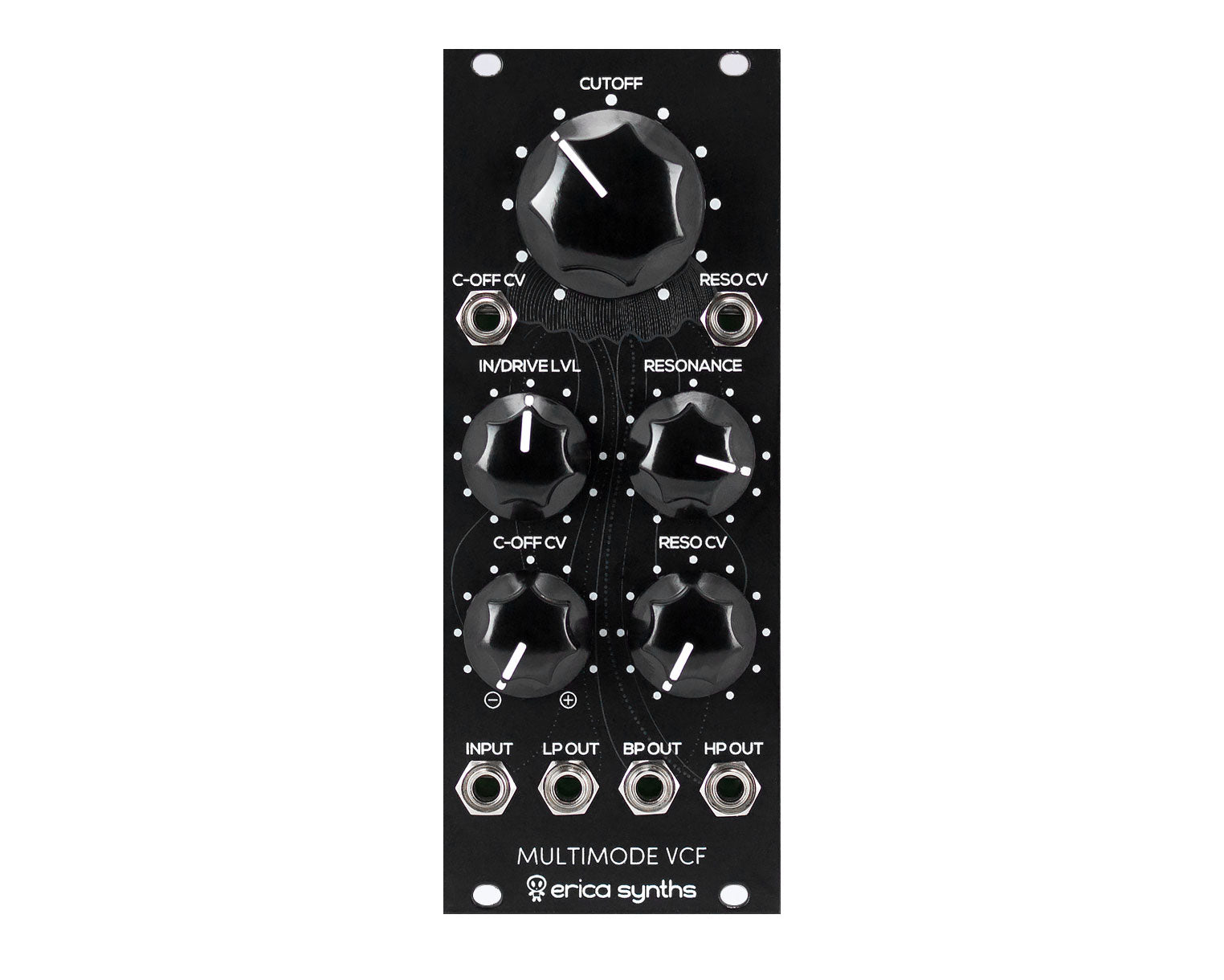

Erica Synths Black Multimode VCF has simultaneous HP, BP and LP outputs and CV control over cutoff and resonance for serious modular patches.
Features
- Simultaneous HP, BP and LP outputs
- CV control over Cutoff and Resonance
- Self-oscillation
- Cutoff CV level attenuverter
- Adjustable germanium diode overdrive
- Skiff-friendly design
At the core of this VCF is a highly stable, custom multimode VCF chip AS3320 (produced in Riga, btw) and there's a bonus feature ā a unique, adjustable germanium diode overdrive circuit on the VCF input.
Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.
Technical specifications:
- Audio output amplitude 10 Vptp
- CV input (full sweep) 10 Vptp
- Panel width 10HP
- Module depth 35mm
- Power consumption 27mA@+12V, 29mA@-12V
Video: https://youtu.be/BhM1Ma5YeG0
Product Specs
- Item Number: 14964
- Make: Erica Synths
- Model: Black Multimode VCF
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Filter
- Made In: Latvia
- MPN: ES-MMVCFBLK
- EAN: 4751030820125
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 10 HP 35 mm deep
- Power*: 27 mA +12V 29 mA -12V ? mA 5V
* User contributed details
