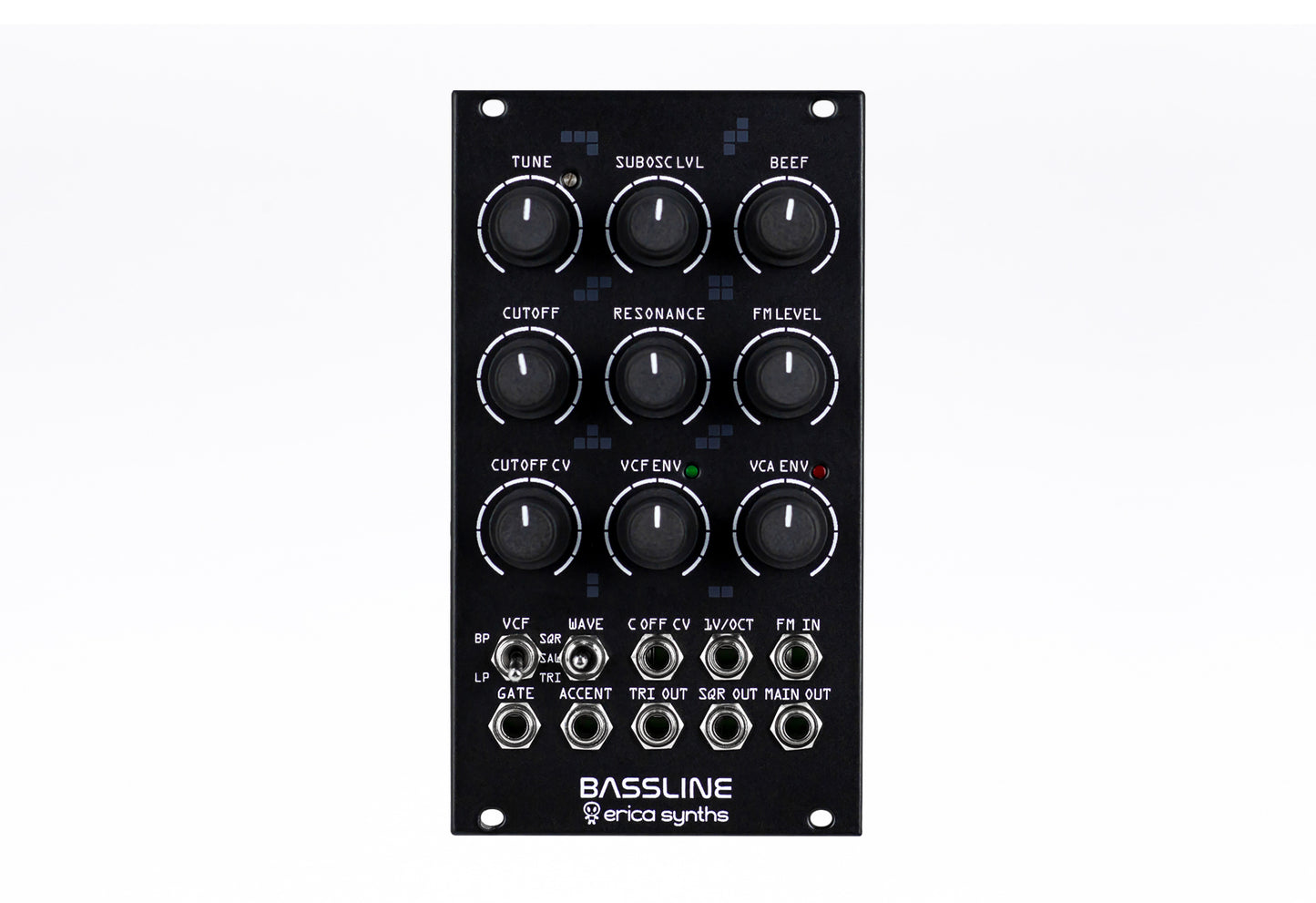

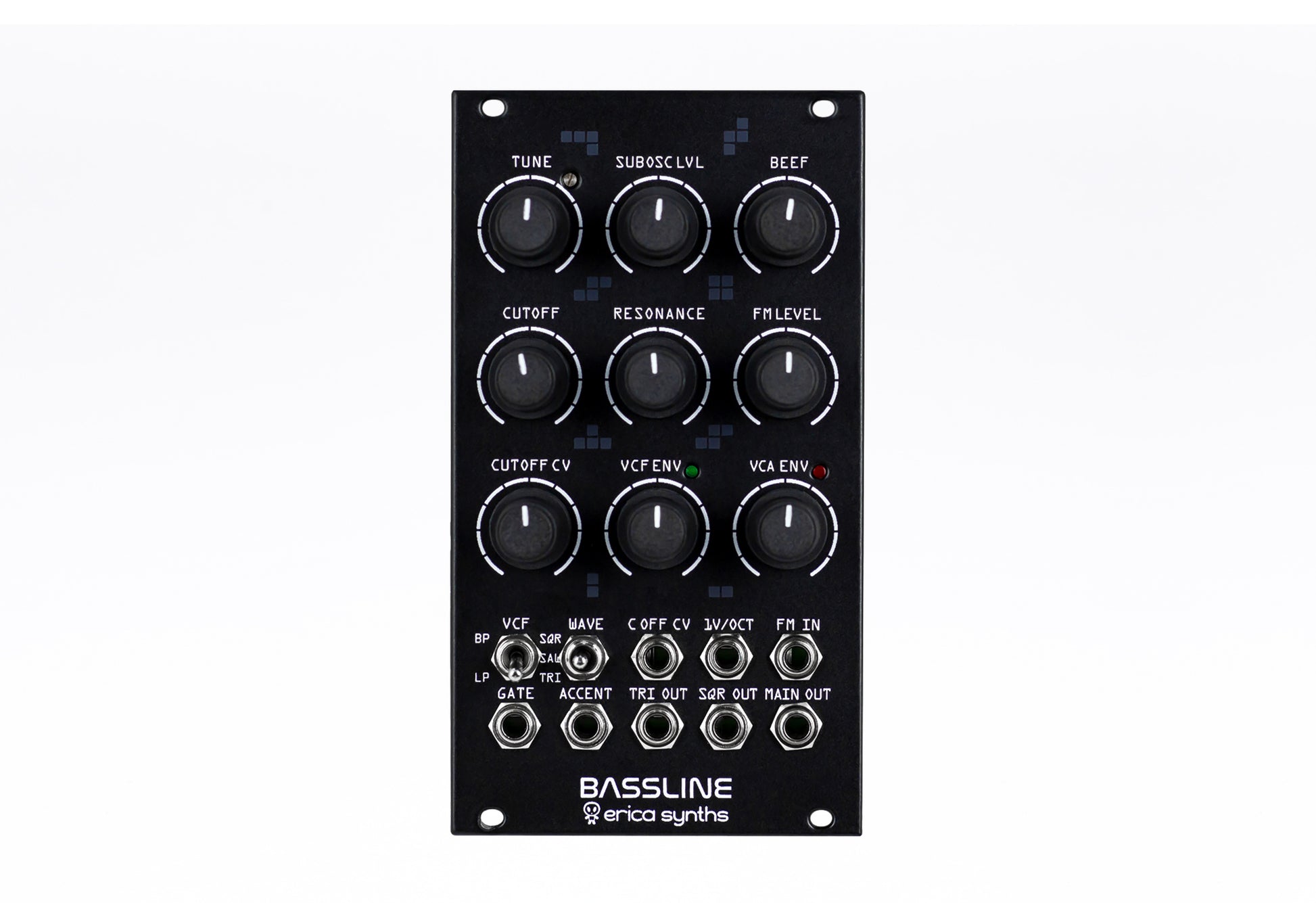

The Erica Synths Bassline module is a fully analogue synth voice module for ultimate basslines and leads. Featuring the AS3340 VCO with three waveforms, a filter inspired by Erica Synths Acidbox and a transistor based sub-oscillator and two BBD lines that emulate VCO detune creating a sound of massive polysynth from the single oscillator. Accent provides more expression to the bassline, by adding volume and opening the VCF slightly.
Features:
- Fully analogue circuit
- Great 1V/oct tracking
- Simultaneous Triangle, Square and Master outputs
- Accent input
- Transistor-based suboscillator
- BBD-based VCO detune emulation
- Integrated VCF and VCA decay envelopes
- LP/BP VCF
- External VCO FM and VCF cutoff CV inputs
Brand new with warranty
Video: https://youtu.be/6_Qthkmv17o
Product Specs
- Item Number: 14942
- Make: Erica Synths
- Model: Bassline Module
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Filter Oscillator Synth Voice
- Made In: Latvia
- MPN: ES-BM
- EAN: 4751030821726
- Modular Grid: Eurorack ā ļ¼
- Dimensions: 14 HP 35 mm deep
- Power: 78 mA +12V 70 mA -12V 0 mA 5V
