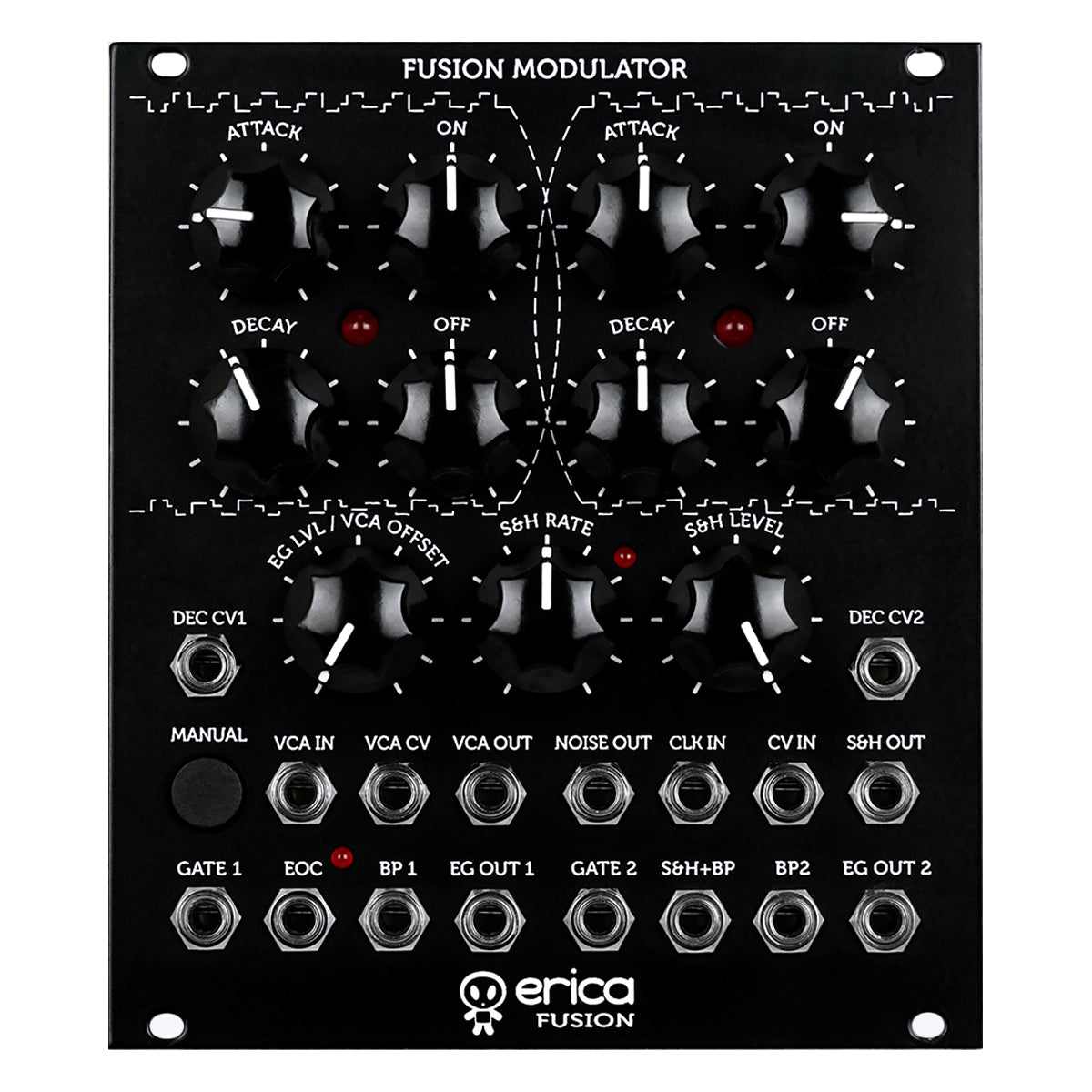

Erica Synths Fusion Modulator

The Erica Synths Fusion Modulator (22HP) is a complex, all analogue modulation source with lots of distinct features.

It consists of several blocks – Two EMS Synthi functionality inspired looping envelope generators with simultaneous unipolar (0V-10V) and bipolar (-5V-+5V), VCA, noise generator and Sample & Hold. This makes Fusion Modulator a versatile modulation source for advanced modular setups, especially drone music oriented ones.

Set looping envelope generators to high frequencies and have two sub bass sound sources, use VCA to control the amplitude of the envelope signal, modulate the decay time by random voltages from S&H circuit and get ever evolving sonic awesomeness!

• Due to the fact that cold tube heaters have lower resistance, Fusion modules have significant power consumption peak at startup, when power consumption almost doubles for 1-2 seconds. This is not a problem with linear PSUs that have power inertia, but may cause switching PSU internal protection to turn off power supply. Please make sure your PSU has some headroom before installing multiple Fusion modules.

Brand new with warranty

Video: https://youtu.be/l_vGrrHIXRo

Product Specs

• Item Number: 14932
• Make: Erica Synths
• Model: Fusion Modulator
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: CV Modulation Dual/Stereo Envelope Generator Noise Sample and Hold VCA Tube
• Made In: Latvia
• EAN: 4751030826448
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 22 HP 36 mm deep
• Power: 125 mA +12V 74 mA -12V ? mA 5V
