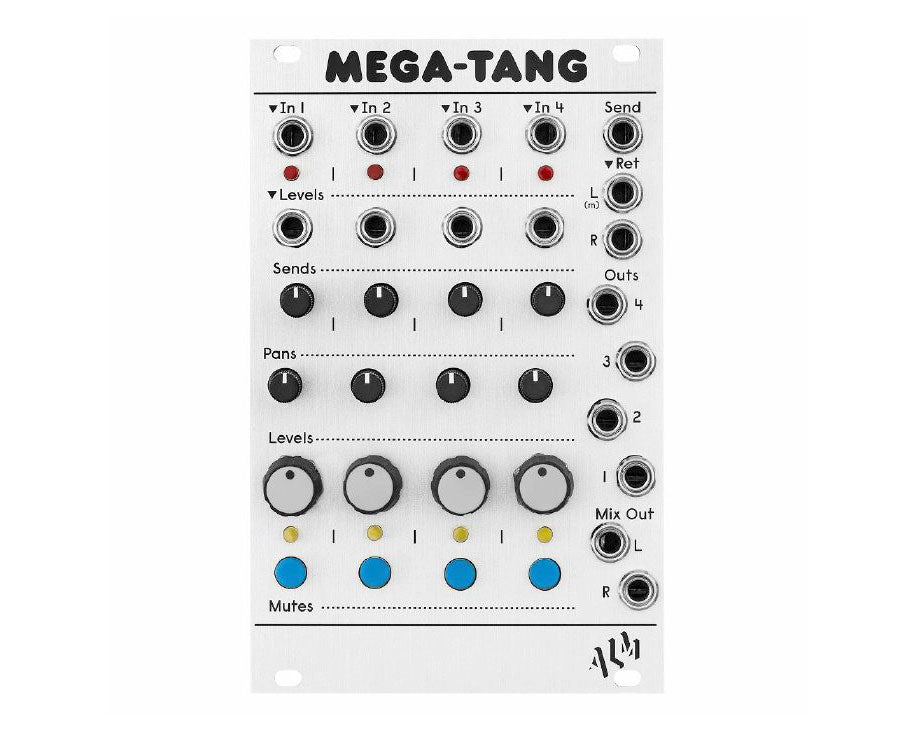

Mega-Tang is a 16HP performance oriented 4-channel linear VCA and stereo mixer featuring an FX send and return, level CV inputs, soft mutes and individual channel outputs with hands on control over level, panning, and effects send amount. 🎛 🤏
Designed for live use in mind with a simple & compact layout, the ‘MEGA-TANG’ builds on the clean and transparent sounding Tangle Quartet VCA, adding many useful features whilst remaining just as simple and intuitive. The ‘MEGA-TANG’ was designed for easy connection to the MFX via the built in send/returns and includes an expansion port for future expandability.
- 4 Channel stereo mixer and VCA with per channel send, pan, mute and level controls.
- 4 high quality clean, bleed free linear VCA’s.
- Mutes include LED indication and soft close circuits to help avoid clicks.
- Mono effects send with stereo return.
- Stereo mix output plus individual channel outputs (channel is removed from the mix when patched).
- Utilises 2164 VCA IC’s for high performance with low noise and low signal distortion.
- DC coupled inputs to support both audio and CV signals.
- Expansion port for future expandability.
- Reverse polarity protection.
- Skiff friendly.
-
Designed and Made in the UK.
-
Power: +12V 125ma -12V 125ma
- Size: 16HP
- Depth: 32mm
- Attenuation: approx -70db
Video: https://youtu.be/MIG0ha_dXWE
Product Specs
- Item Number: 14802
- Make: ALM Busy Circuits
- Model: MEGA-TANG
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Dual/Stereo Mixer VCA Quad
- Made In: United Kingdom
- MPN: ALM033
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 16 HP 32 mm deep
- Power*: 125 mA +12V 125 mA -12V ? mA 5V
* User contributed details
