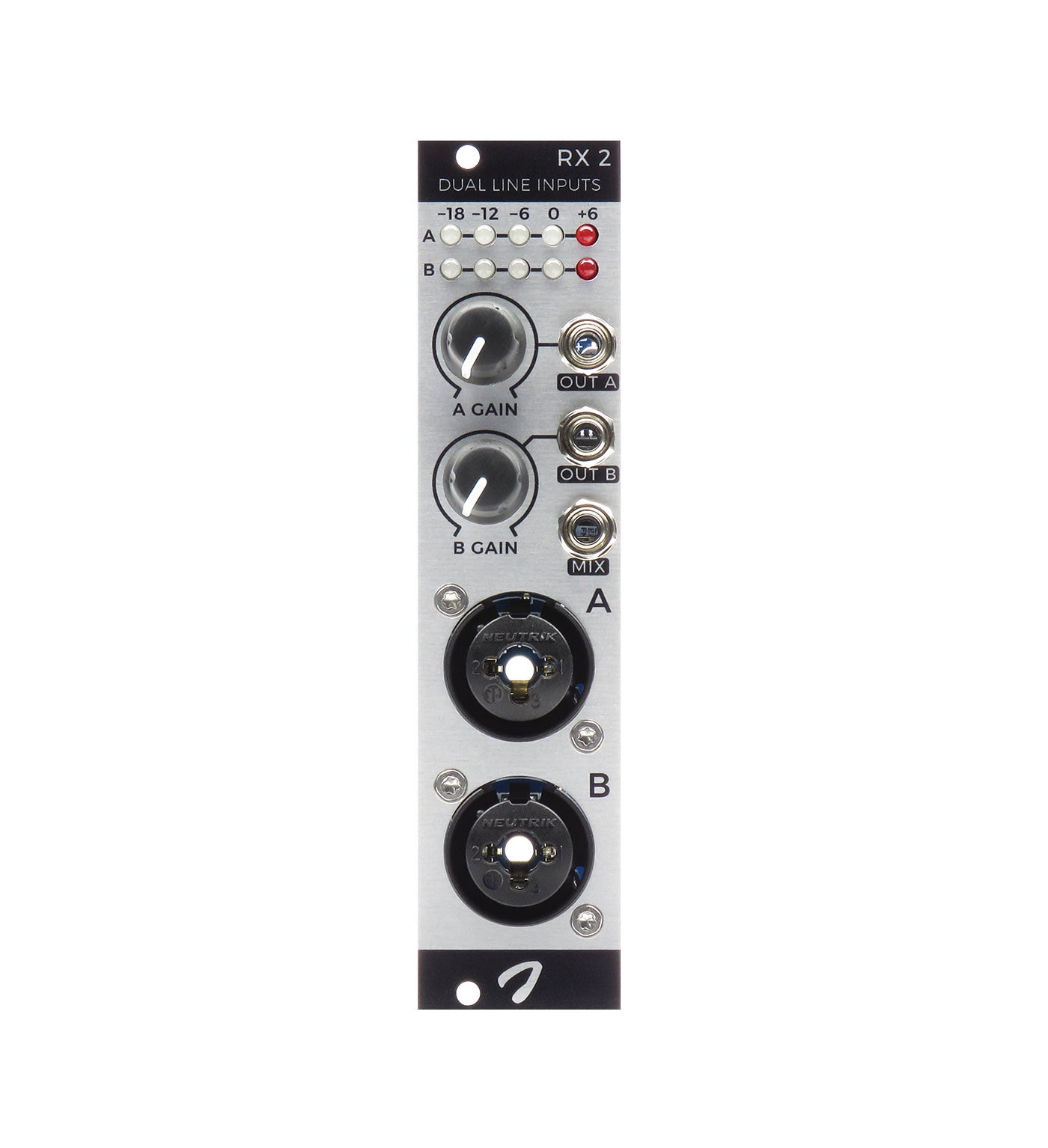

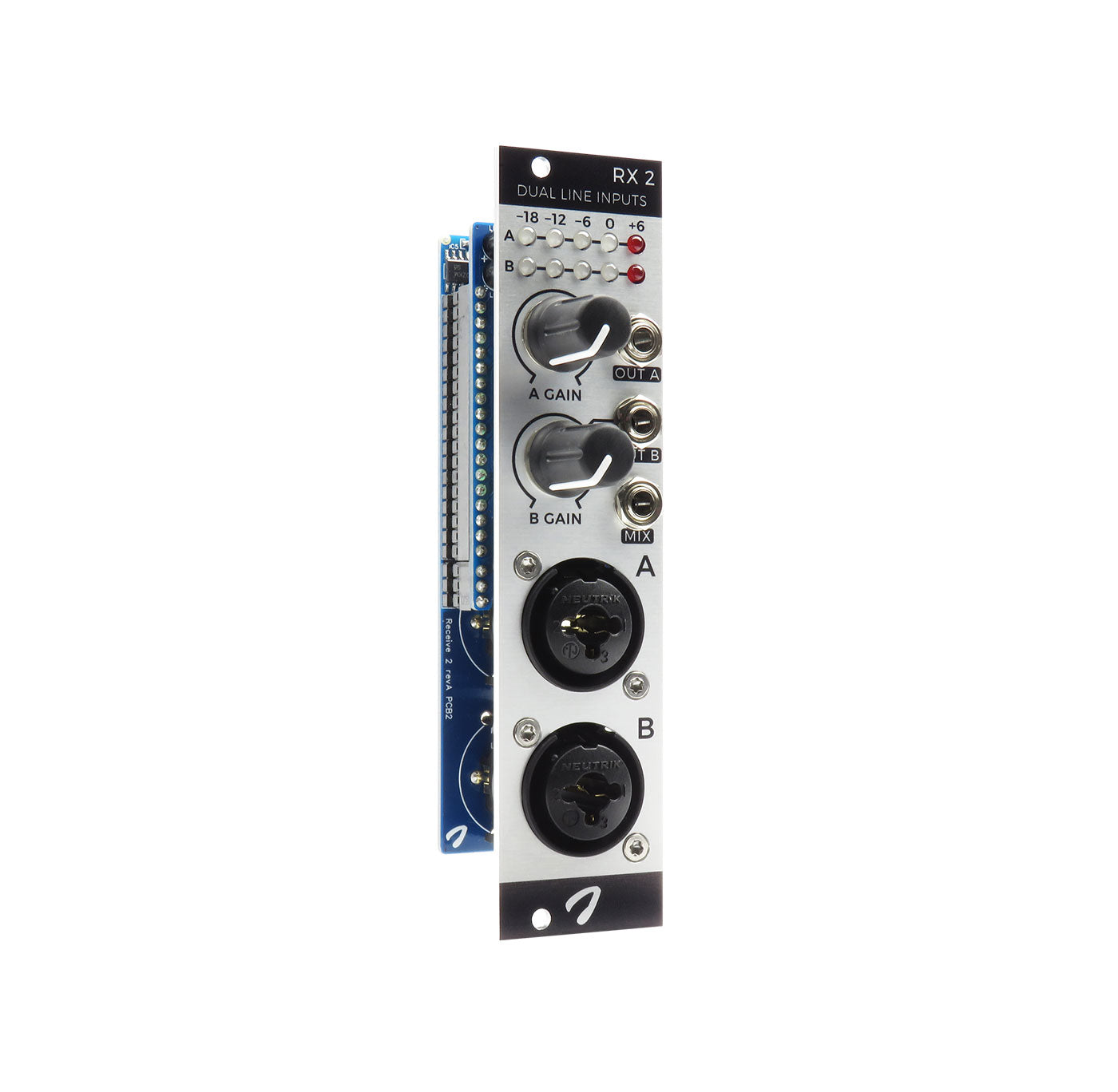

The 6hp Joranalogue Receive (or RX2 for short) provides a convenient all-in-one solution for interfacing external signals with eurorack. It offers two universal external inputs, which accept both balanced or single-ended signals via XLR or 6.35 mm jack connectors.
The circuit incorporates low-impedance design practices, radio-frequency (RF) filtering and premium balanced receivers to provide transformer-like interconnect performance in a compact and affordable module. And thanks to the electrostatic discharge (ESD) protection, it’s rugged enough to survive the rigours of performing on the road.
The very clean integrated pre-amps feature variable gain, ranging from unity to +40 dB on each channel. As a result, Receive 2 can handle just about any signal source you may encounter, including electric instruments, piezoelectric pickups and many dynamic microphones.
Adjusting the gains is a breeze thanks to the dual peak-responding LED meters. A mix output is included as well, so external signals can be easily mixed directly in the module.
Brand new with warranty
Video: https://youtu.be/5_XEvcAxEEg
Product Specs
- Item Number: 14761
- Make: Joranalogue
- Model: Receive 2
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: External
- Made In: Belgium
- MPN: JORR2
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 6 HP 45 mm deep
- Power: 35 mA +12V 35 mA -12V 0 mA 5V
