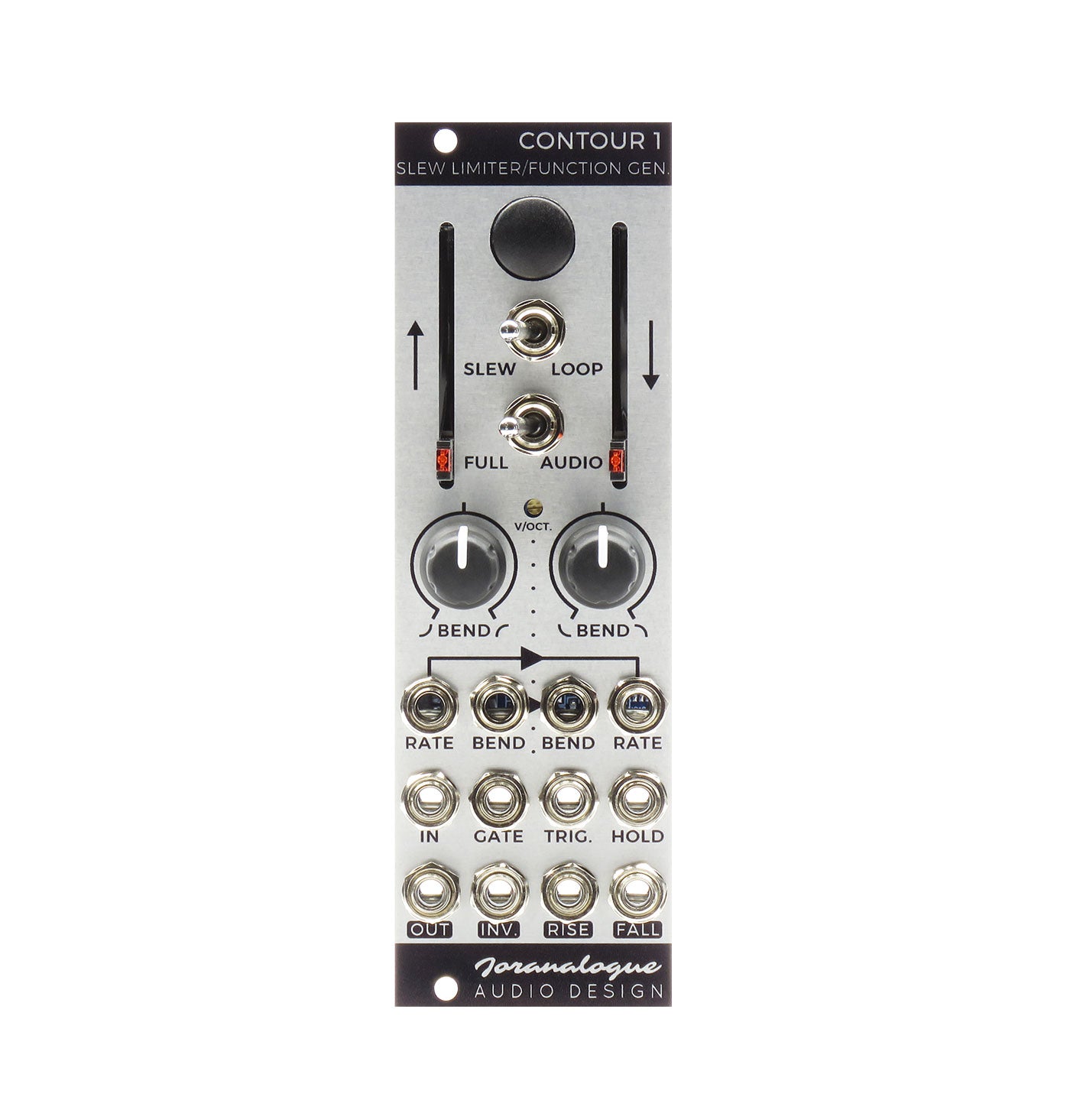

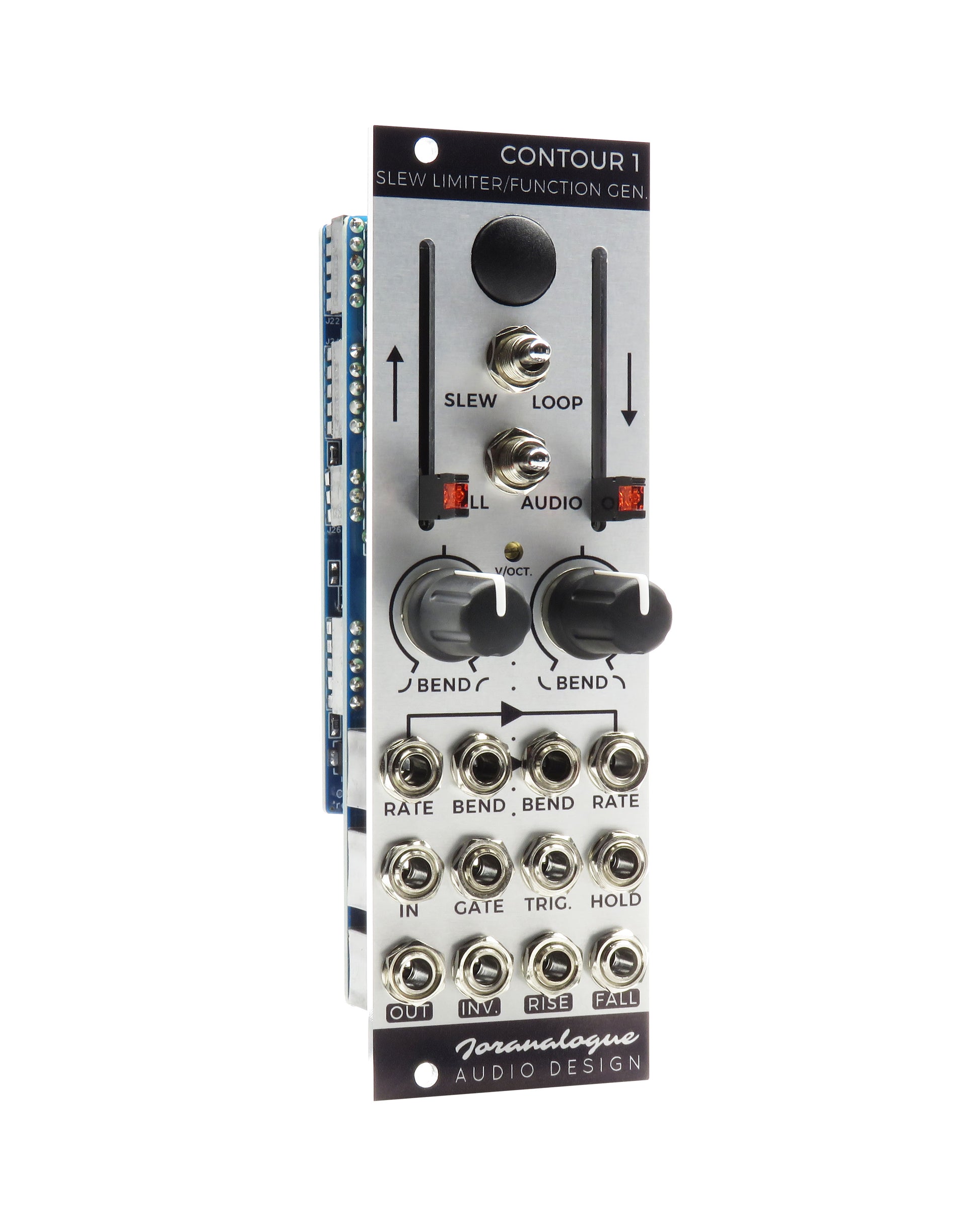

Contour 1 brings a fresh approach to the voltage controlled slew limiter. A slew limiter slows down the rate of voltage change in a signal. On the Contour 1, the rising and falling rates can be individually set using sliders and CV modulation. The gate and trigger inputs allow the module to be used as a function generator: create snappy attack-release (AR) and attack-decay (AD) envelopes, with slope times ranging from 500 µs to 30 seconds. The dedicated gate input makes it easy to generate +10 V envelopes from any signal source. A trigger will also reset the output voltage.
Video: https://youtu.be/wsd8hDgo2O4
Product Specs
- Item Number: 14758
- Make: Joranalogue
- Model: Contour 1
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Function Generator Slew Limiter
- Made In: Belgium
- MPN: JORC1
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 8 HP 30 mm deep
- Power: 90 mA +12V 85 mA -12V 0 mA 5V
