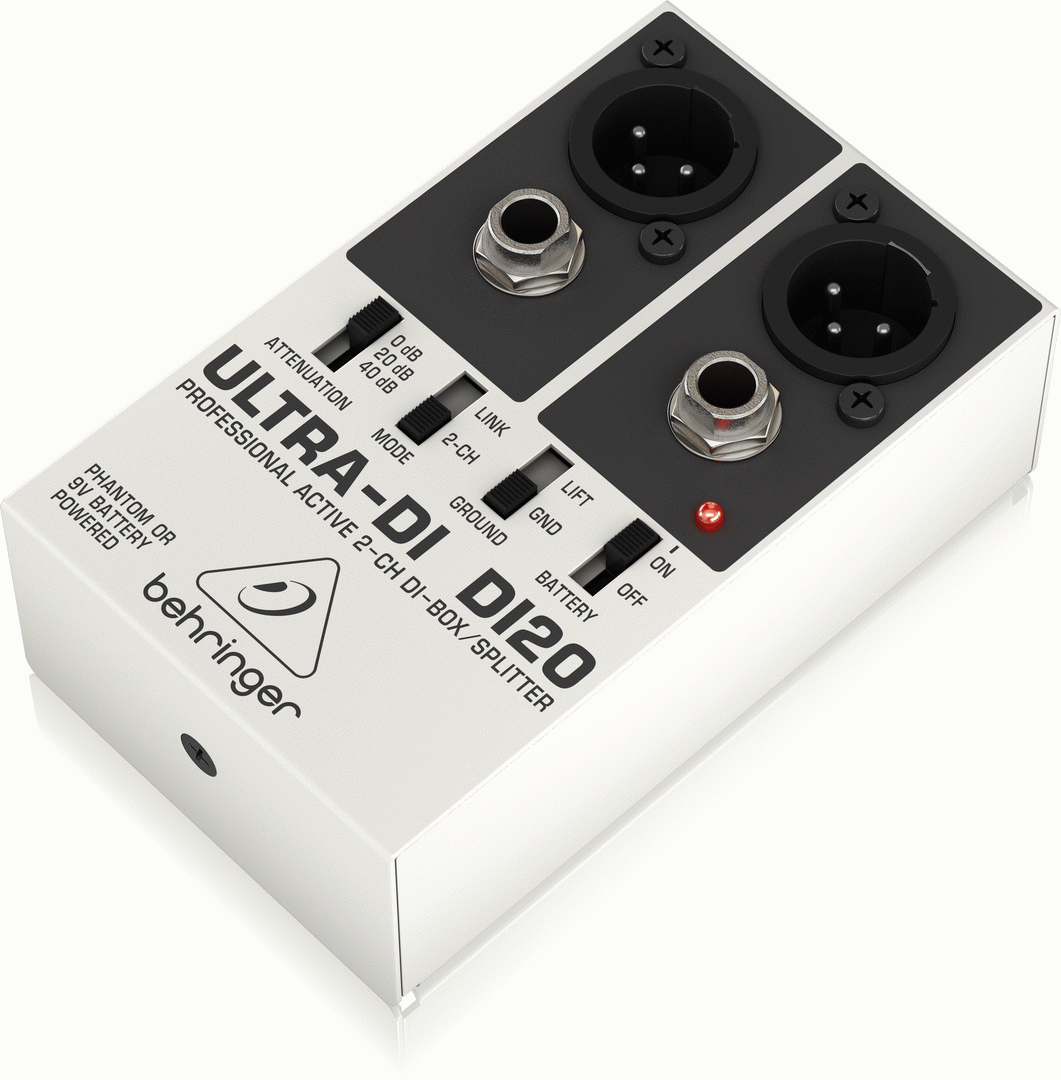

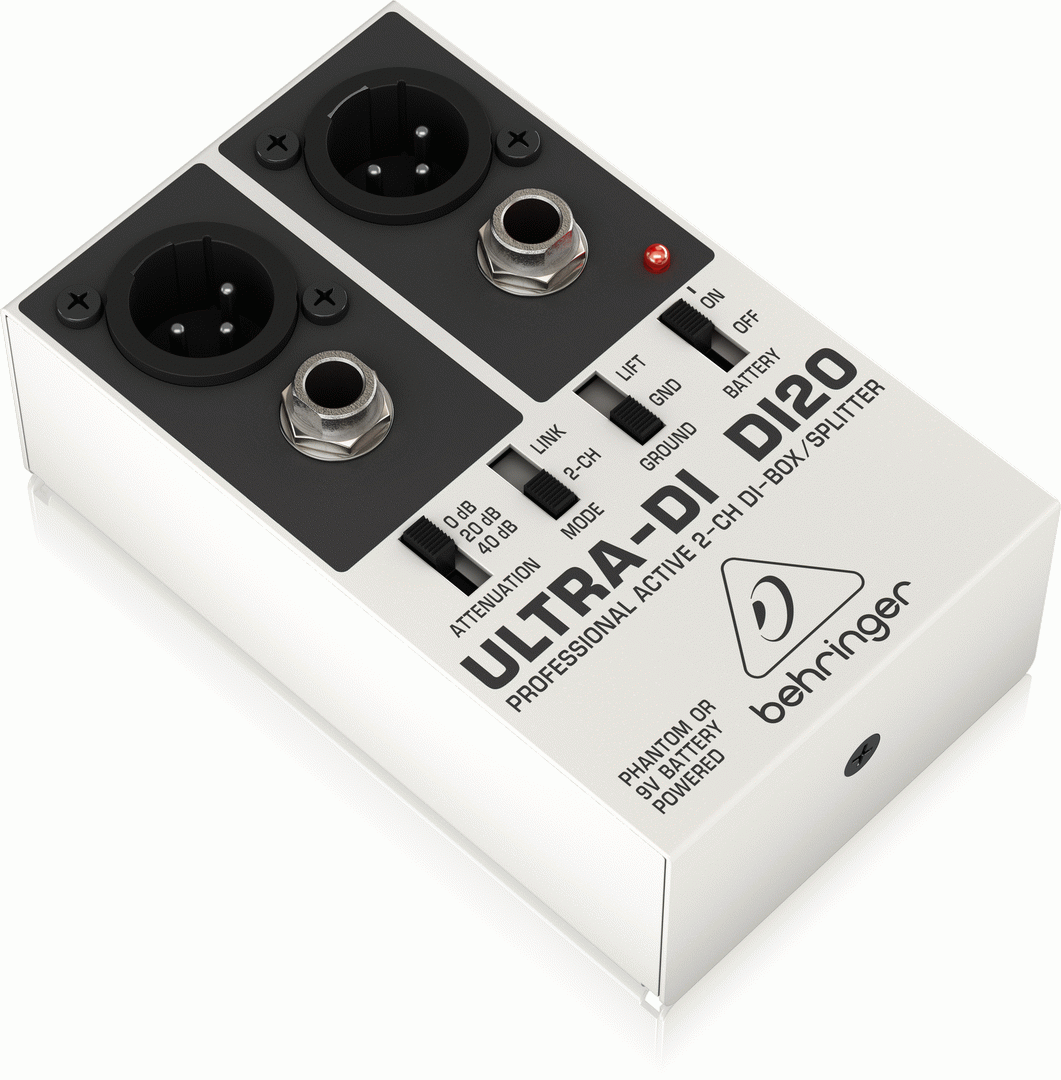

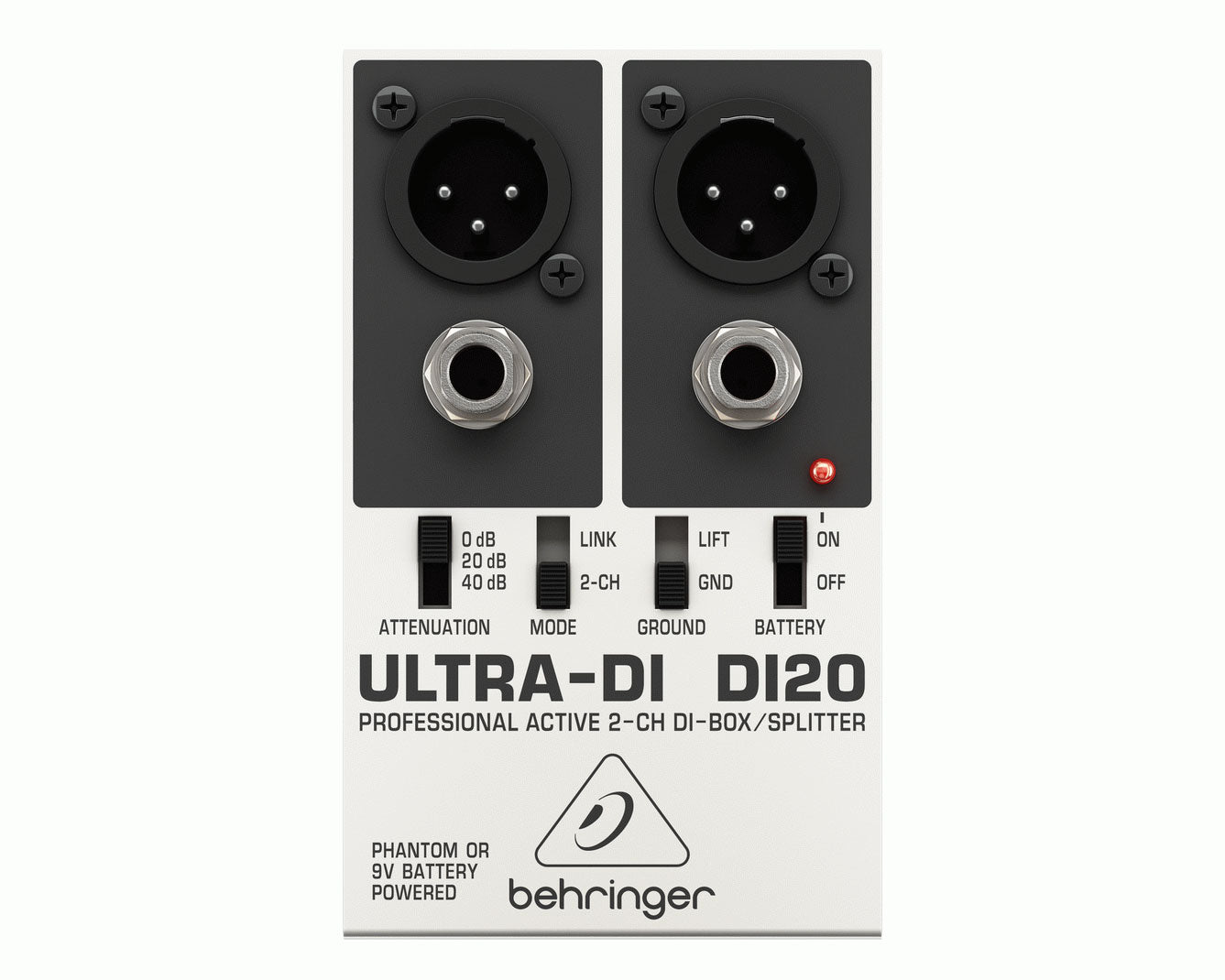

The ULTRA-DI DI20 is an affordable DI (Direct Injection) box that can convert up to two separate, unbalanced ¼ " TRS lines into two balanced XLR outputs, or function as a signal splitter. By flipping a switch, you can use the DI20 as a launching pad for two separate mono signals, a stereo signal – or a split-signal feeding two separate amps. The DI20 also features a superb ground-lift switch, and the 3-position input attenuator can accommodate input levels of up to +48 dBu. This handy built-in attenuator also allows you to connect directly to your amplifier’s speaker outputs, even amps rated as high as 3,000 Watts.
You can power the DI20 with either a 9 volt battery or your mixer’s phantom power supply (+18 to +48 V DC).
It's an ultra compact, road-suitable device with quality metal housing.
- Professional and multi-purpose direct injection box for stage and studio applications
- Provides impedance and signal matching for the direct connection of instruments to mixers and amplifiers
- Converts 2 independent unbalanced 1/4'' TRS line inputs into 2 balanced XLR outputs
- Additional Split mode (channel 1 assigns signal to both XLR outputs)
- Ultra-flat frequency response due to servo-balanced operation
- Internal battery automatically shuts off when phantom power is applied
- Allows direct connection to speaker outputs with up to 3,000 Watts
- Ground Lift switch eliminates typical ground loop problems
- Input 2 usable as channel 1 Link output (additional to XLR output)
- ¼“ TRS and gold-plated XLR connectors
- Ultra-rugged, road-suitable metal case
- Designed and engineered in Germany
Pro Audio / DI Boxes
Product Specs
- Item Number: 14477
- Make: Behringer
- Model: ULTRA-DI DI20 DI Box
- Condition: Brand New
- Finish: Black
- Categories: pro-audio ⇒ di-boxes
- Made In: China
- MPN: BEH-DI20
- EAN: 4033653100571
