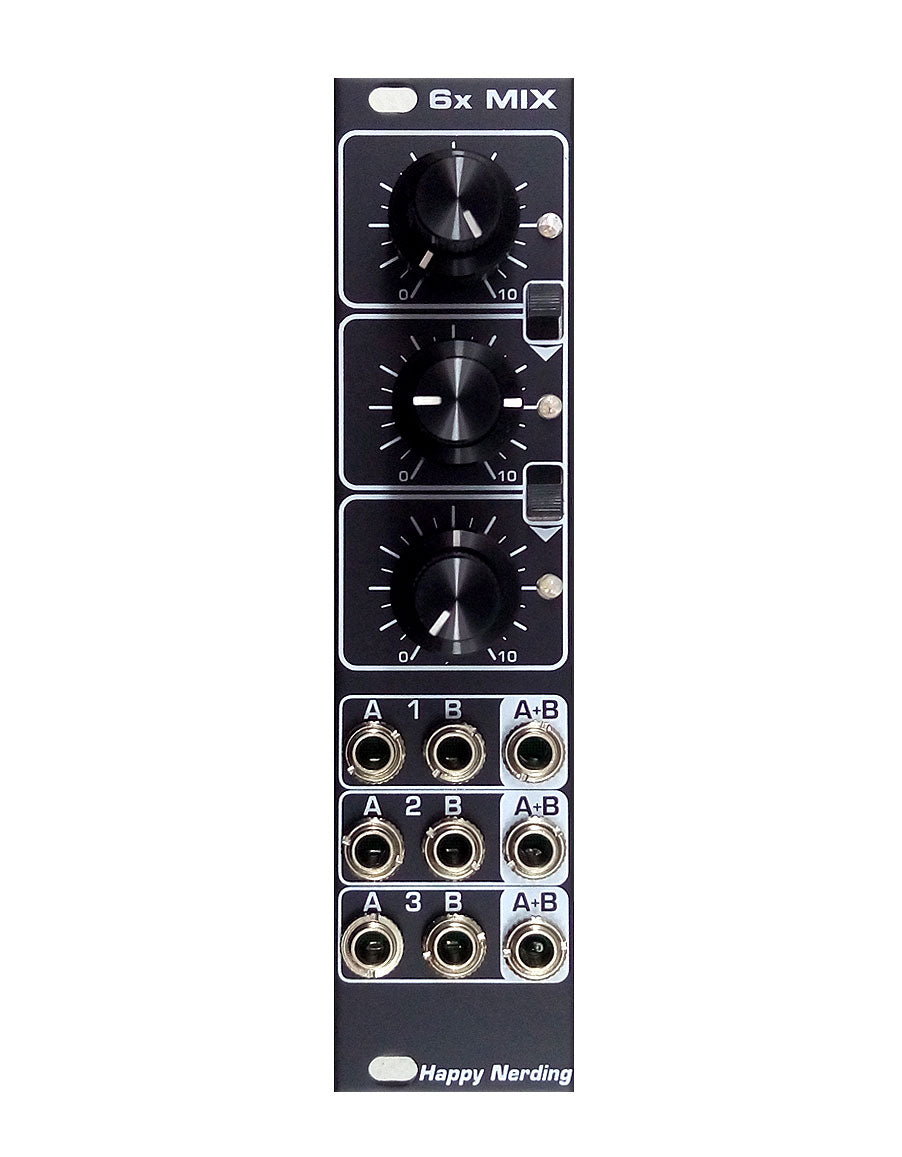

6xMIX is a six channel audio (AC coupled ) mixer, channels arranged in three groups with separate outputs having led indicators. Each group can be switched to mix with the subsequent group, allowing for 2-2-2, 4-2, 6 mix configurations. The module can also be used to mix two stereo channels plus separate group of two mono channels. Perfect audio performance with the lowest noise and distortion amounts.
The inner knobs control the A inputs, while the outer knobs control the B inputs.
50 mA +12V 50 mA -12V 35 mm Depth 6 HP wide
Product Specs
- Item Number: 13057
- Make: Happy Nerding
- Model: 6xMIX - Black
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Mixer
- Made In: Spain
- MPN: 6xMIX
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 6 HP 35 mm deep
- Power*: 50 mA +12V 50 mA -12V 0 mA 5V
* User contributed details
