Doepfer A-100G6

Doepfer A-100G6

Regular price $949.00 NEW

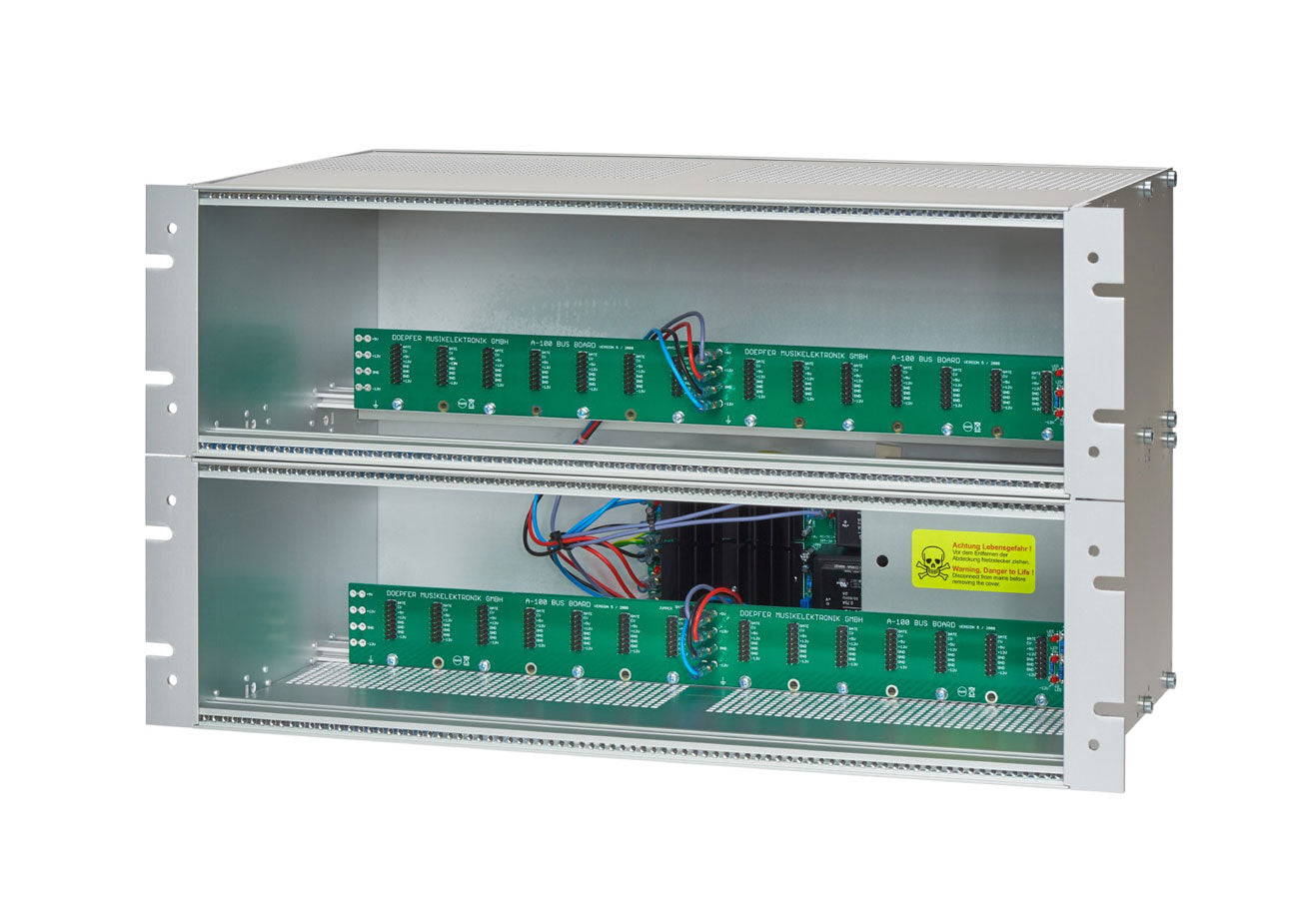

19" rack version of the A-100 housing with 6U & 84 HP

Measures (in mm):

outside ~ 482 width x 266 height x 240 depth (incl. 19" mounting angles) outside ~ 445 width x 266 height x 240 depth (without 19" mounting angles) inside ~ 425 width x 245 height x 235 depth (2 x 3U/84HP) useable depth for modules: ~ 140 mm

Weight 5.5 kg

Quantity of bus boards: 2

Maximum Output Current: with built-in A-100PSU2 (until about end of 2015): +12V/1200mA, -12V/1200mA with built-in A-100PSU3 (since about early 2016): +12V/2000 mA, -12V/1200mA, +5V/4000mA

Brand new with warranty.
