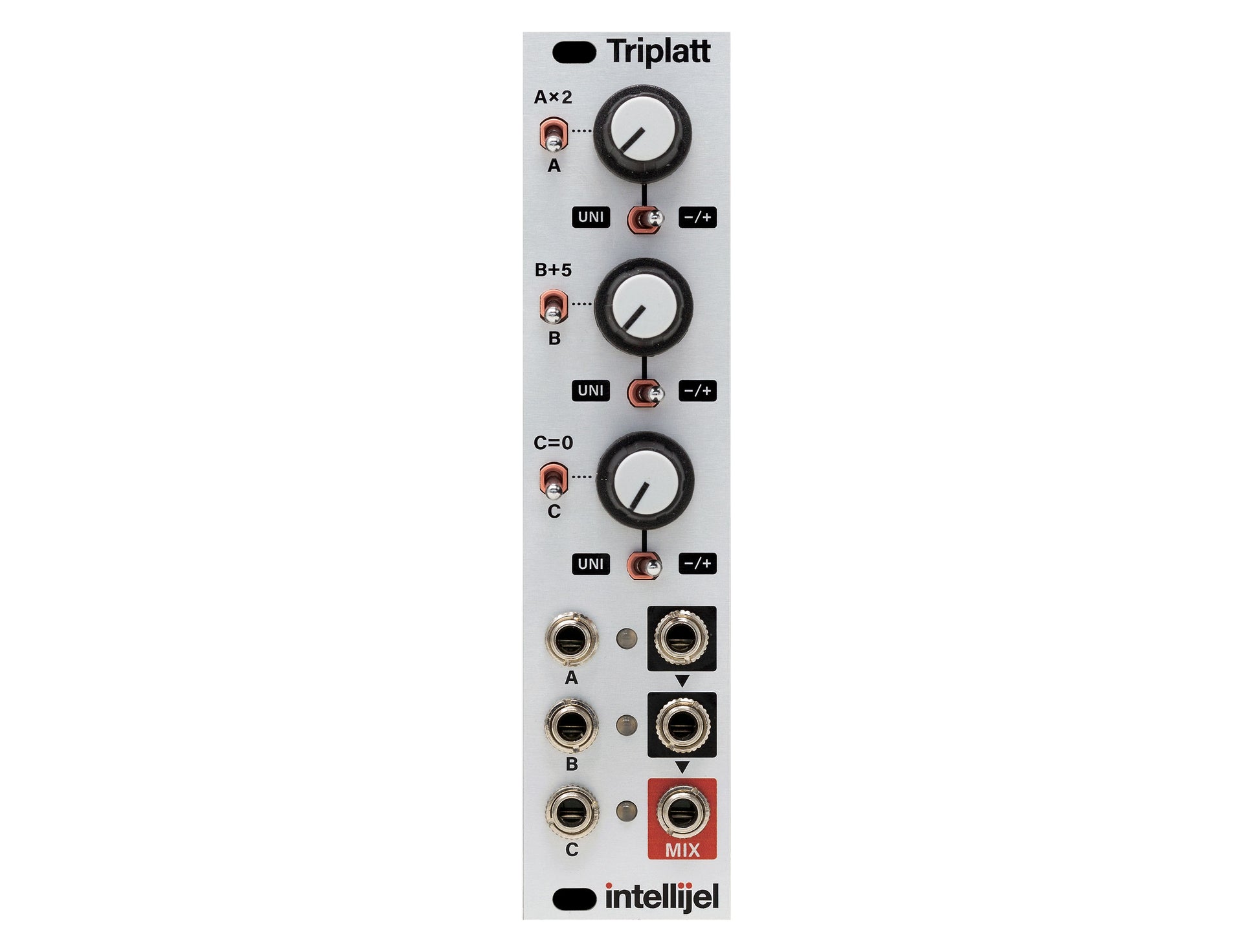

Triplatt is a 6HP three-channel active/buffered attenuverter and summing mixer. Each channel has a knob, which can function as a unipolar attenuator or a bipolar attenuverter, depending on the setting of its corresponding two-position polarity switch. It’s a versatile and super handy utility module that will find its way into almost any patch you make.
Each input is normalled to a built-in +5V DC voltage source. With nothing plugged into the jacks, each knob controls a voltage range of 0 to +5 V or -5 to +5 V depending on the position of the channel polarity switch.
Each output is normalled to mix into the output of the channel below, making it possible to do sub mixes in groups of two or three.
In addition, each channel has a “special function” switch to alter its input voltage in a specific way. Channel A has a 2x voltage multiplier switch, allowing you to double the voltage sent into Channel A. Channel B has a +5V switch, allowing you to add 5V to whatever voltage is sent into Channel B. Channel C has a mute switch, allowing you to completely turn off the signal being sent into Channel C.
Brand new with warranty.
Video: https://youtu.be/fd51dilT8tc
Product Specs
- Item Number: 12080
- Make: Intellijel
- Model: Triplatt
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Attenuator Controller Dual/Stereo Mixer Polarizer Switch Utility
- Made In: Canada
- MPN: TRIPLATT-3U
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 6 HP 21 mm deep
- Power: 49 mA +12V 25 mA -12V ? mA 5V
