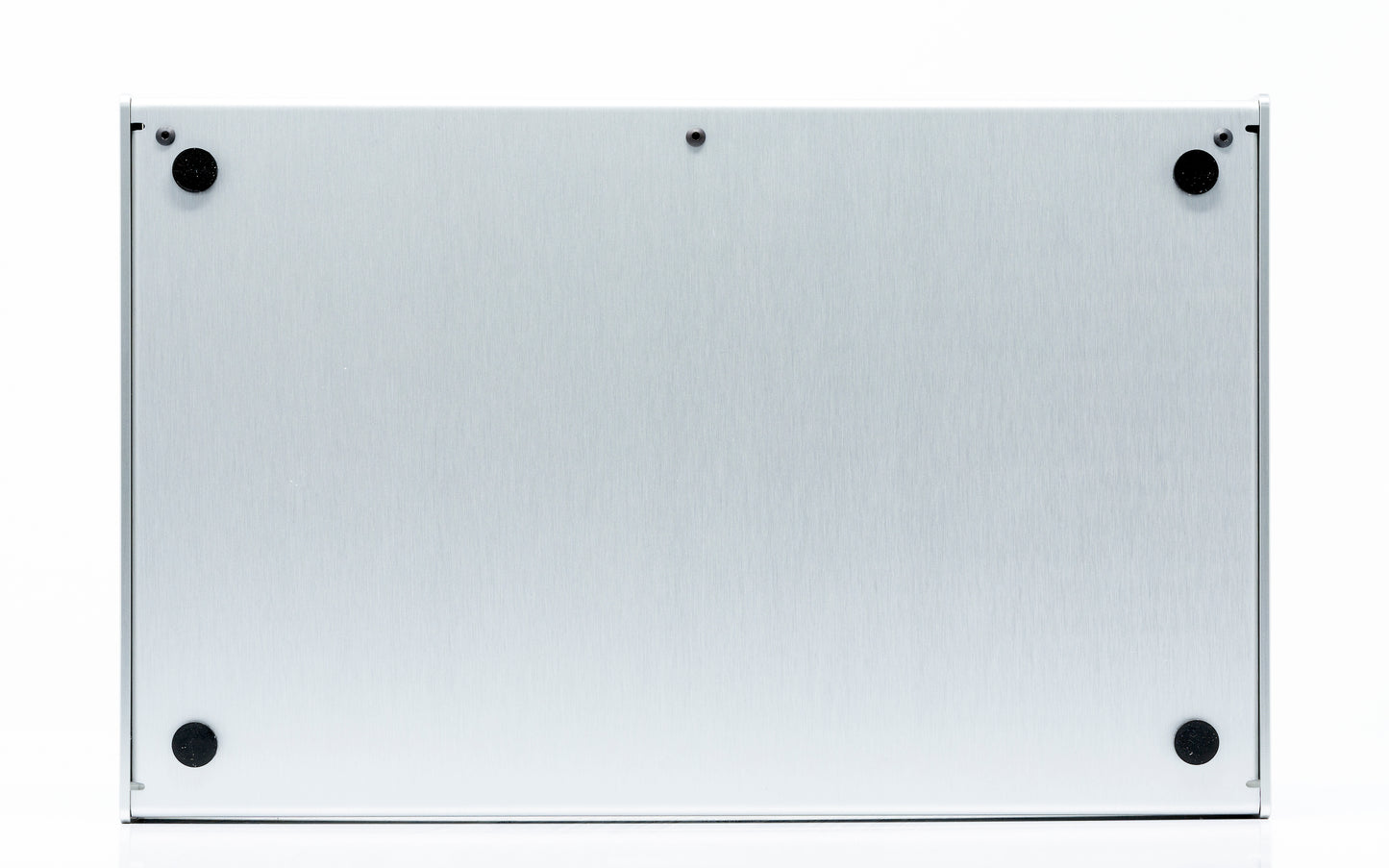

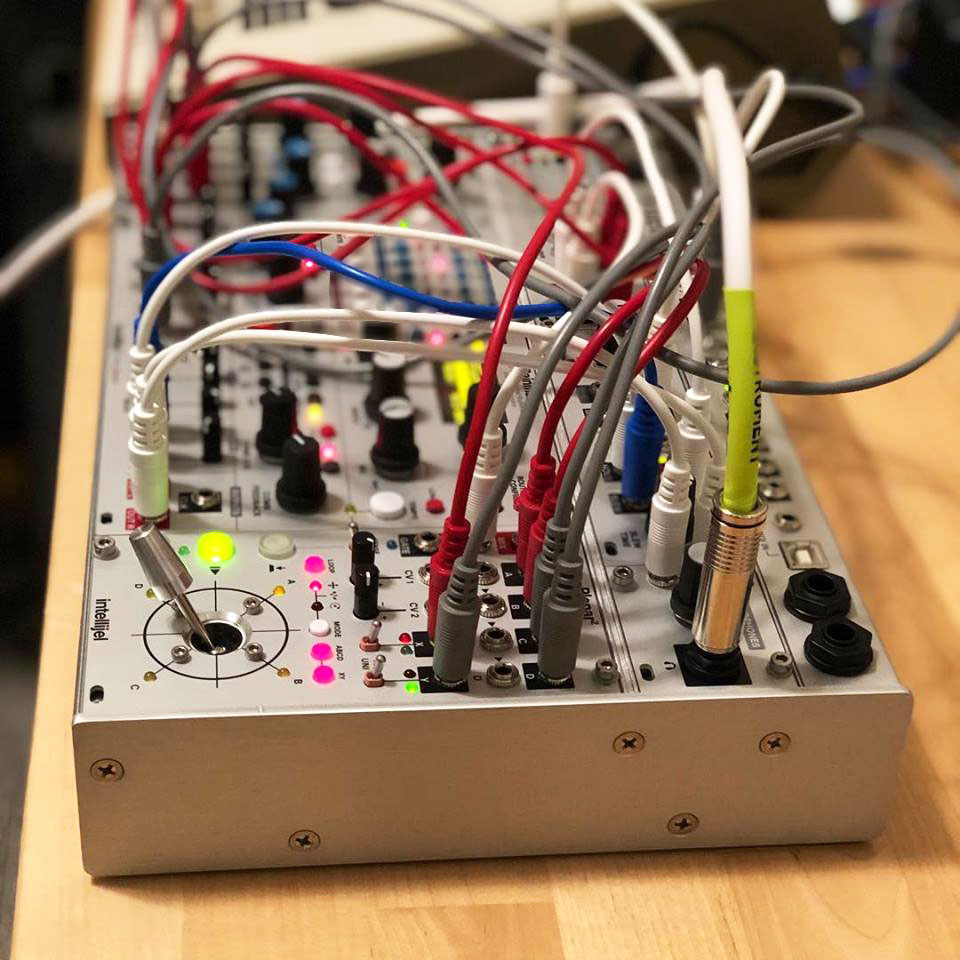

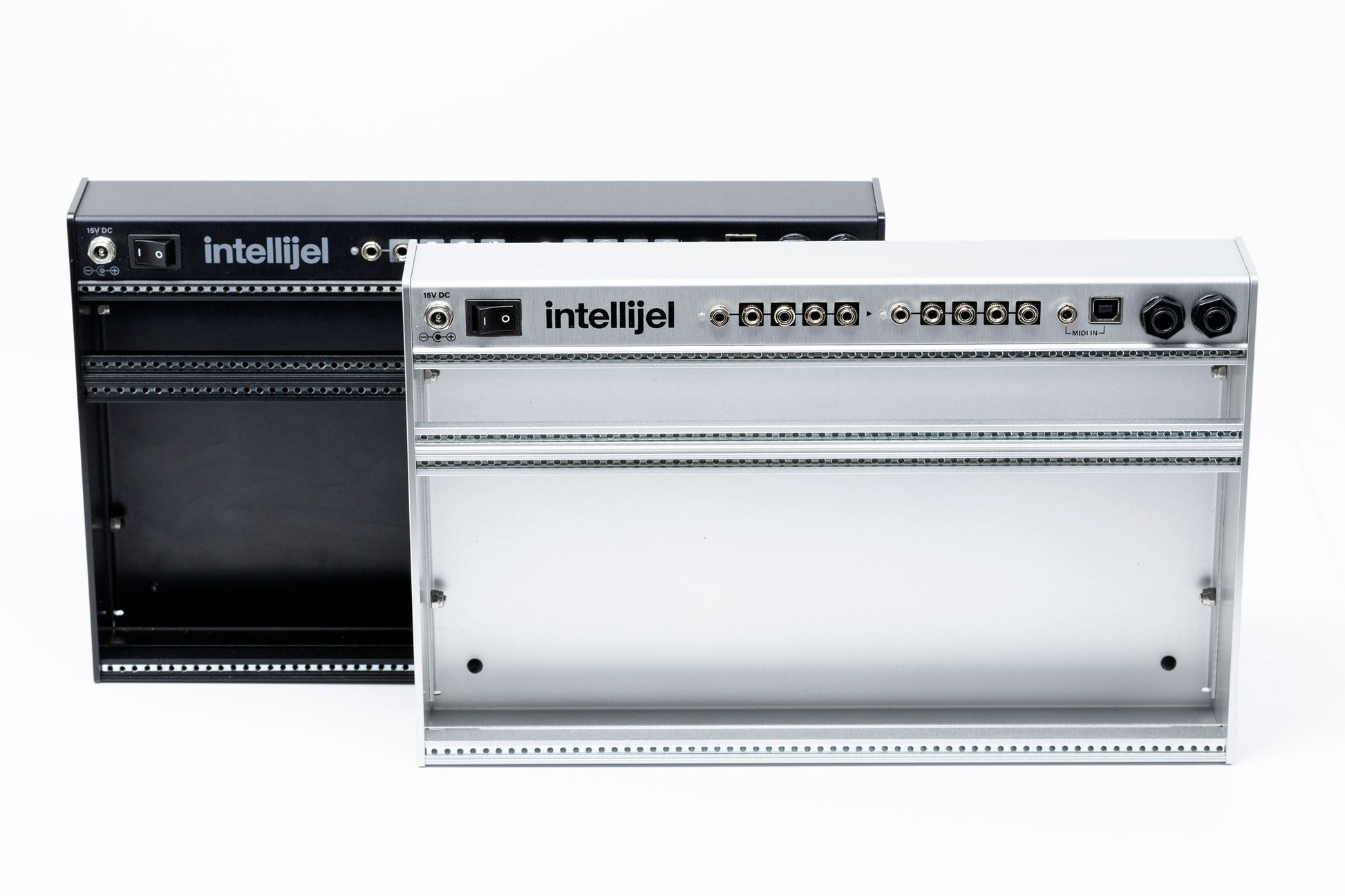

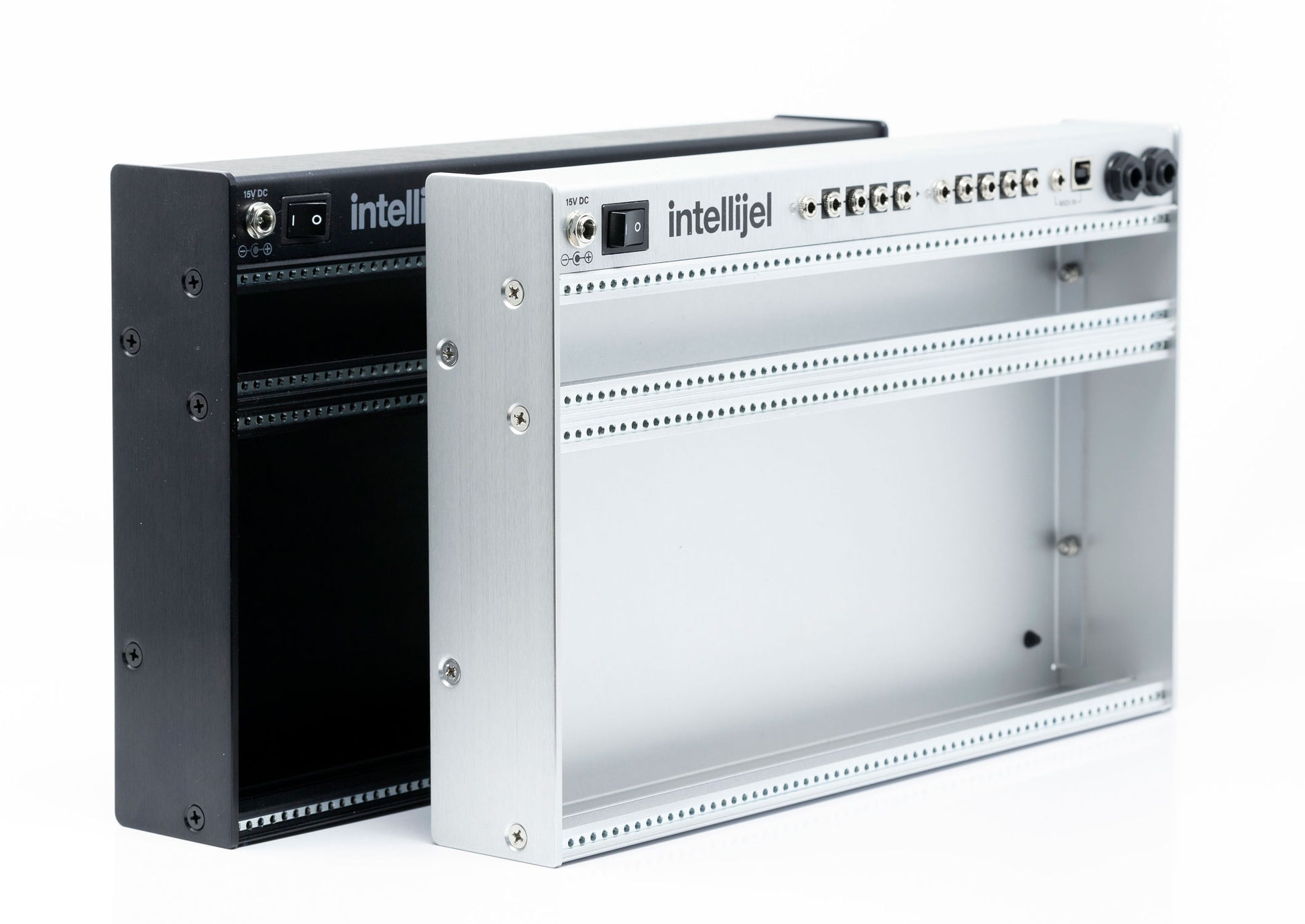

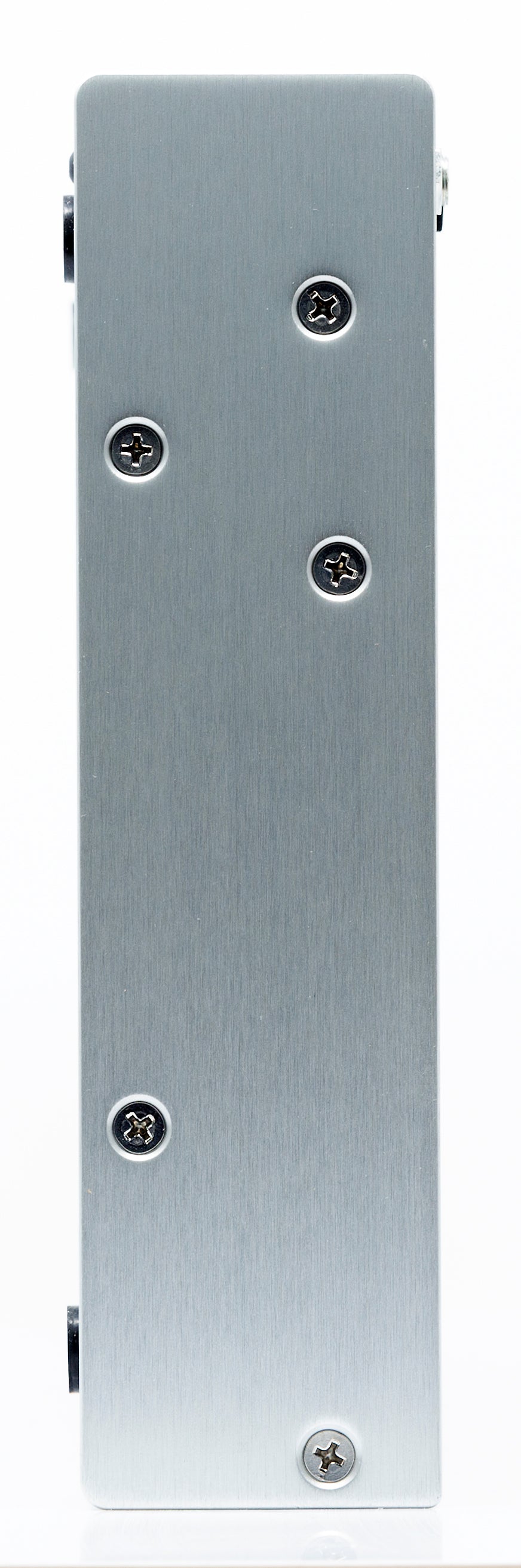

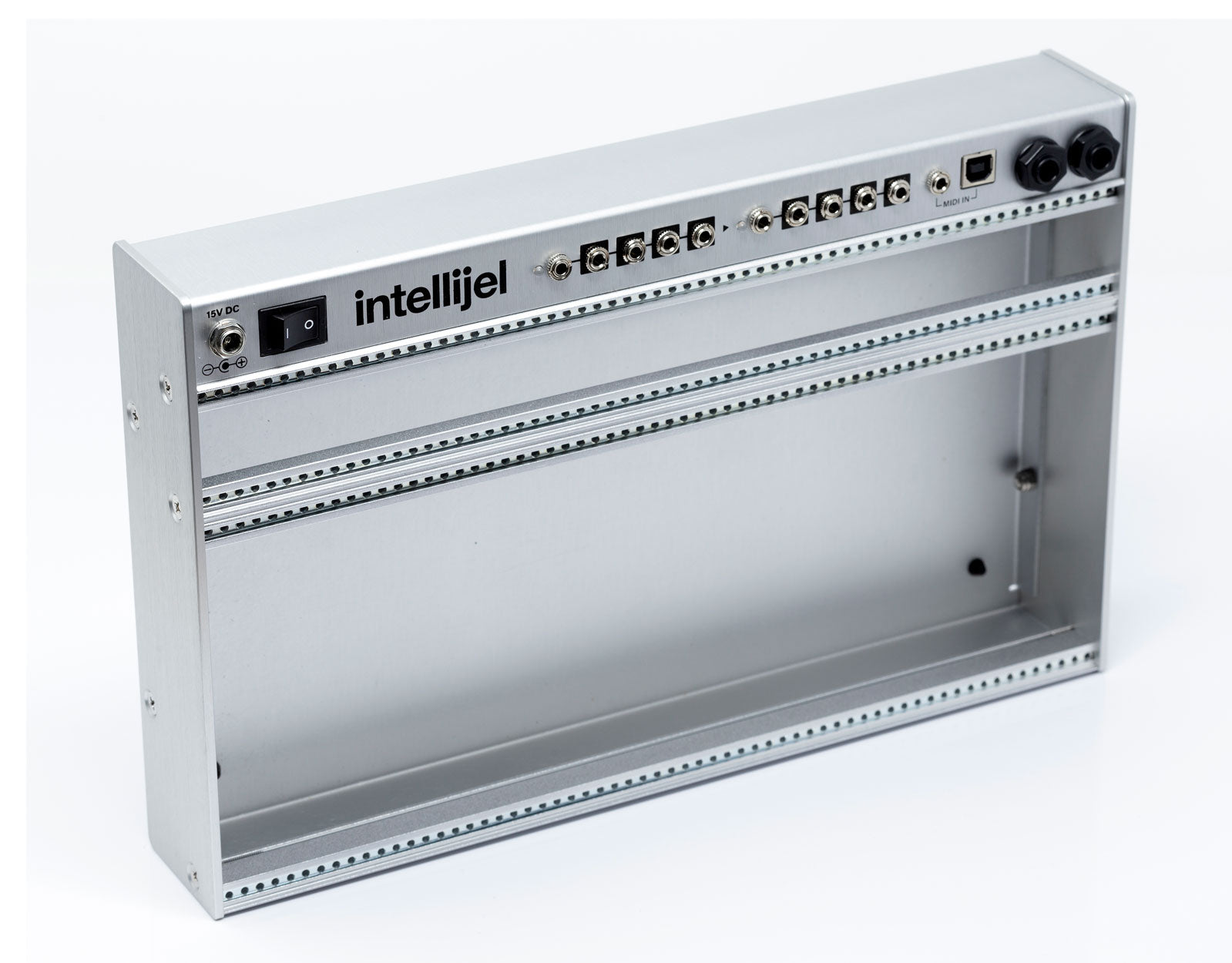

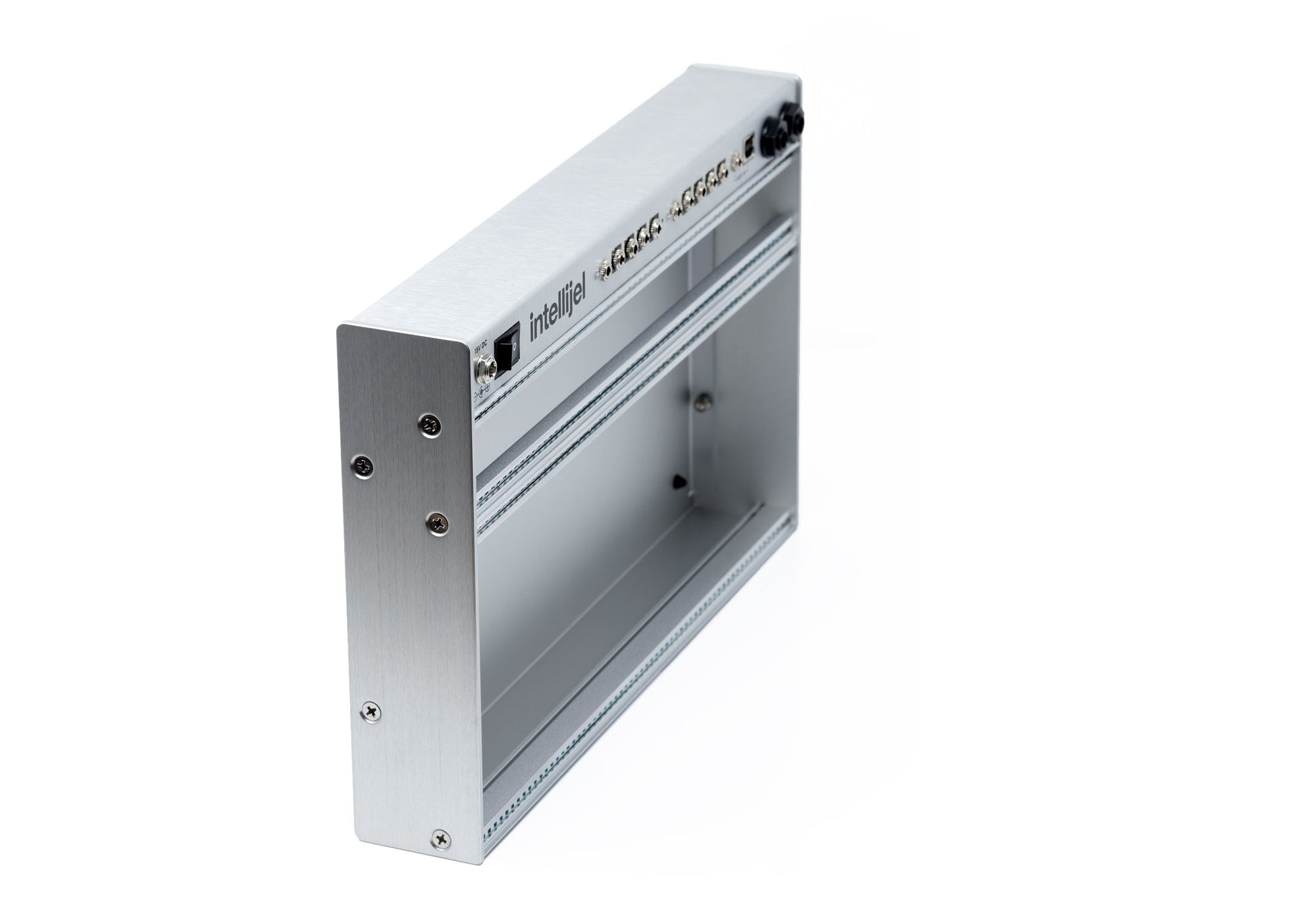

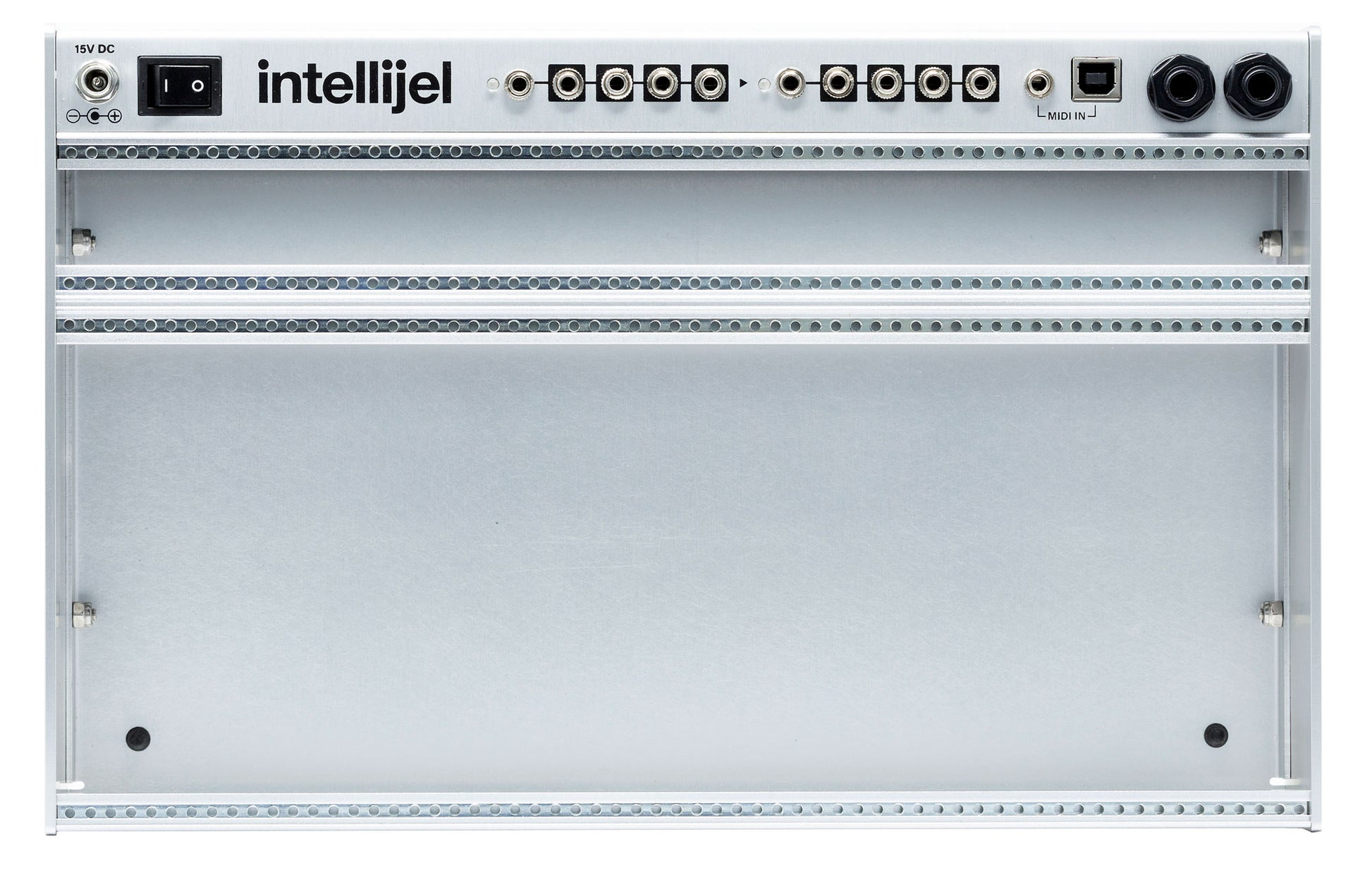

The new palette from Intellijel is a 4U x 62HP portable powered case, available in black or silver.
Intellijel’s Palette case is compact enough to slip into a laptop bag, and shallow enough to rest comfortably on a desktop — yet its capabilities far exceed its size. It contains 62 HP of 3U space for mounting eurorack standard 3U modules, plus another 62 HP of 1U space for all those necessary little utility modules. In addition, each Palette contains:
- Two built-in 1x4 buffered mults (chainable into a 1 x 8) with input level/polarity LEDs
- Built-in MIDI Input (both USB and ⅛” TRS MIDI via the supplied 5-pin DIN adapter)
- Two ¼” TRS jacks, which can function as either two outputs (ideal for configuring Palette as a synthesiser), two inputs (perfect for those using Palette as an effects processor), or an input/output combination (ideal for sending and returning signal to an external effects module or stomp box.
- Robust power circuit with 12 shrouded power connectors, capable of supplying up to 1.2A of both +12V and -12V to your Eurorack modules.
- Two 5V connectors, delivering up to 500mA between them.
- Access connectors for internally connecting I/O modules to the built-in MIDI and Audio Jacks
- Link connector for plugging supported products (like a Mixup module) directly into the ¼” jacks. Palette is as stylish as it is practical, as durable as it is portable; and every bit as flexible as your imagination allows.
Dimensions: 324.4 x 204.4 x 51.3 (mm) (58.5 mm high, when including rubber feet/jacks) 12.77” x 8.05” x 2.02” (2.3” high, when including rubber feet/jacks)
Max Module Depth: 45.5 mm for middle 60HP 37.42mm at each 1HP edge (due to nut and metal lip)
PSU power max rating: 1.2A @ 12V 1.2A @ -12V 500mA @ +5V

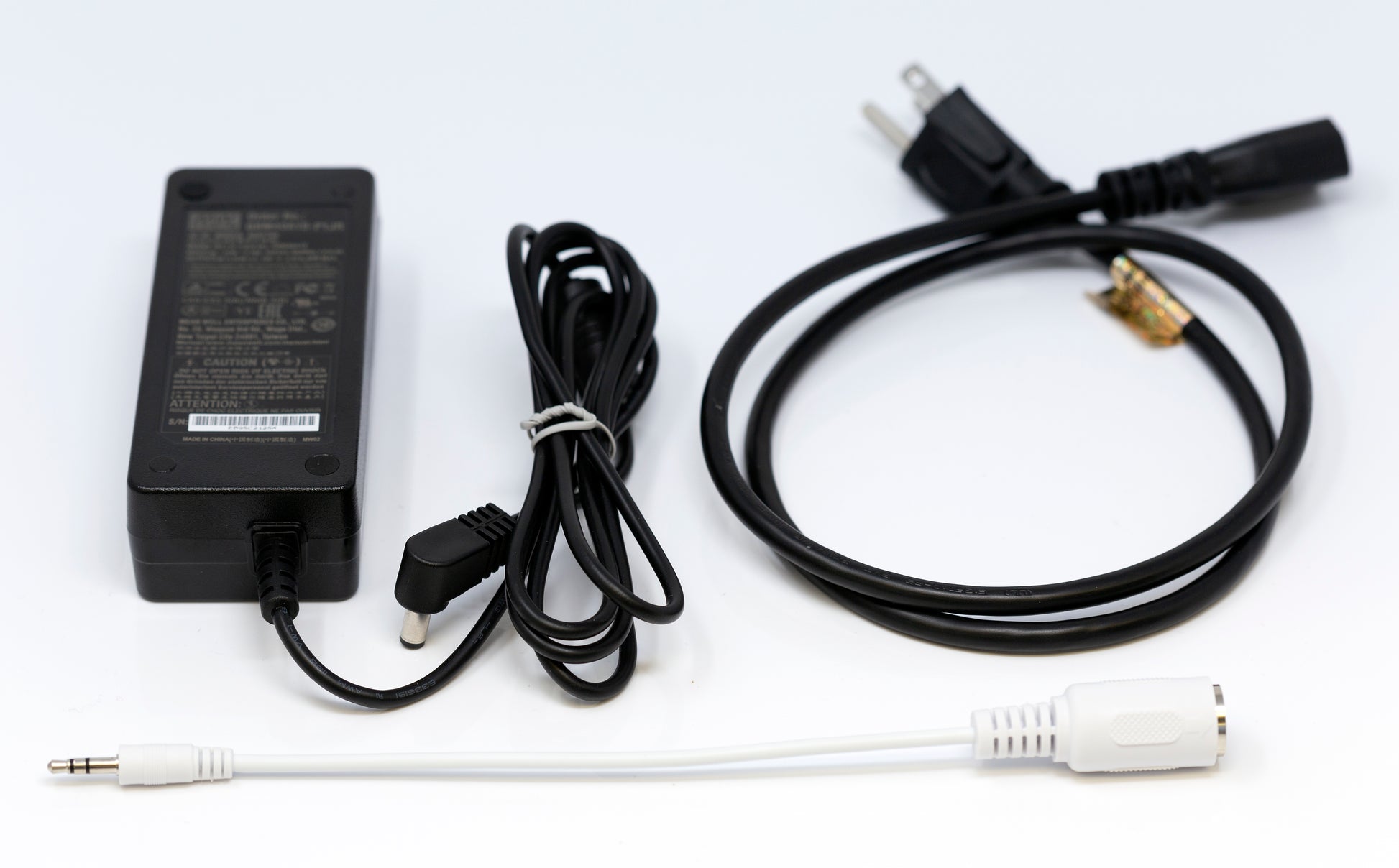

Includes 40 watt Meanwell adapter, PSU and Midi adapter cable.
Product Specs
- Item Number: 12078
- Make: Intellijel
- Model: Palette 62 Silver
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Utility External MIDI Multiple Power
- Made In: Canada
- MPN: CASE-4U-62HP
- Modular Grid: Eurorack ⓘ +
- Dimensions: 62 HP
- Power: Module does not draw current
