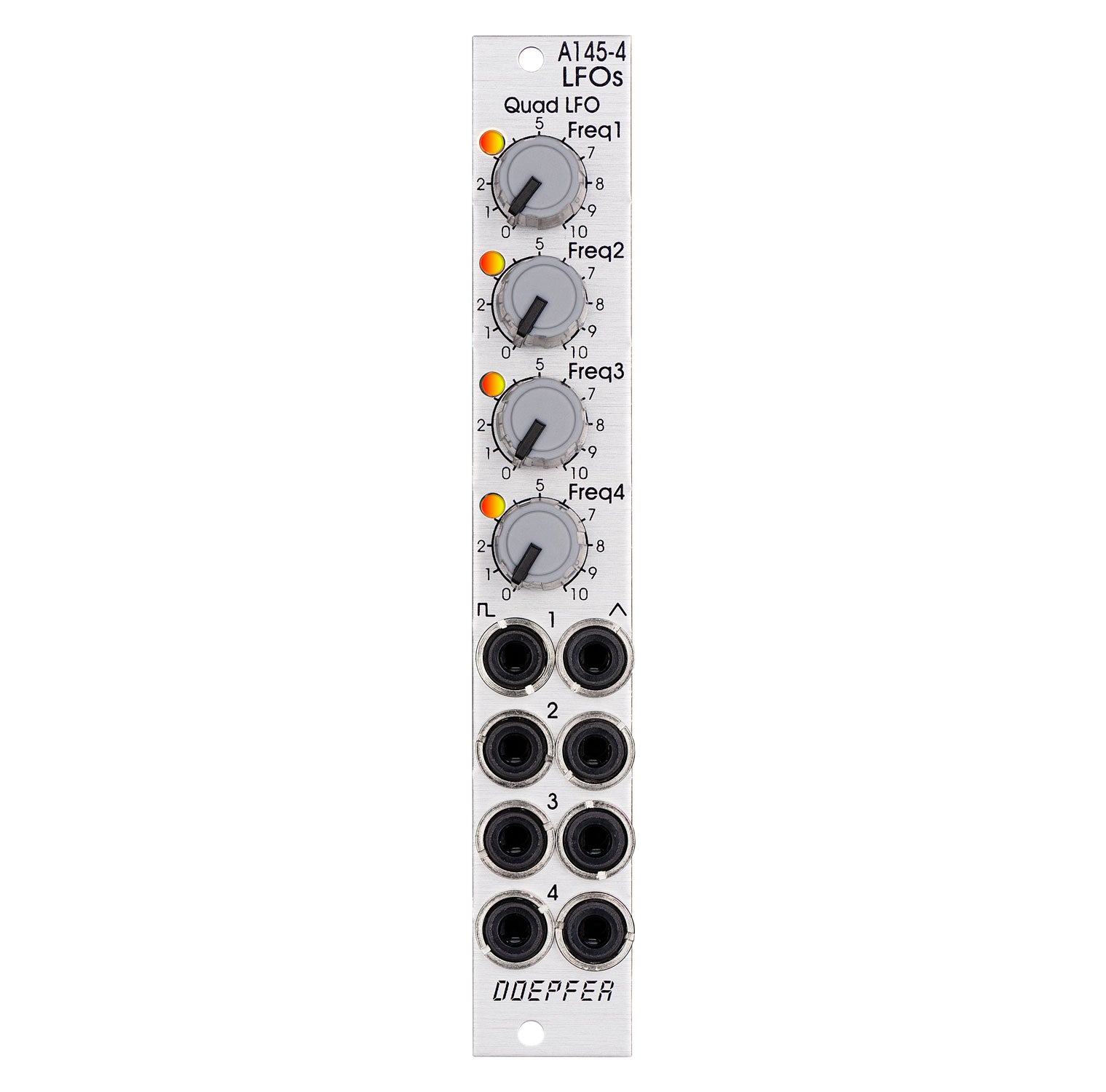

Module A-145-4 is a simple quad LFO. Virtually every system requires a few simple LFOs for modulation purposes. The module contains four simple LFOs with the waveforms triangle and rectangle. A dual color LED (red = positive / yellow = negative output voltage) indicates the triangle output of each LFO. 50Hz ... 0.04Hz (about 20 seconds, jumper removed) and about 2Hz ... 0.002 (about 8 minutes, jumper installed).
Video: https://youtu.be/wqWj_LX5SKE
Product Specs
- Item Number: 11831
- Make: Doepfer
- Model: A-145-4 Quad LFO Slim Line
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: LFO Quad Clock Generator
- Made In: Germany
- MPN: A-145-4
- EAN: 4250711114541
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 4 HP 30 mm deep
- Power*: 30 mA +12V 30 mA -12V 0 mA 5V
* User contributed details
