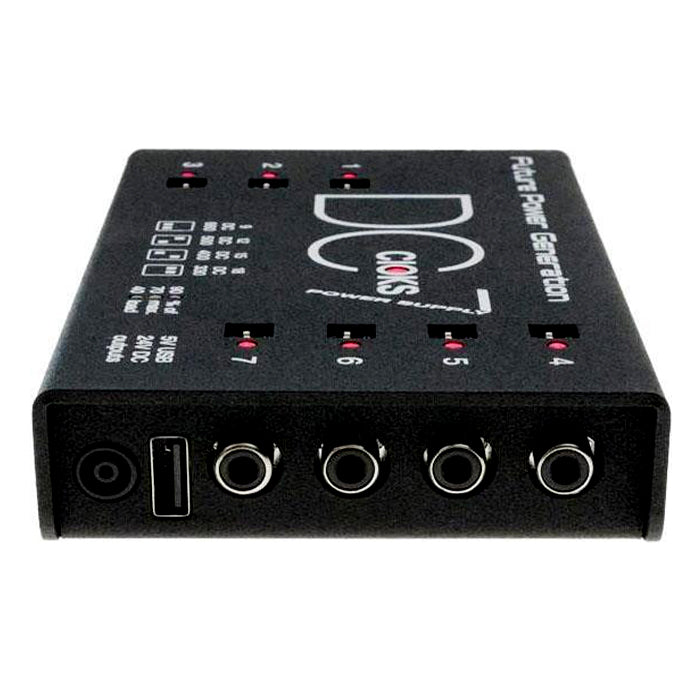

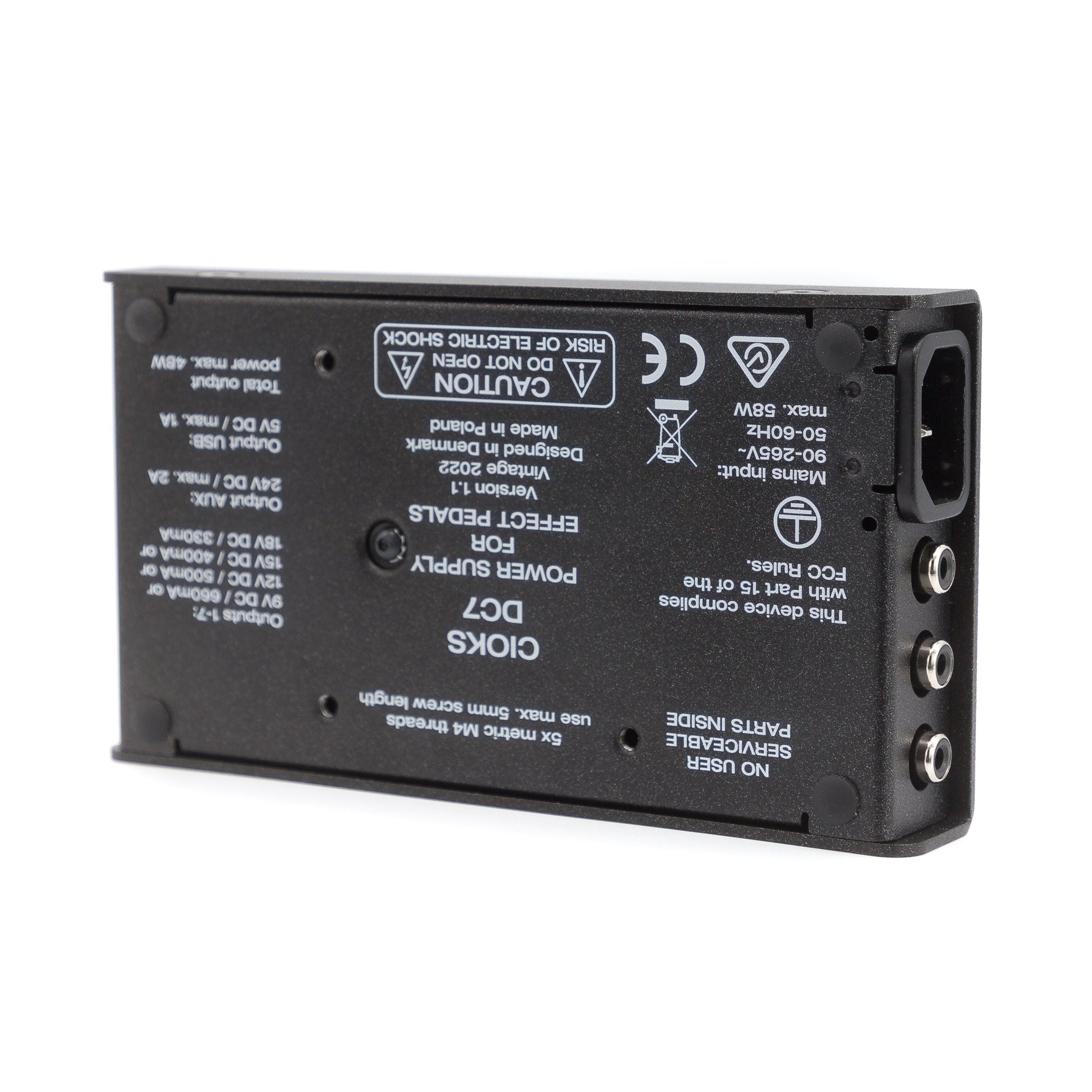

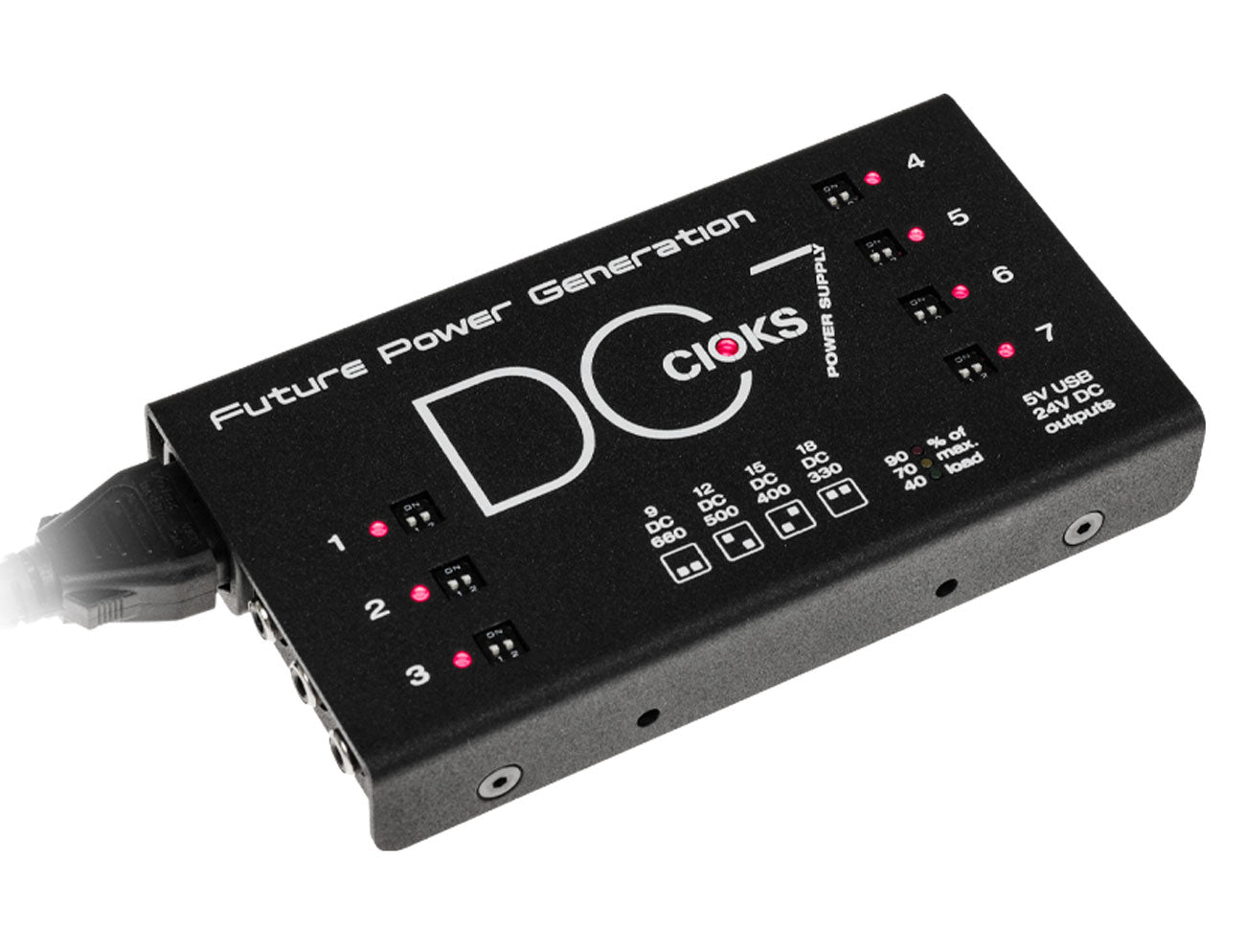

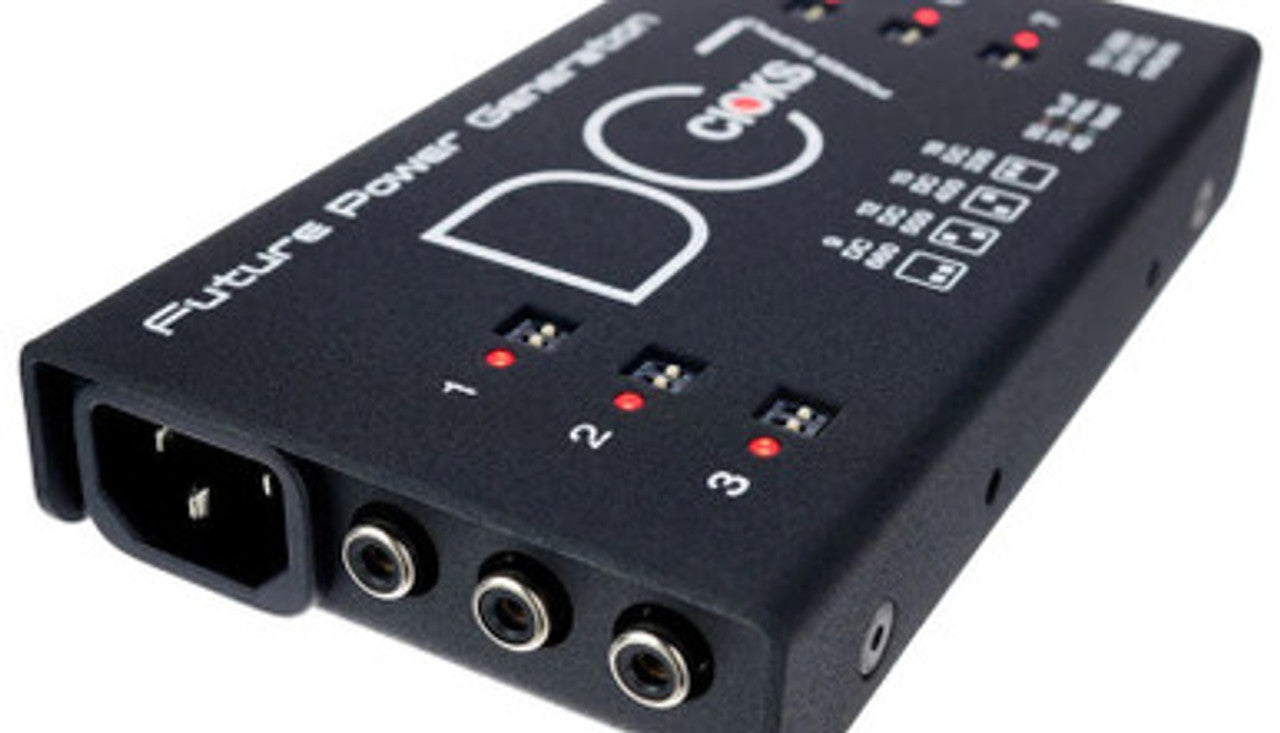

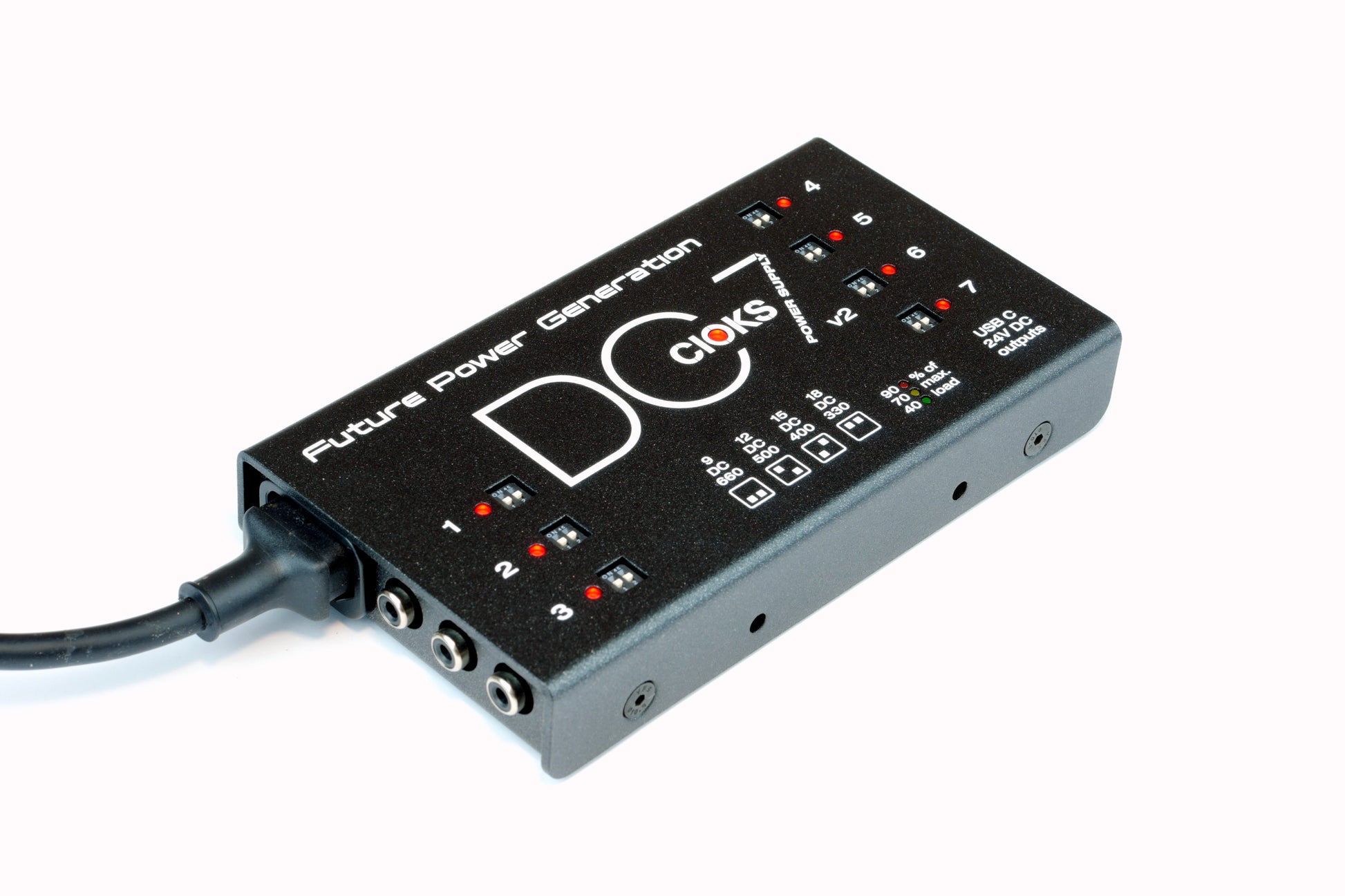

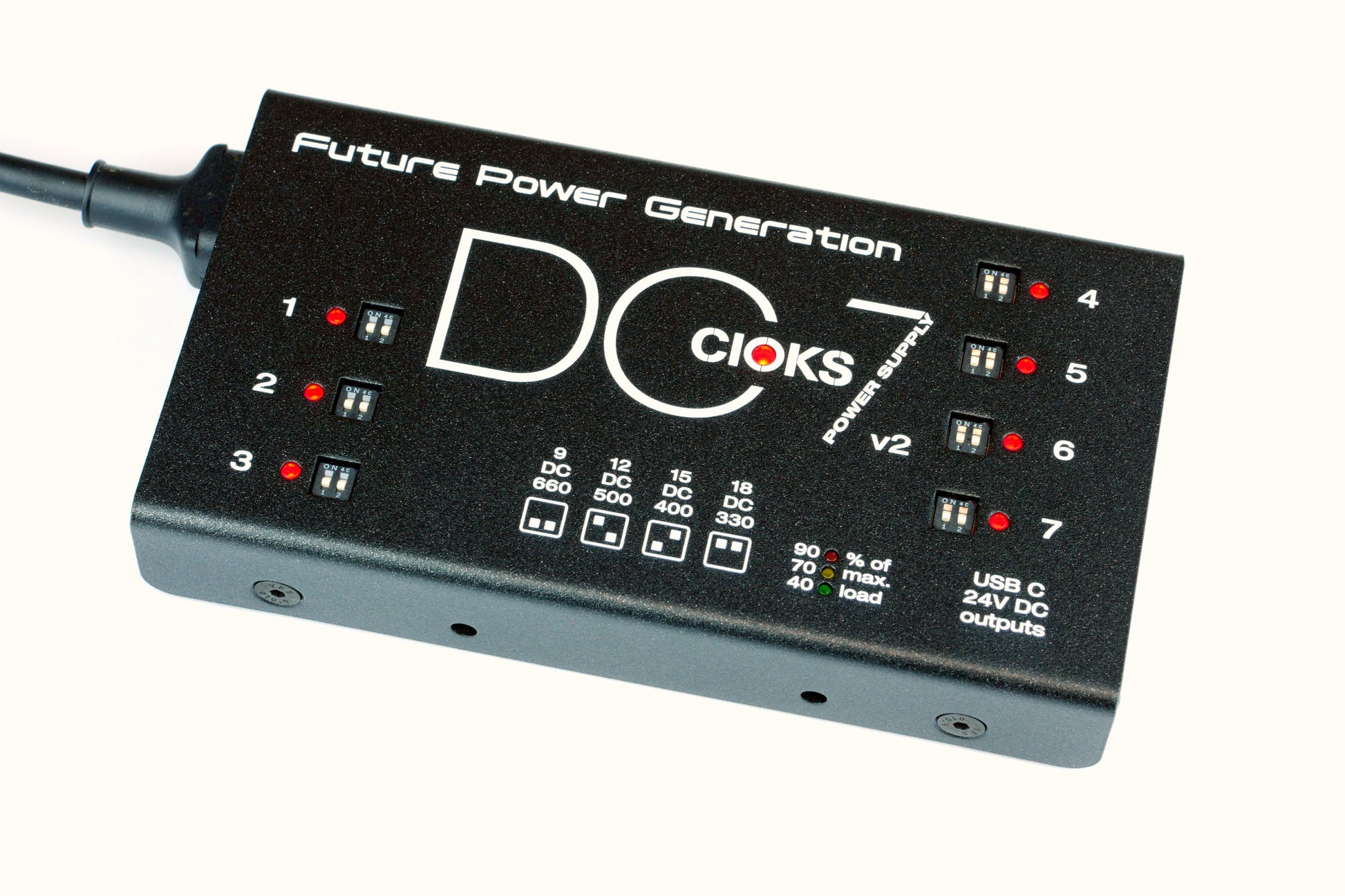

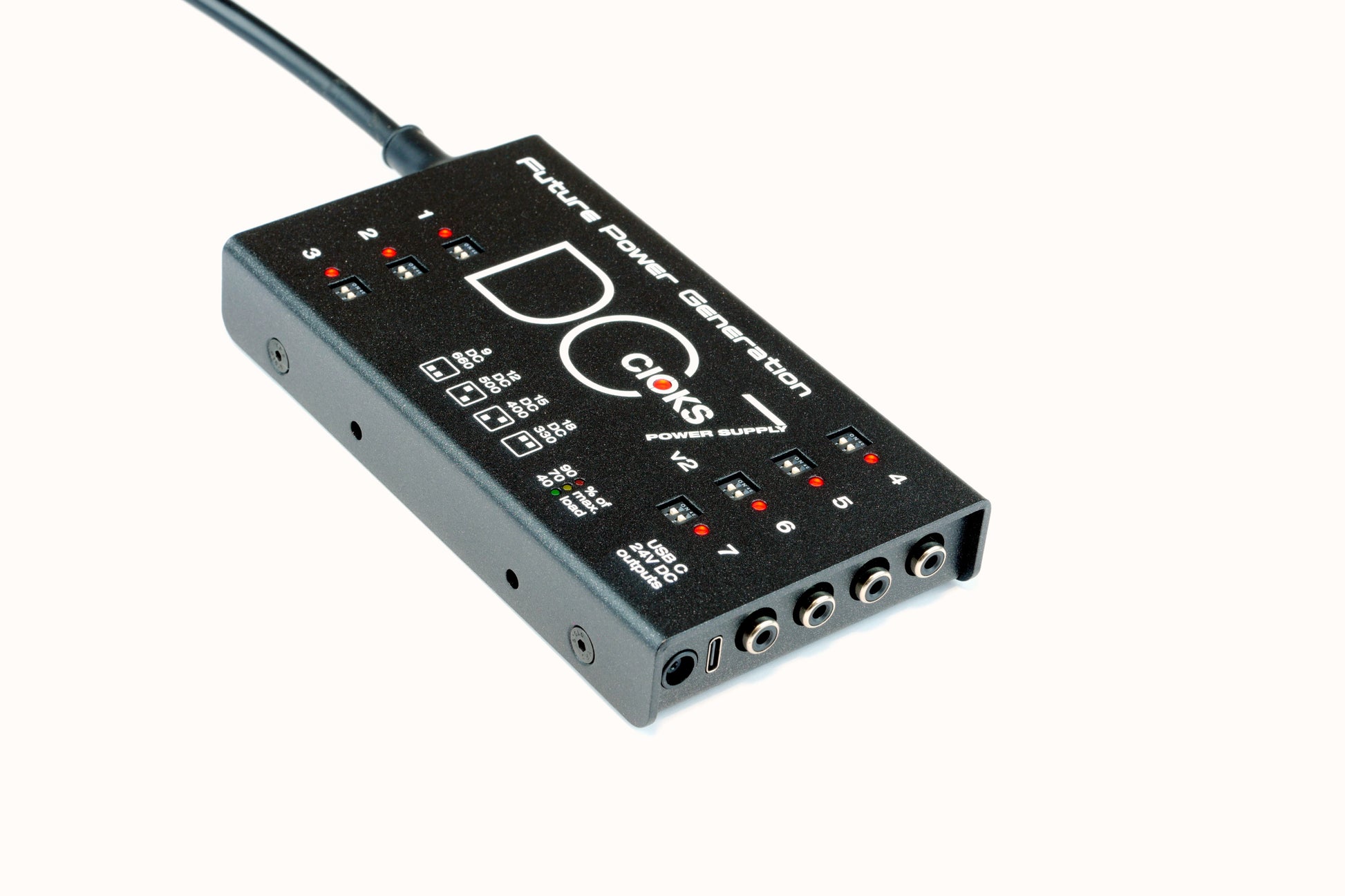

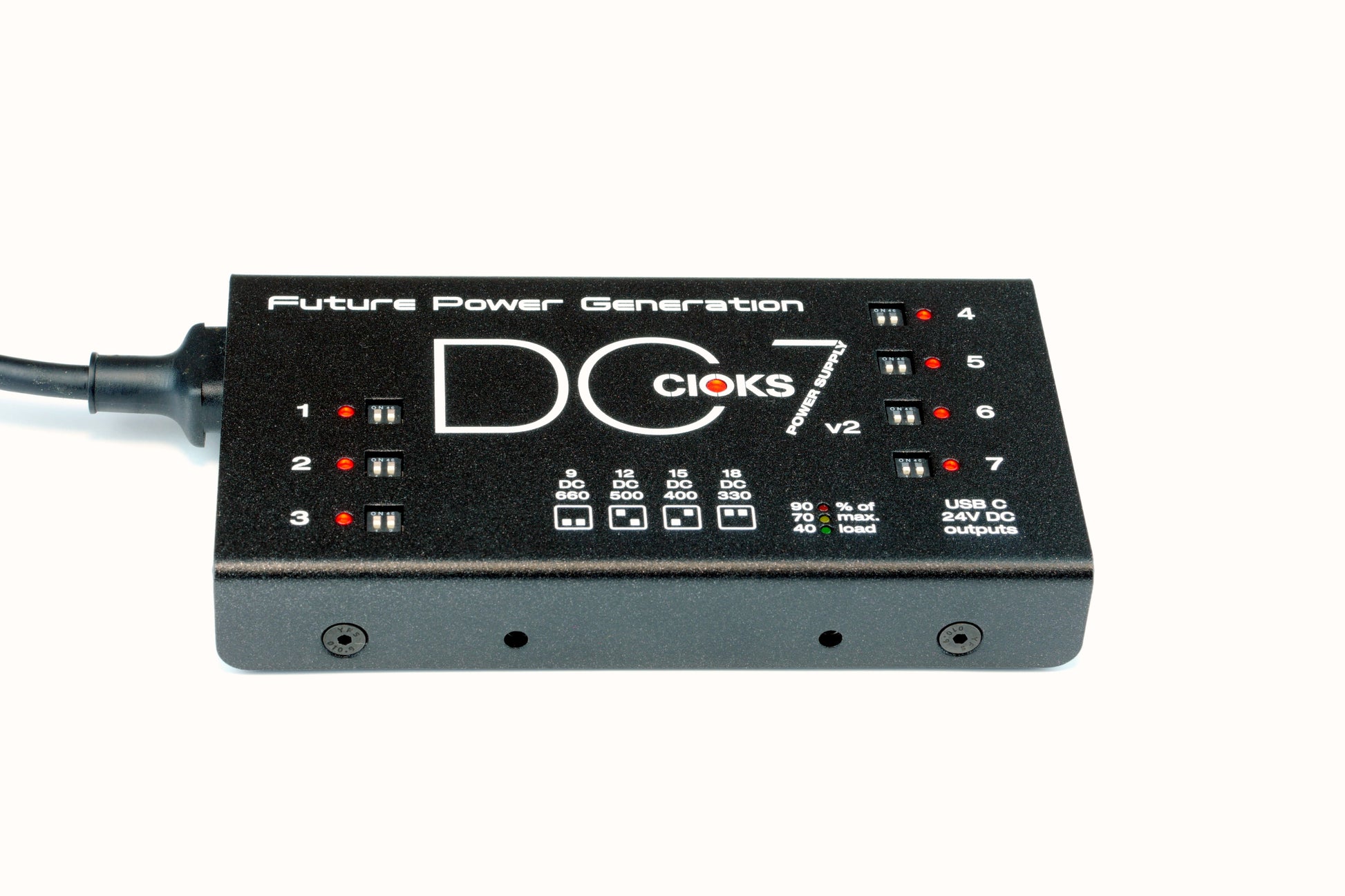

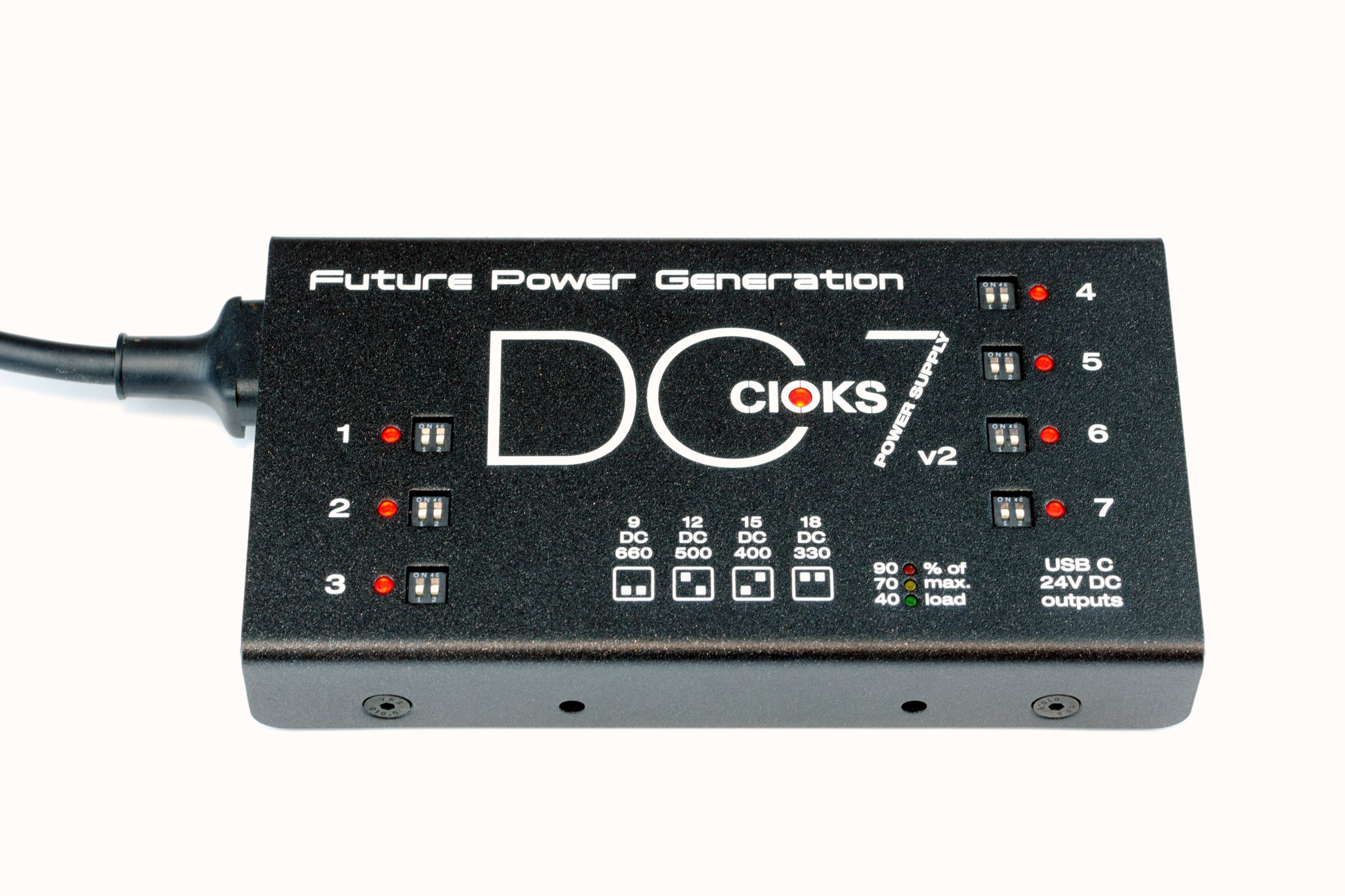

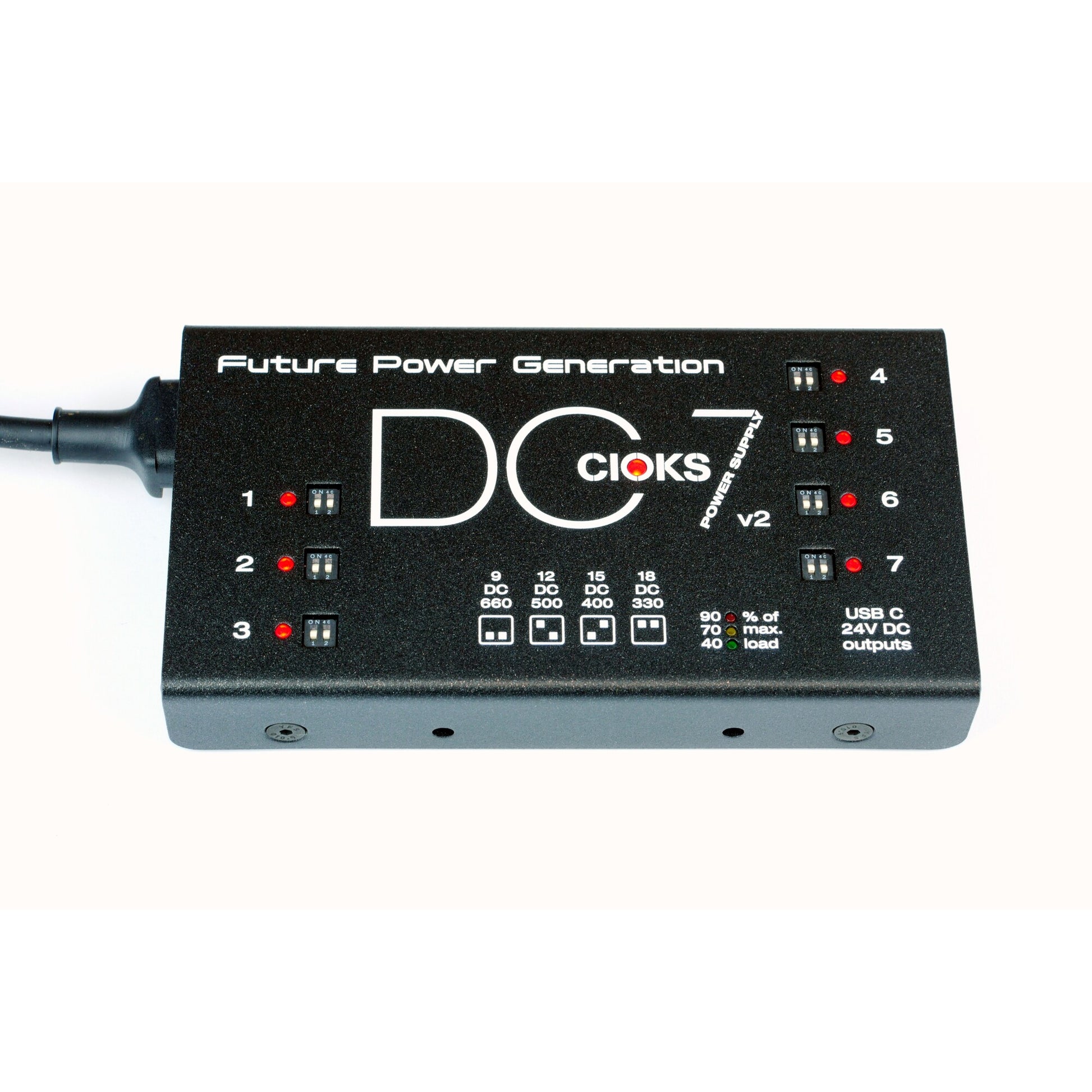

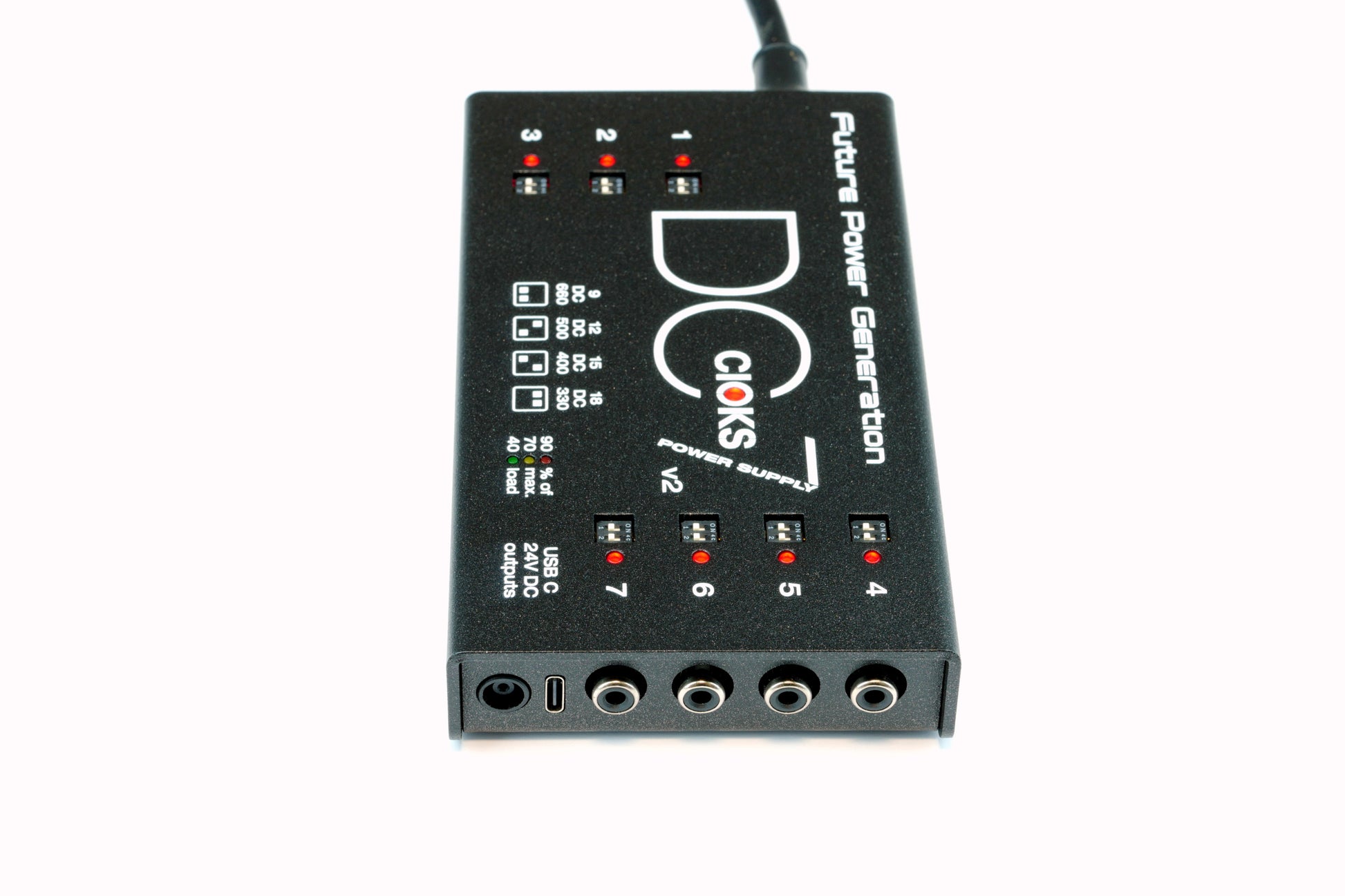

The CIOKS DC7 v2 is an ultra-slim, professional-grade isolated pedalboard power supply designed to power everything from traditional analogue effects to the most demanding modern digital processors. Building on the award-winning DC7 platform, Version 2 introduces a higher-powered USB-C output, improved efficiency, and cooler operation while maintaining its remarkably compact 25.4 mm profile.
Featuring seven individually isolated outputs, each capable of delivering up to 660mA at 9V, the DC7 v2 can comfortably power high-current devices such as the Line 6 HX series, Neural DSP Quad Cortex, and other power-hungry pedals without introducing unwanted noise. Four selectable output voltages per outlet provide exceptional flexibility, while a built-in power meter and individual output indicators make monitoring your pedalboard simple.
The DC7 v2 is also designed to grow with your rig, supporting expansion via compatible CIOKS units including the CIOKS 4, CIOKS 8, and Crux for additional isolated outputs.

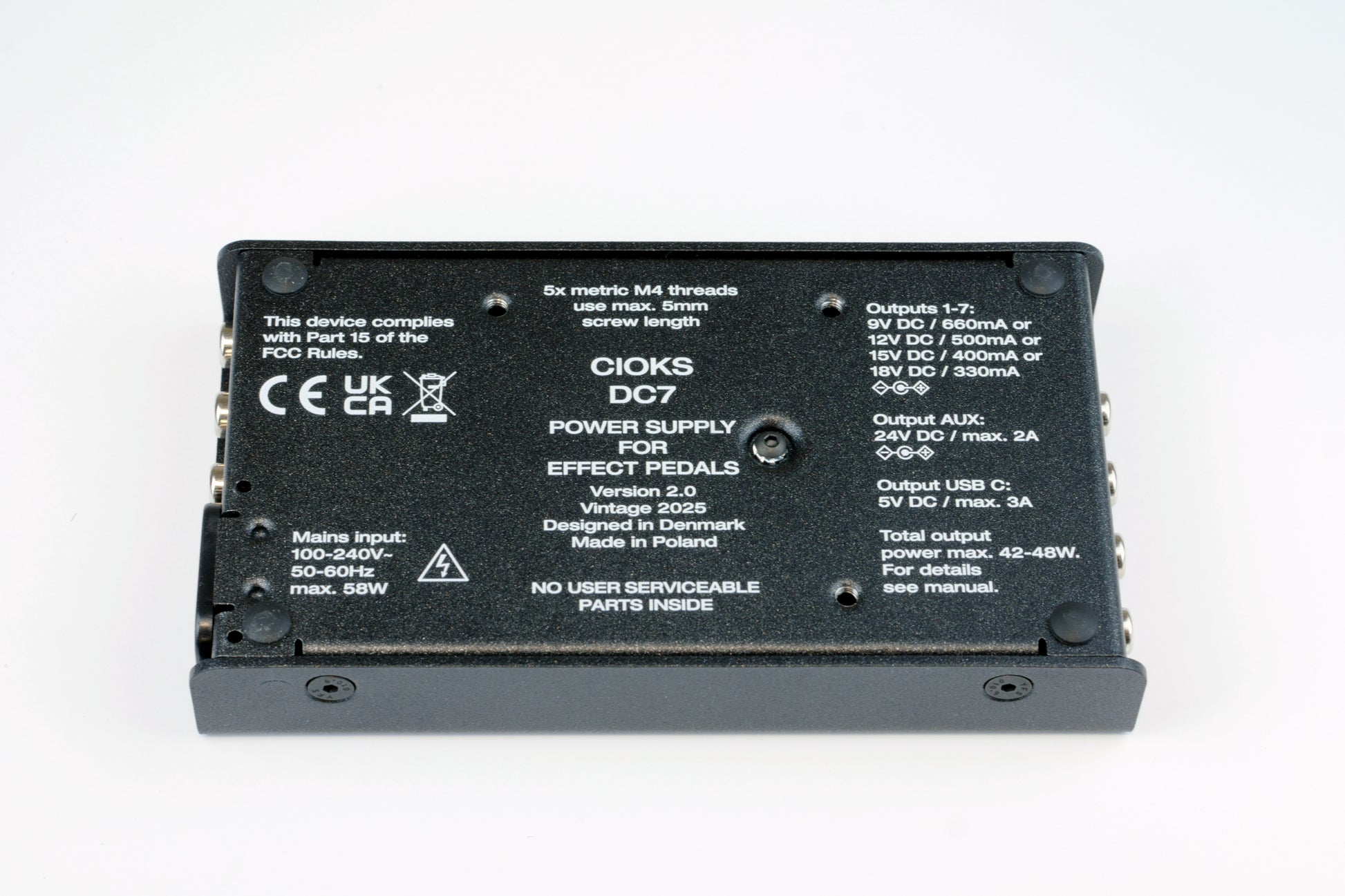

Specifications
Type: Isolated Pedalboard Power Supply
Outputs: 7 × Fully Isolated DC
Maximum Output per Outlet: 660mA @ 9V (6W)
Selectable Voltages: 9V, 12V, 15V, 18V
USB Output: USB-C, 5V / 3A (15W)
Auxiliary Output: 24V DC, 2A
Total Output Power: 48W
Power Topology: Two-Stage Switch-Mode
Noise Reduction: Multi-Stage Filtering

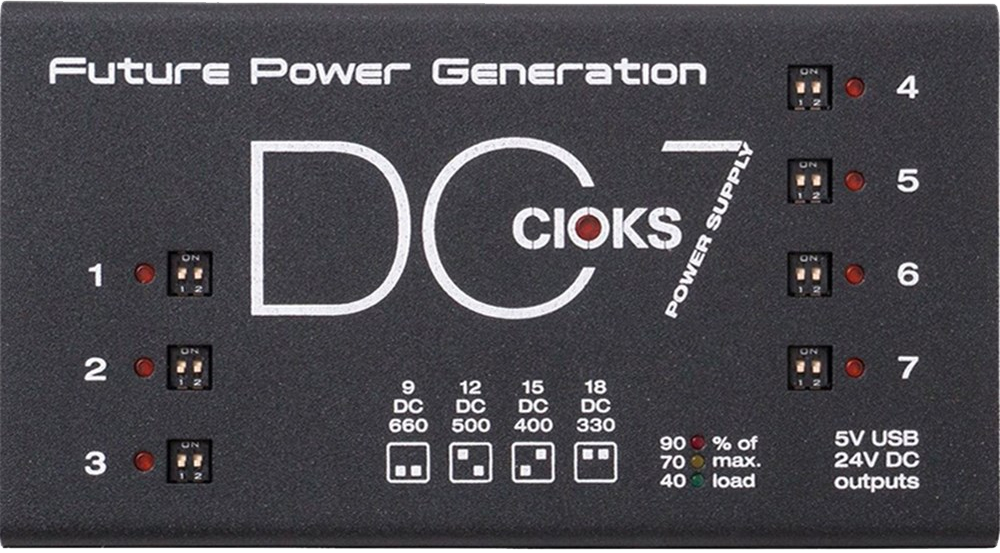

Indicators: Individual Output Current LEDs, Total Power Meter, Global Overload LED
Mains Input: 100-240V AC Universal
Expansion: Compatible with CIOKS 4, CIOKS 8, CIOKS Crux and Other 24V-Compatible Expanders
