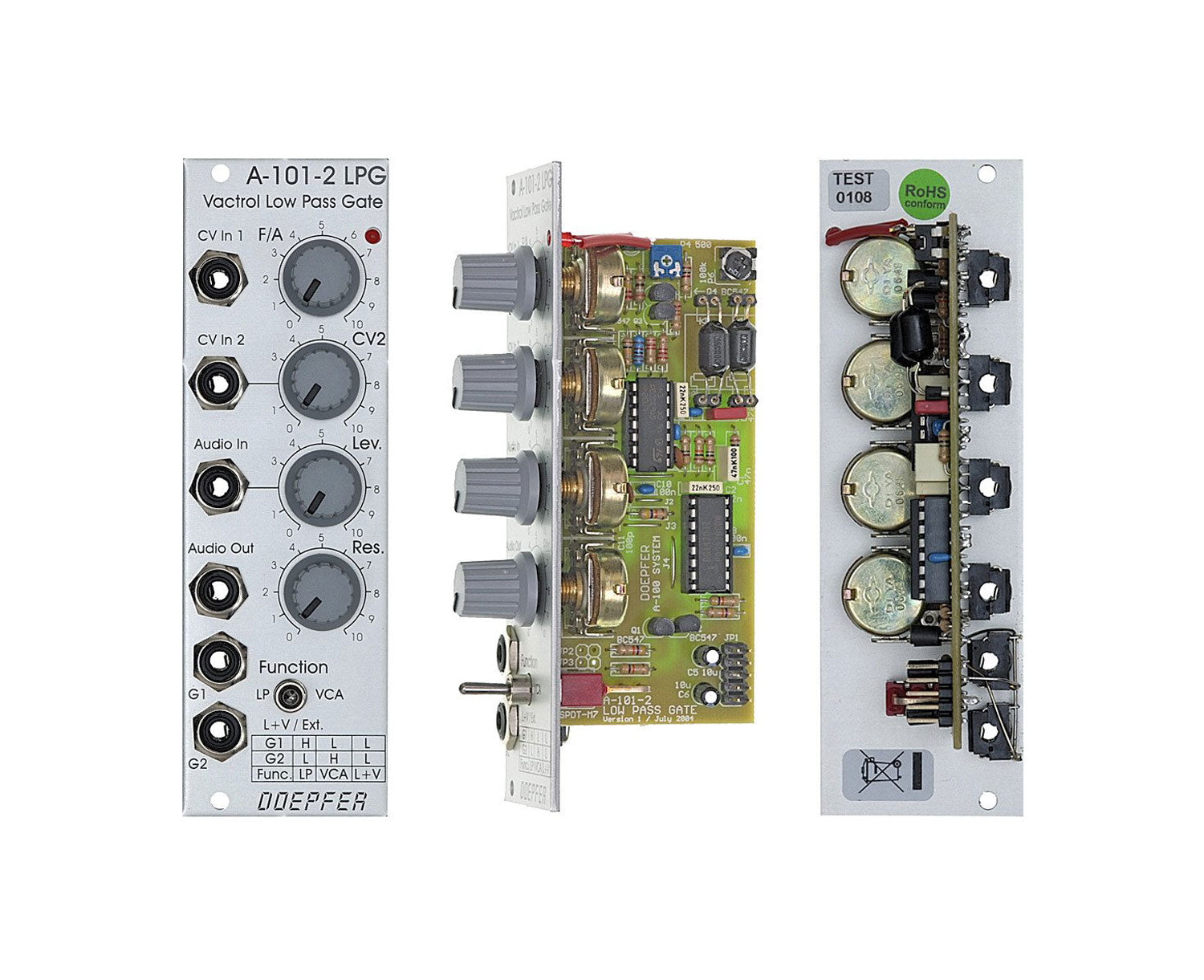

The A-101-2 Vactrol Low Pass Gate (8HP) is based on the idea of the Buchla module 292 and is a combination of low-pass filter (LP) and VCA. The frequency (in LP mode) or the amplitude (in VCA mode) can be controlled manually (F / A) and via 2 external control voltage inputs: CV1 (without an attenuator) and CV2 (with attenuator).
Brand new with warranty.
Video: https://youtu.be/pDzjCjrEjs8
Product Specs
- Item Number: 11335
- Make: Doepfer
- Model: A-101-2
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ā eurorack
- Function: Low Pass Gate Filter VCA
- Made In: Germany
- MPN: A-101-2
- EAN: 4250711110123
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 8 HP 50 mm deep
- Power*: 20 mA +12V 20 mA -12V 0 mA 5V
* User contributed details
