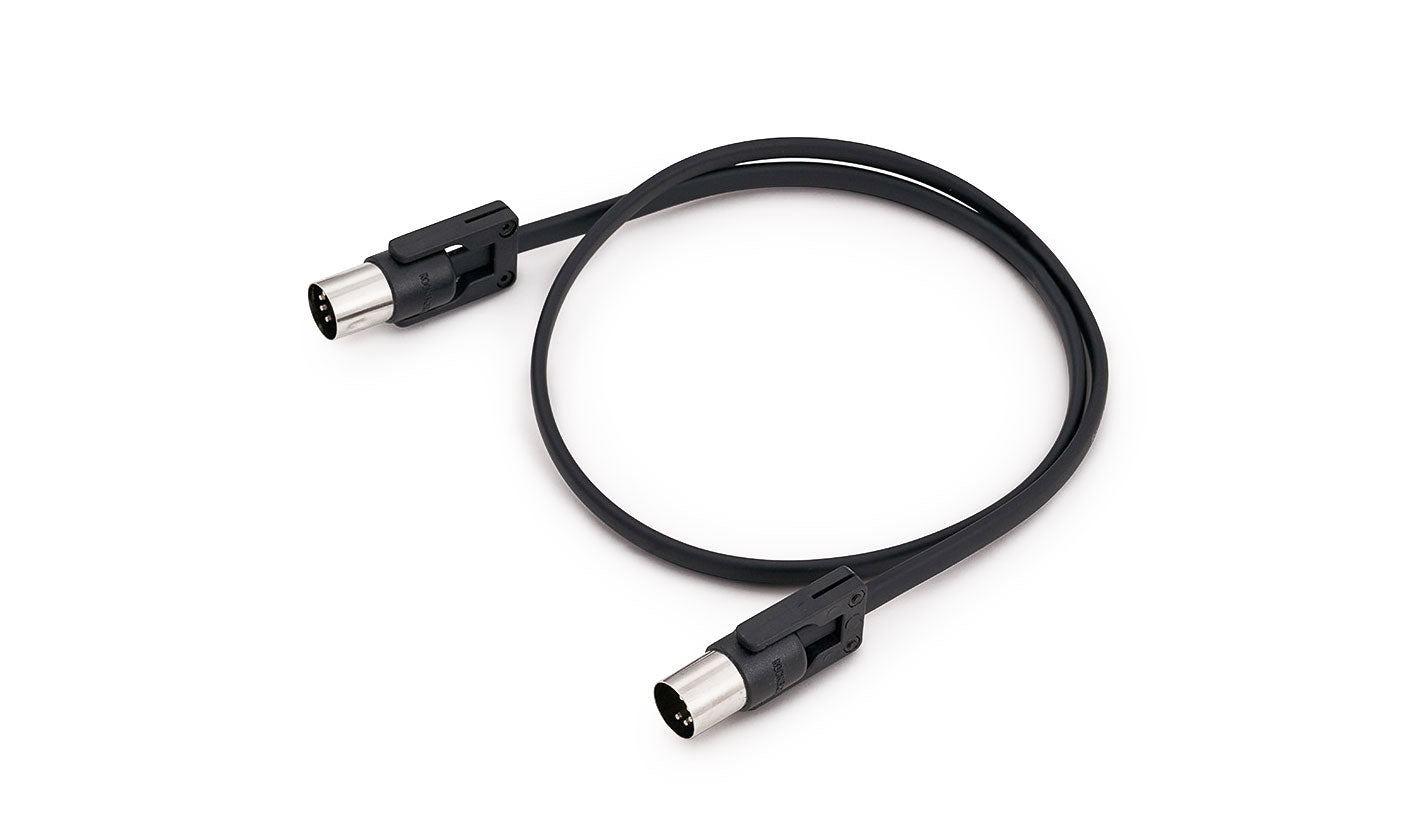

RockBoard® FlaX Plug MIDI Cables are based on the slimmed down Flat MIDI Cable design, but with an omni-directional design. They can be adjusted to be either straight or angled to the left as well as to the right, and locked into place using two hex key set screws. Anything goes with the RockBoard® FlaX Plug MIDI Cables.
flat MIDI cables with rectangular profile with omni-directional, lockable compact plugs

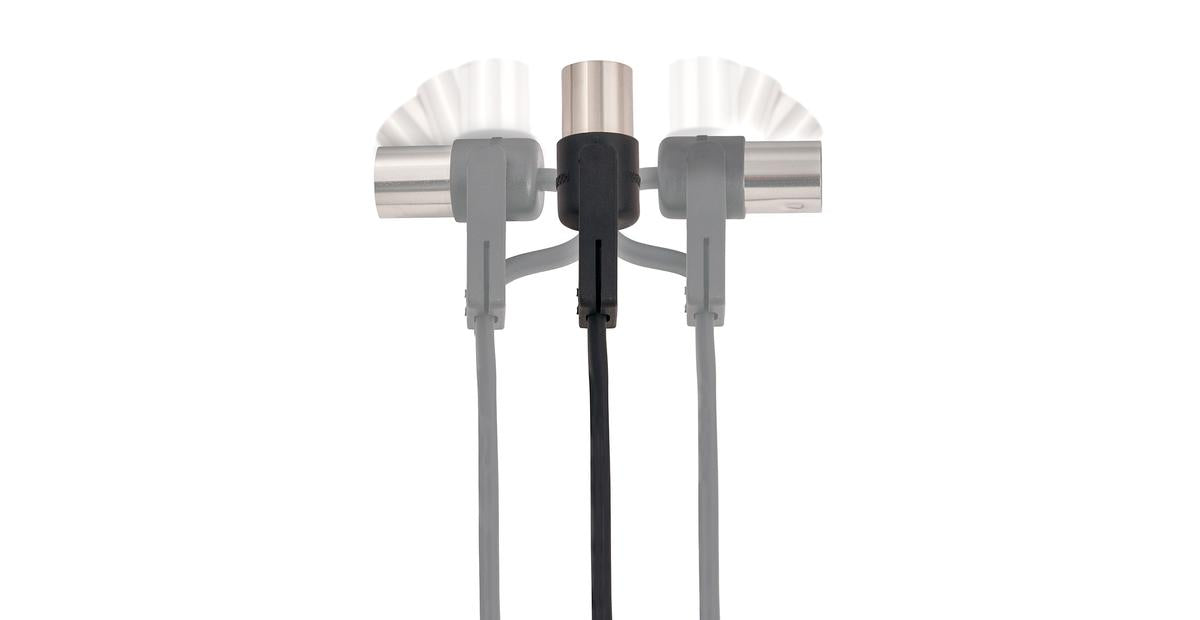

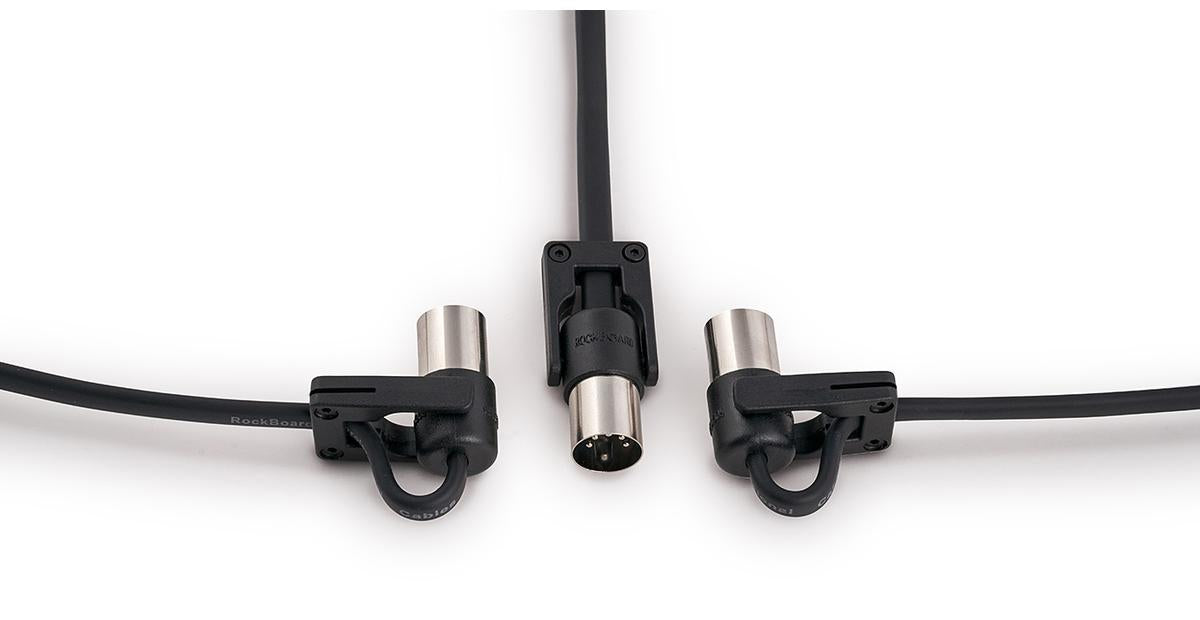

plug orientation alterable from straight to angled to the left or right
orientation lockable via 1.5 mm hex key wrench (not included)
compact design saves pedalboard real estate
flat rectangular cable prevents cable breakage, cable jams and keeps your setup tidy
suitable for Clock/SYNC Capabilities & Phantom Power
flexible oxygen free copper conductors 5 x 7 x 0.12 mm
DIN 5-pin connectors
max. rated current 1A
outer PVC insulation
operating temperature -20° C to +60° C
outer dimensions cable (W x H) 6.5 x 3.5 mm (rectangular)
plug dimensions straight (L x W x H) 33 x 20 x 15 mm / 1 5/16" x 13/16" x 9/16"
plug dimensions angled (L x W x H) 33 x 20 x 20 / 1 5/16" x 13/16" x 13/16"
length 60 cm / 23 5/8"
Product Specs
- Item Number: 11163
- Make: Warwick
- Model: Rockboard FlaX Plug 60cm MIDI Cable Black
- Condition: Brand New
- Finish: Black
- Categories: accessories ⇒ cables
- Made In: China
- MPN: WR-FLATXM-60-BK
- EAN: 4033685503326
