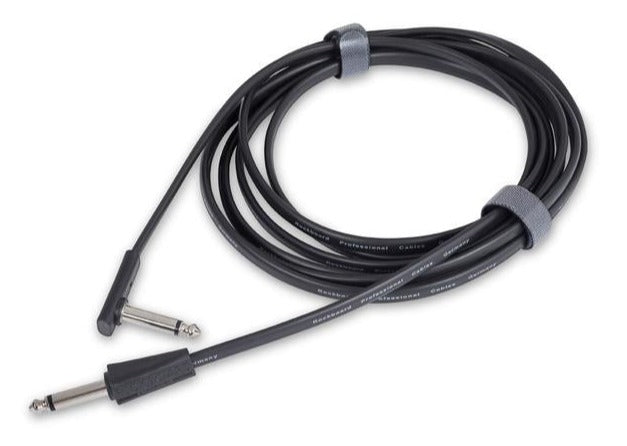

The new RockBoard flat lead cables are extra flat and flexible. They feature a slim rectangular body, designed to prevent cable tangle as well as lead breakage. Their super compact plugs were conceived to be as space saving and unobtrusive as possible.
Features:
Flat instrument lead cable
Length: 300 cm (118.11”)
Super small connectors
6.3 mm mono audio plugs (angled/straight)
Operating Temperature: -15º C to +70° C
Flexible copper conductor: 20 x 0.12 mm
Signal Insulation: PE (polyethylene)
Flexible Twisted copper shielding: 34 x 0.12 mm
Outer Insulation: PVC
Capacitance Cond./Shield: < 10 pF/decimeters
Conductor Resistance: < 10 mOhm/decimeters
Outer dimensions cable (W x H): 7 x 3 mm (rectangular)
Outer dimensions plugs (W x H): 12.5 x 7.5 mm (angled), 12,5 x 12,5 mm (straight)
Product Specs
- Item Number: 11144
- Make: Warwick
- Model: Rockboard 300cm Flat Instrument Cable Straight/Angle
- Condition: Brand New
- Finish: Black
- Categories: accessories ⇒ cables
- Made In: China
- MPN: WR-FLATI-300-SA
- EAN: 4033685502534
